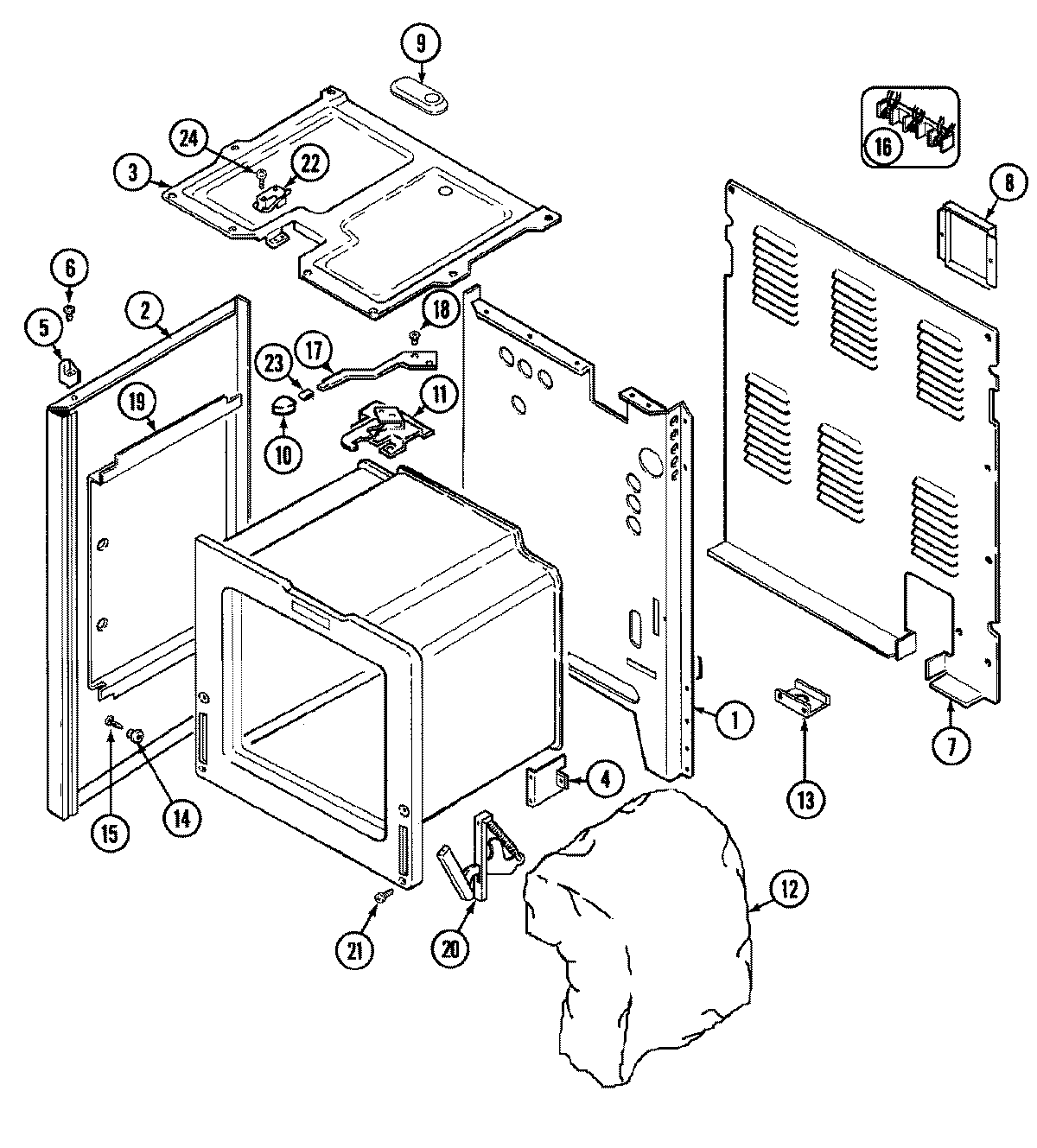

FCE10500W 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 74002334
1	MAY 7101P337-60
1	MAY 3604F218-51
2	MAY 74001884
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	COVER, VENT
10	MAY 7701P153-60
11	MAY 74003032
11	MAY 4804F028-60
11	MAY 8002P025-60
11	MAY 7101P280-60
11	W10828565 Whirlpool Screw
12	MAY 74001800
12	MAY 4804F036-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	W11693756 Whirlpool Screw Assembly
15	MAY 74001449
16	WPW10245259 Whirlpool Terminal Block
17	MAY 74001725
17	MAY 74002973
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P056-60
20	WP74011140 Whirlpool Oven Hinge
21	SCREW (10-24X5/16-NI)
22	MAY 74001708
22	MAY 74001823
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
23	MAY 7112P112-60
24	MAY 7101P130-60
25	SCREW
25	MAY 7111P020-60
