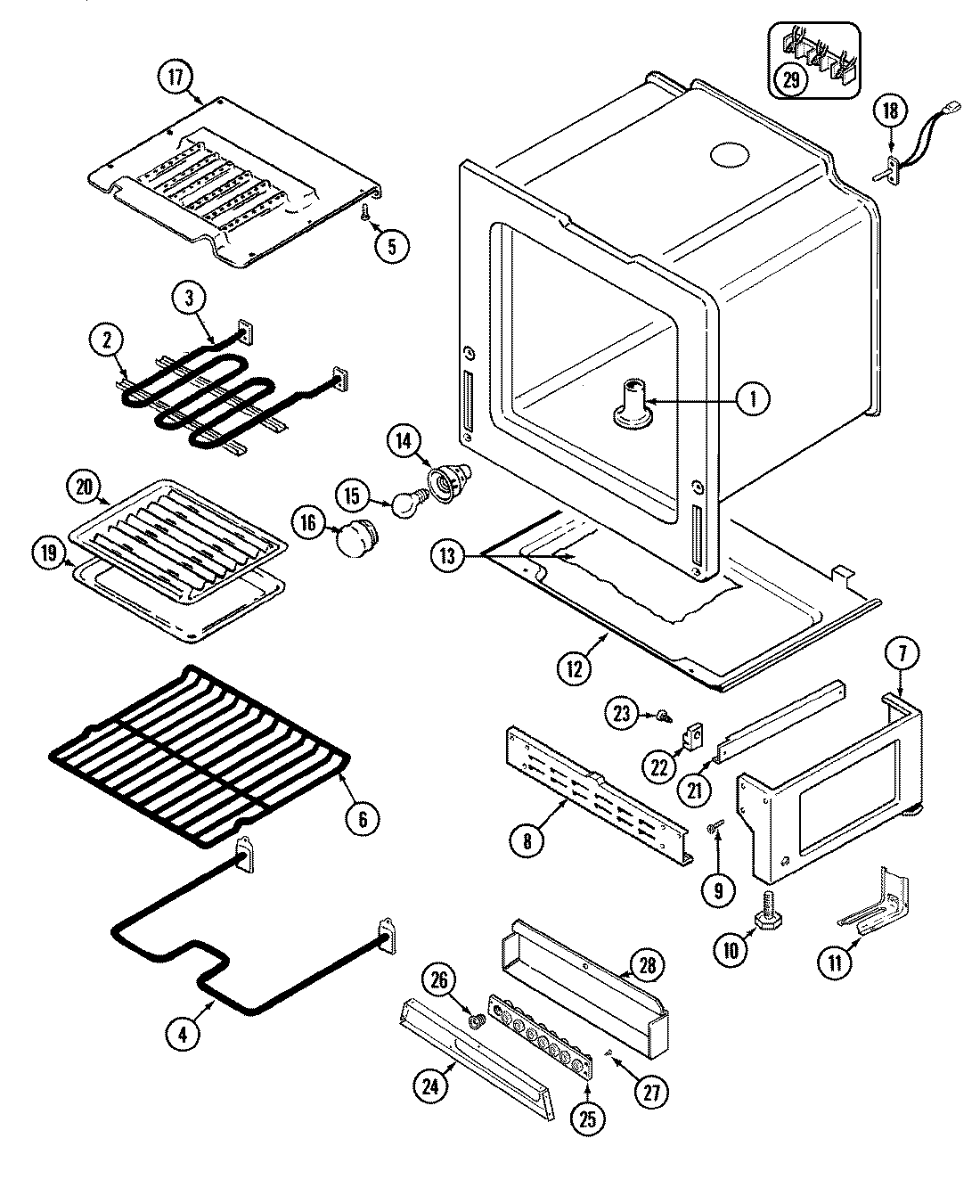

FCE10500WC 04 – OVEN/BASE

FCE10500WC 04 – OVEN/BASE

Products

PositionProduct
1MAY 8026P019-60
2WP400021-1 Whirlpool Screw
2MAY 3807F387-45
3WPY04000059 Whirlpool Bake Element
4MAY Y04000058
6MAY 74002105
7MAY 12001343
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
10MAY 74001311
11MAY 7101P289-60
11MAY 3801F218-51
12SCREW
12MAY 3804F112-51
13MAY 8312P058-60
14WP7407P182-60 Whirlpool Lamp
15RANGE ONLY 40W 120V APPL BULB
16WP9781049 Whirlpool Light Lens
17MAY 3601F237-47
18MAY 7430P010-60
19MAY 3401F014-19
204396923 Whirlpool Broil Pan Set Gray Porcelain
21MAY 3406F028-51
22MAY 8004P033-60
23MAY 7101P334-60
24MAY 74001339
25MAY 7401P031-60
26MAY 7416P004-60
26MAY 7416P006-60
26MAY 7416P005-60
27MAY 7101P068-60
28MAY 4005F445-51
29WPW10245259 Whirlpool Terminal Block
