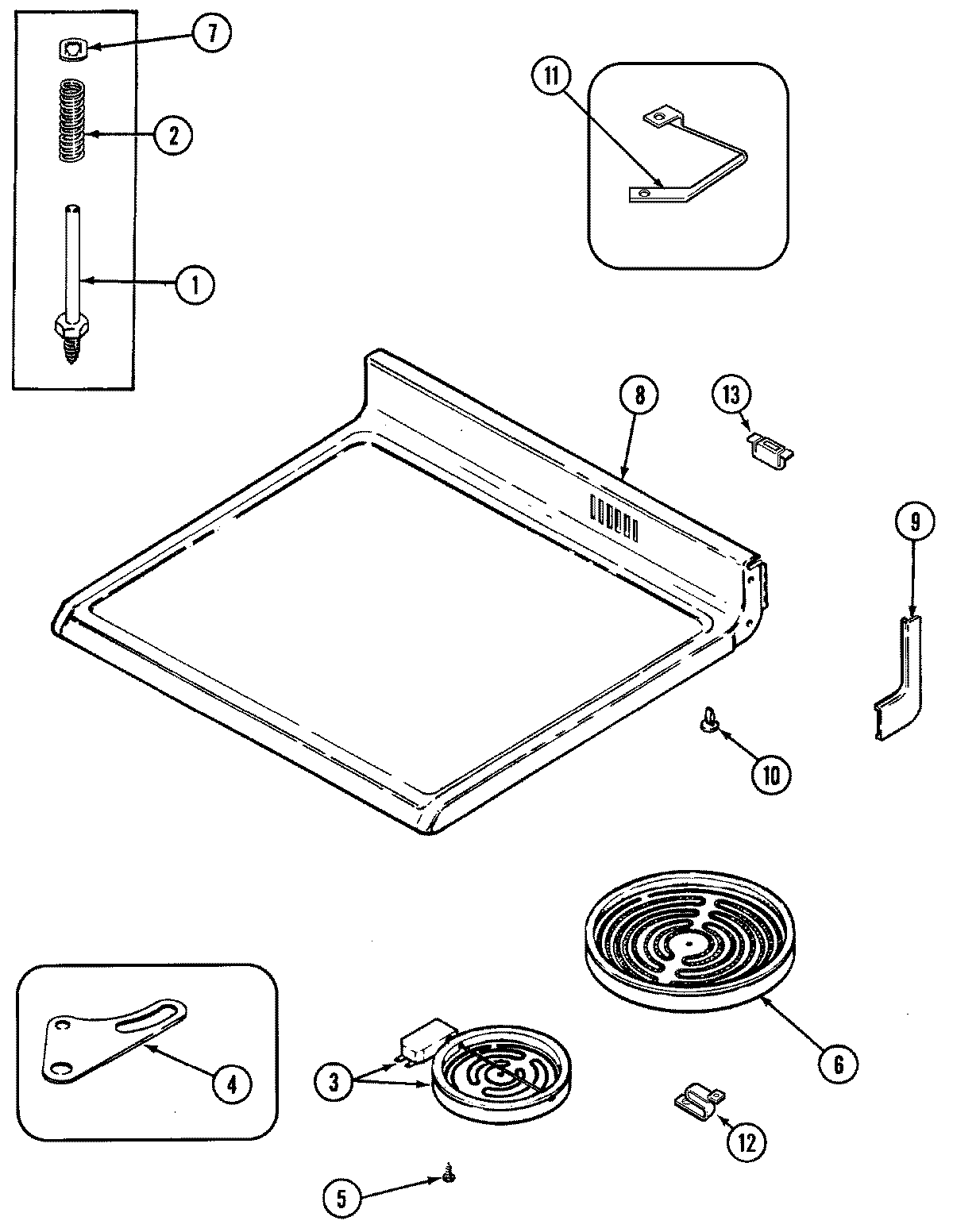

FCE30500A 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7113P013-60
2	MAY 7803P066-60
3	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
3	MAY Y04000064
4	MAY 3819F013-45
5	SCREW
6	MAY 74002652
6	MAY Y04000063
6	W10823707 Whirlpool Range Radiant Surface Element 8"
7	MAY 7112P091-60
8	MAY 74002142
8	MAY 74003098
8	SCREW
9	MAY 7746P036-60
9	MAY 7746P037-60
9	WP3195558 Whirlpool Nut
10	MAY 74001428
11	MAY 74001437
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	8004P093-60 Whirlpool Support C
13	MAY 74003053
14	WA906B Whirlpool Cooktop Glass Scraper
14	MAY 8308P002-60
