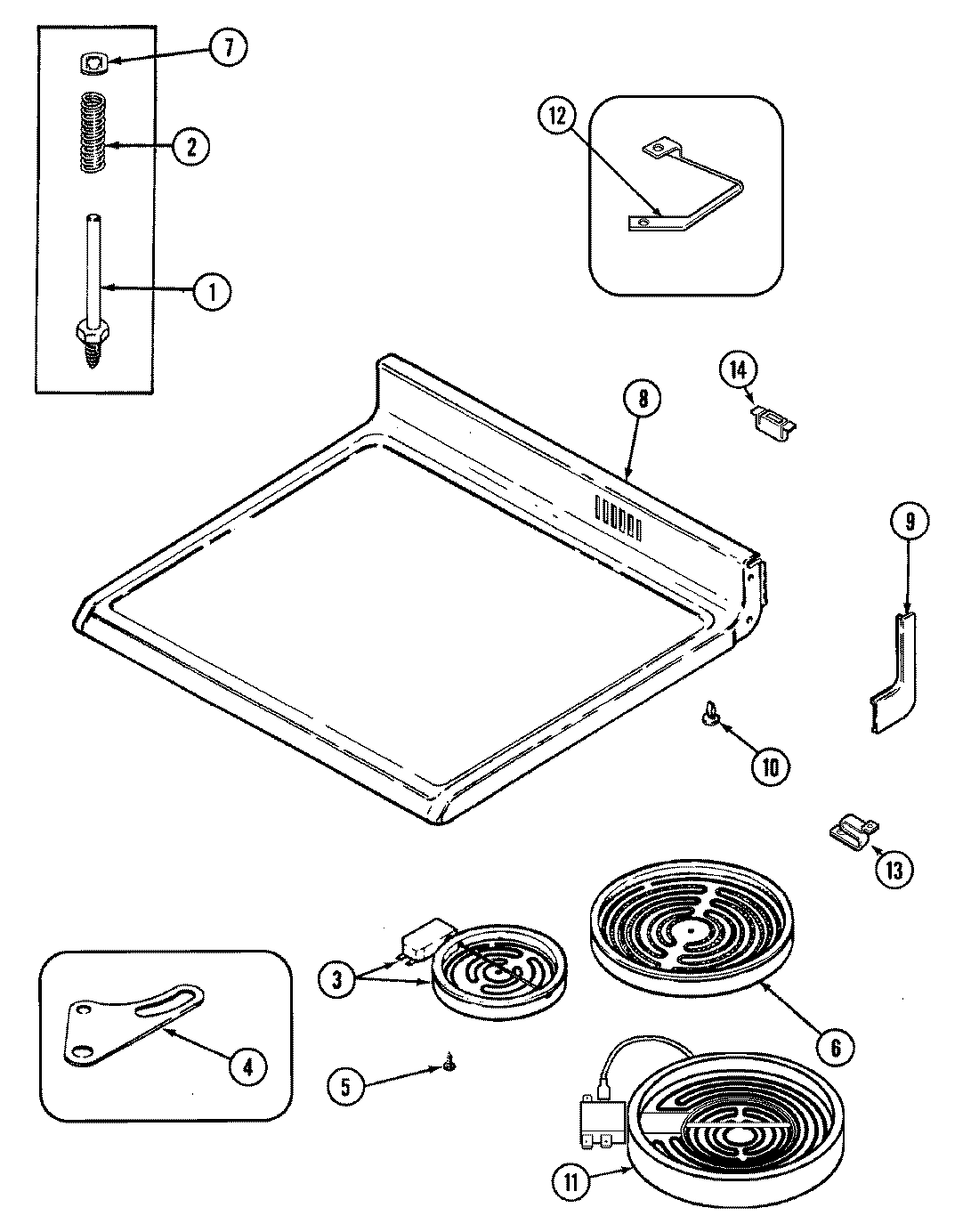

FCE30510B 05 – TOP ASSEMBLY

FCE30510B 05 – TOP ASSEMBLY

Written by

in

FCE30510B 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7113P013-60
2MAY 7803P066-60
3MAY Y04000064
3W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
4MAY 3819F013-45
5SCREW
6W10823707 Whirlpool Range Radiant Surface Element 8"
6MAY Y04000063
6MAY 74002652
7MAY 7112P091-60
8MAY 74002150
8MAY 74003100
8SCREW
9MAY 7746P031-60
9MAY 7746P030-60
9WP3195558 Whirlpool Nut
10MAY 74001428
11MAY 74002176
11W10823703 Whirlpool Surface Element
11MAY 74002667
12MAY 74001437
12NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
138004P093-60 Whirlpool Support C
14MAY 74003053
15WA906B Whirlpool Cooktop Glass Scraper
15MAY 8308P002-60
