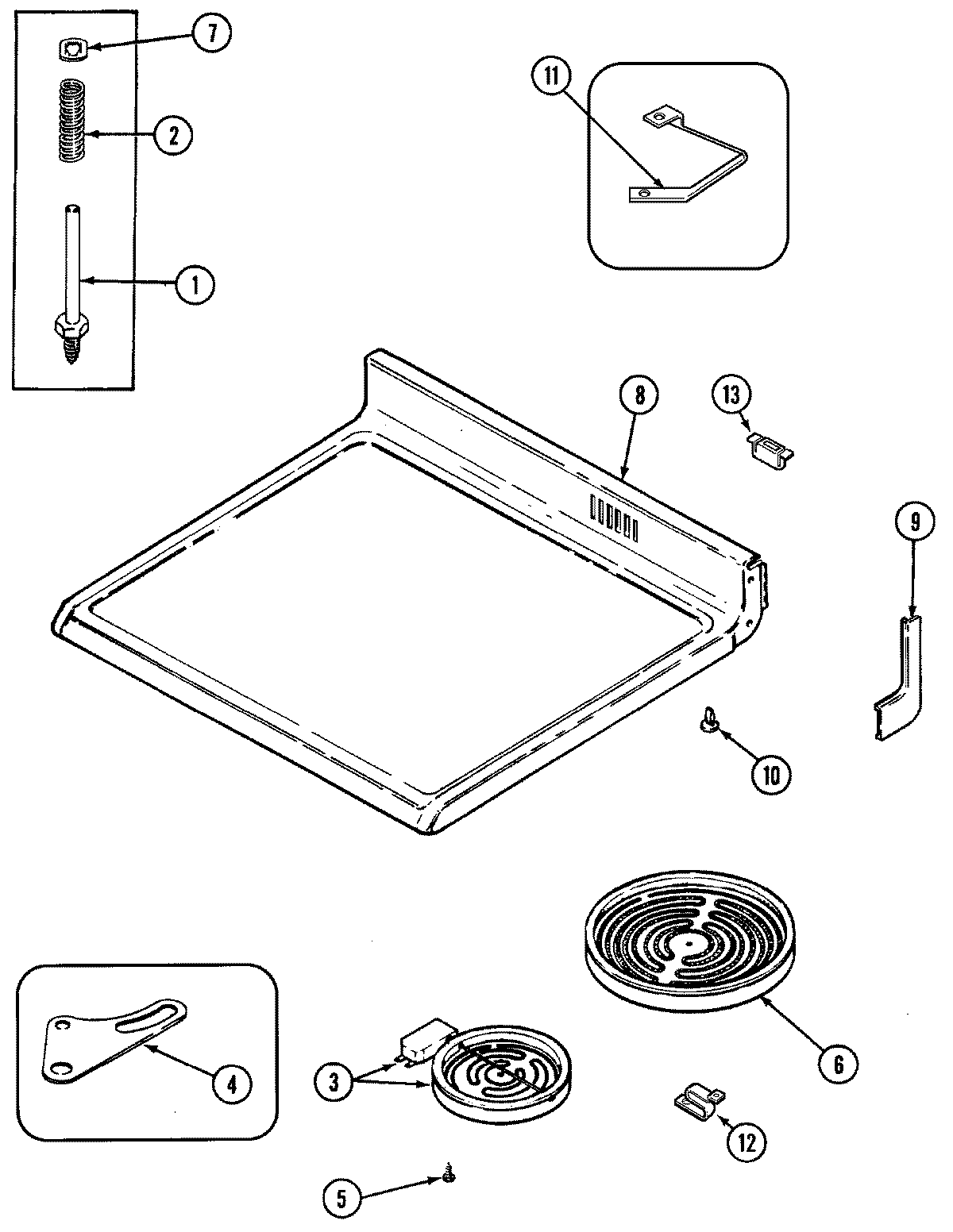

FCE30600A 05 – TOP ASSEMBLY

FCE30600A 05 – TOP ASSEMBLY

Written by

in

FCE30600A 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7113P013-60
2MAY 7803P066-60
3W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
3MAY Y04000064
4MAY 3819F013-45
5SCREW
6MAY 74002652
6MAY Y04000063
6W10823707 Whirlpool Range Radiant Surface Element 8"
7MAY 7112P091-60
8MAY 74002142
8MAY 74003098
8SCREW
9MAY 7746P036-60
9MAY 7746P037-60
9WP3195558 Whirlpool Nut
10MAY 74001428
11MAY 74001437
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
128004P093-60 Whirlpool Support C
13MAY 74003053
14WA906B Whirlpool Cooktop Glass Scraper
14MAY 8308P002-60
