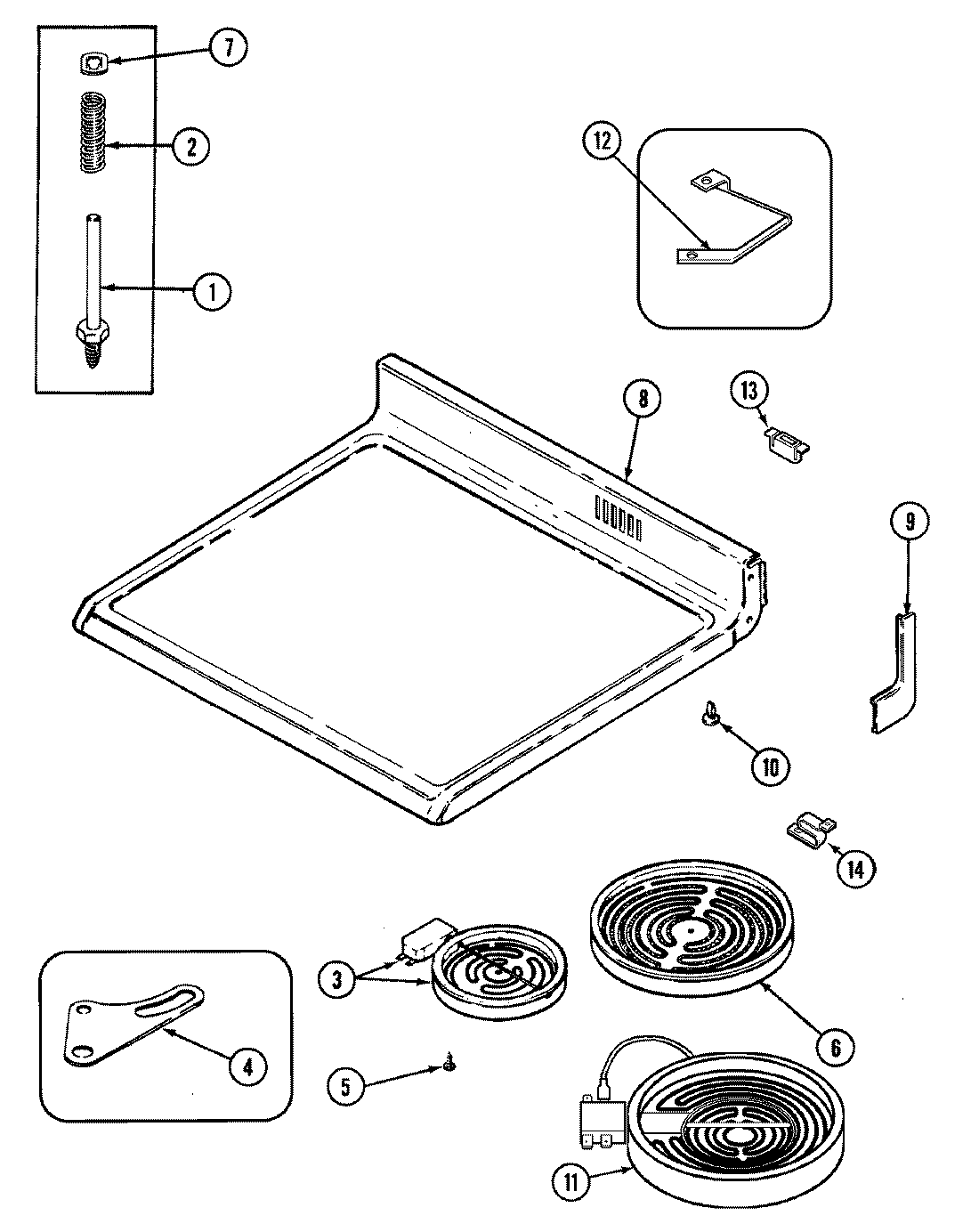

FCE30610A 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7113P013-60
2	MAY 7803P066-60
3	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
3	MAY Y04000064
4	MAY 3819F013-45
5	SCREW
6	MAY Y04000063
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 74002652
7	MAY 7112P091-60
8	MAY 74002149
8	SCREW
8	MAY 74003099
9	MAY 7746P037-60
9	MAY 7746P036-60
9	WP3195558 Whirlpool Nut
10	MAY 74001428
11	W10823703 Whirlpool Surface Element
11	MAY 74002176
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	MAY 74001437
13	MAY 74003053
14	8004P093-60 Whirlpool Support C
15	WA906B Whirlpool Cooktop Glass Scraper
15	MAY 8308P002-60
