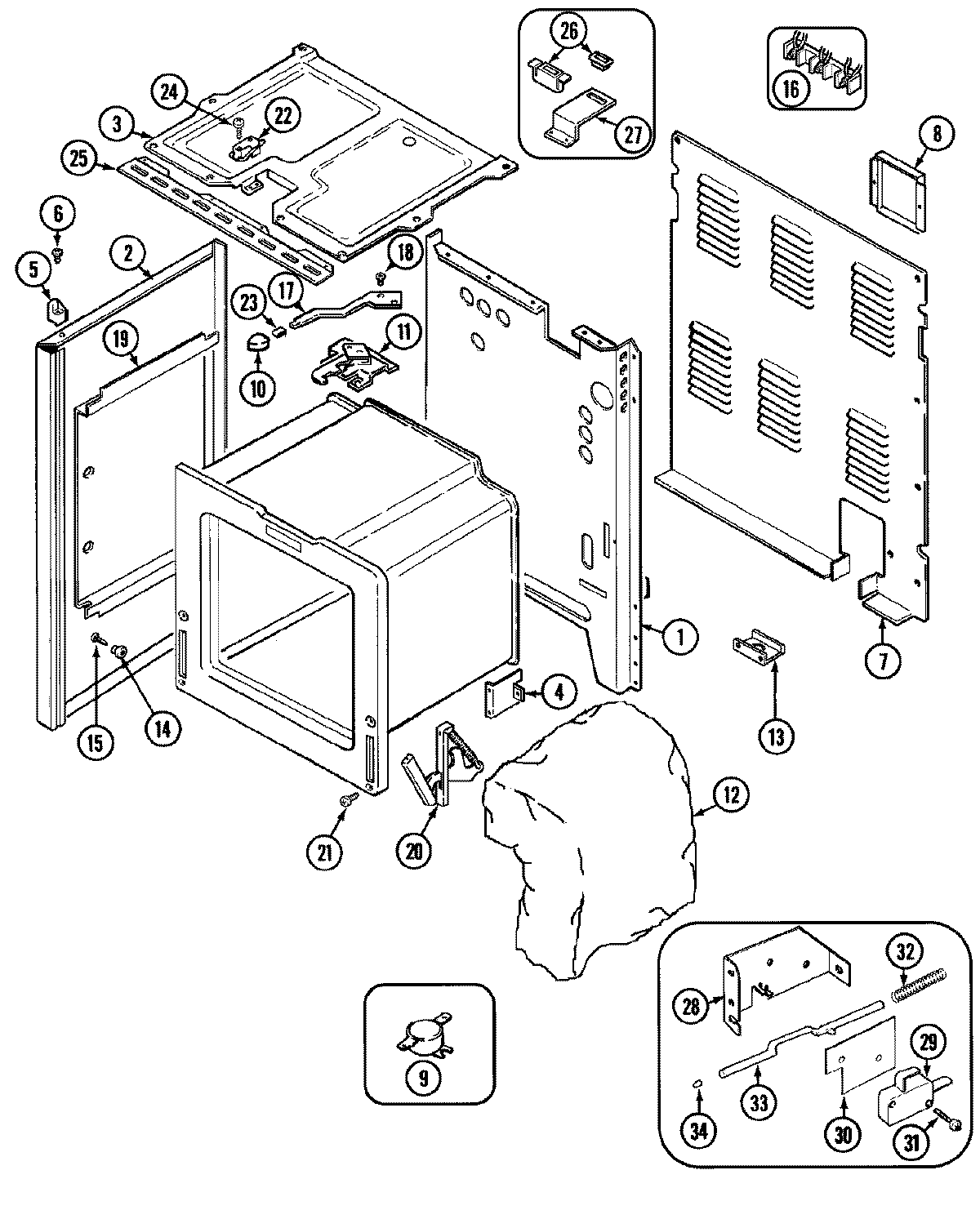

| 1 | MAY 3604F218-51 |
| 1 | MAY 74001772 |
| 2 | MAY 74001884 |
| 2 | MAY 7003P067-60 |
| 3 | MAY 74001695 |
| 3 | MAY 74001753 |
| 4 | SUPPORT,OVEN REAR |
| 5 | SPACER, MAIN TOP (LT) |
| 5 | SPACER, MAIN TOP (RT) |
| 6 | MAY 7101P313-60 |
| 7 | MAY 4005F455-51 |
| 8 | MAY 4005F427-51 |
| 9 | MAY 7403P160-60 |
| 10 | MAY 7701P153-60 |
| 11 | MAY 8002P025-60 |
| 11 | MAY 4804F028-60 |
| 11 | MAY 7101P280-60 |
| 11 | MAY 74003032 |
| 11 | W10828565 Whirlpool Screw |
| 12 | MAY 74001800 |
| 12 | MAY 4804F036-60 |
| 13 | MAY 3605F174-51 |
| 14 | MAY 8004P024-60 |
| 15 | MAY 74001449 |
| 15 | W11693756 Whirlpool Screw Assembly |
| 16 | WPW10245259 Whirlpool Terminal Block |
| 17 | MAY 74001725 |
| 17 | MAY 74002973 |
| 18 | SCREW, LEVER |
| 19 | SCREW |
| 19 | MAY 3804F103-51 |
| 20 | WP74011140 Whirlpool Oven Hinge |
| 20 | MAY 7106P056-60 |
| 21 | SCREW (10-24X5/16-NI) |
| 22 | MAY 74001708 |
| 22 | MAY 74001999 |
| 23 | MAY 7112P112-60 |
| 24 | MAY 7101P130-60 |
| 25 | MAY 3801F305-80 |
| 26 | MAY 7407P106-60 |
| 26 | MAY 74003053 |
| 27 | MAY 3801F312-45 |
| 27 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 28 | BRACKET, SWITCH ACTUATOR |
| 29 | MAY 74001802 |
| 30 | MAY 74001872 |
| 31 | MAY 7101P330-60 |
| 33 | MAY 74001630 |
| 34 | MAY 74001631 |
