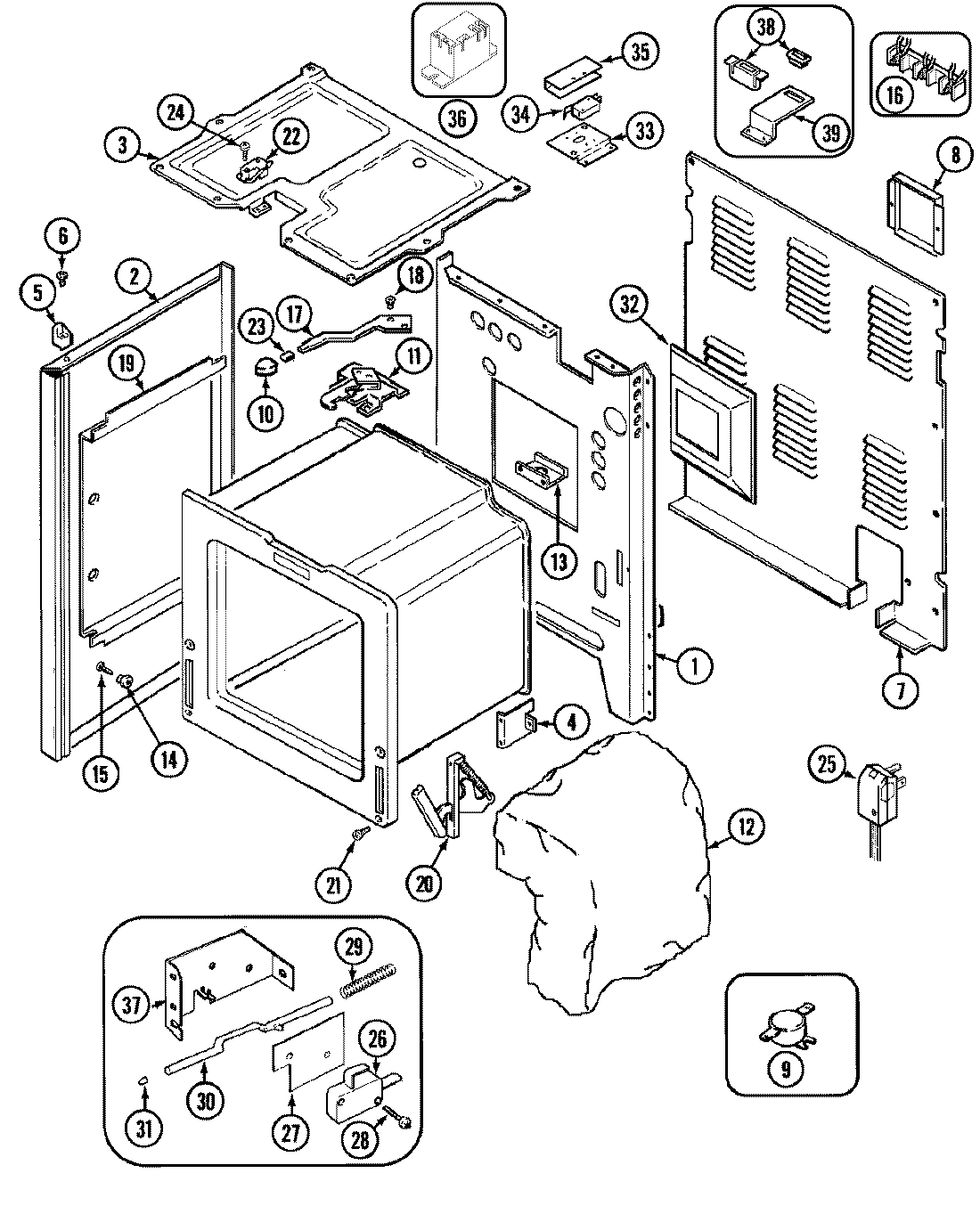

FCE30610WC 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 3604F218-51
2	MAY 74001884
3	MAY 74001695
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 7701P153-60
11	MAY 7101P280-60
11	MAY 4804F028-60
11	MAY 8002P025-60
12	MAY 74001800
12	MAY 4804F036-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
15	W11693756 Whirlpool Screw Assembly
16	WPW10245259 Whirlpool Terminal Block
17	MAY 74001725
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P056-60
21	SCREW (10-24X5/16-NI)
22	MAY 74001708
23	MAY 7112P112-60
24	MAY 7101P130-60
25	MAY 7402P050-60
26	MAY 74001802
27	MAY 74001872
28	MAY 7101P330-60
30	MAY 74001630
31	MAY 74001631
32	MAY 3804F112-51
33	MAY 74001744
34	MAY 74001743
35	MAY 74001999
36	MAY 7428P023-60
37	BRACKET, SWITCH ACTUATOR
38	MAY 7111P020-60
38	MAY 7407P106-60
38	SCREW
39	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
39	MAY 3801F312-45
