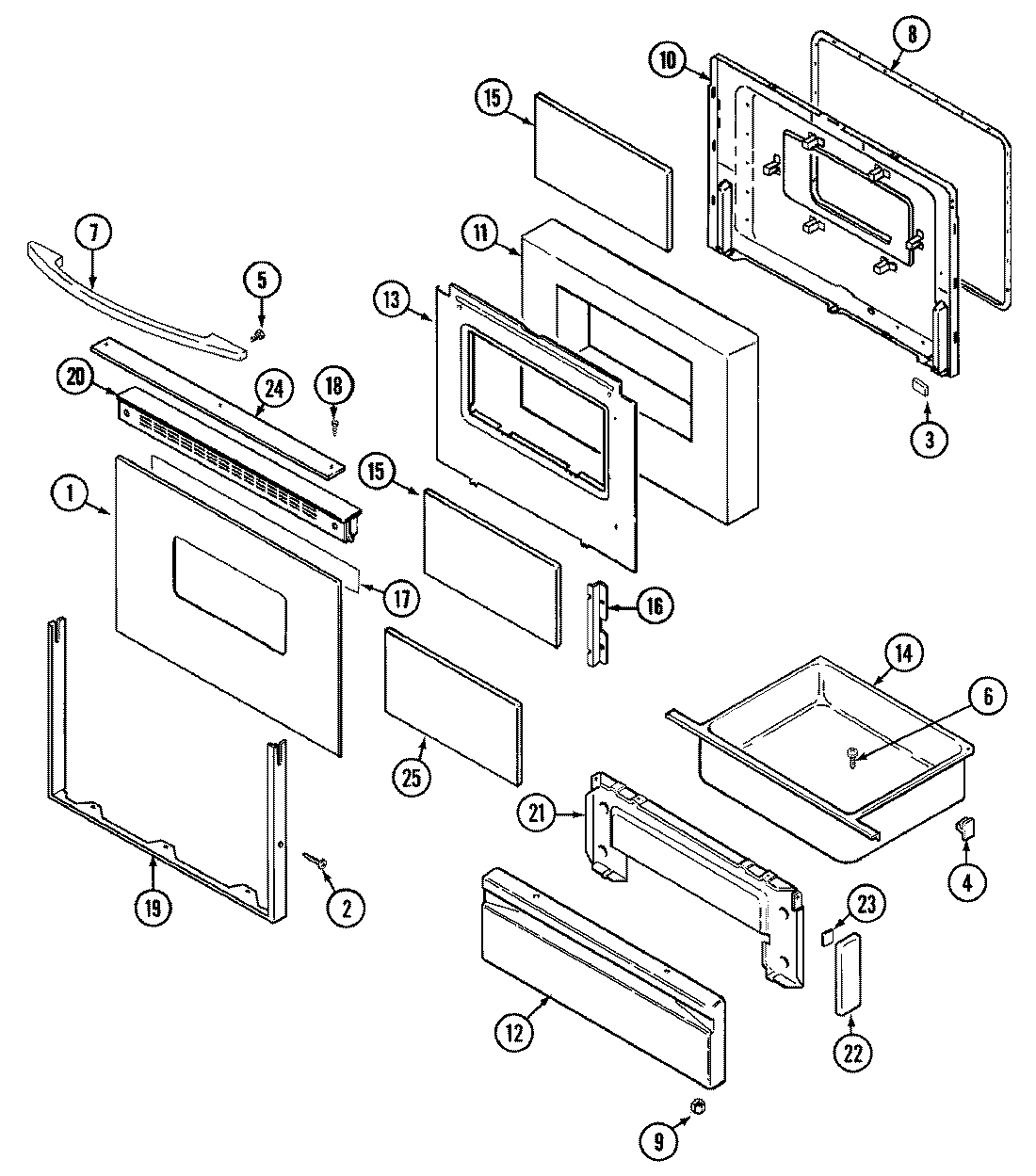

FCE30610WC 03 – DOOR/DRAWER

FCE30610WC 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74002057
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5WP179051 Whirlpool Screw
6MAY 74001280
7MAY 74002062
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 2402W209-19
10NUT, SNAP (ROUND-BLK)
10NUT, SNAP (ROUND-WHT)
10MAY 7103P136-60
11MAY 74001842
12MAY 2416F050-71
13MAY 74001843
14MAY 3405F019-80
15MAY 74001841
16MAY 74001844
17TAPE, FOIL (3`` WIDE)
18SCREW
19MAY 7706P310-60
20MAY 74002066
21MAY 2404F043-80
22MAY 7744P093-60
23TAPE
24MAY 7728P094-60
24WP98008544 Whirlpool Screw Assembly
25MAY 74002002
