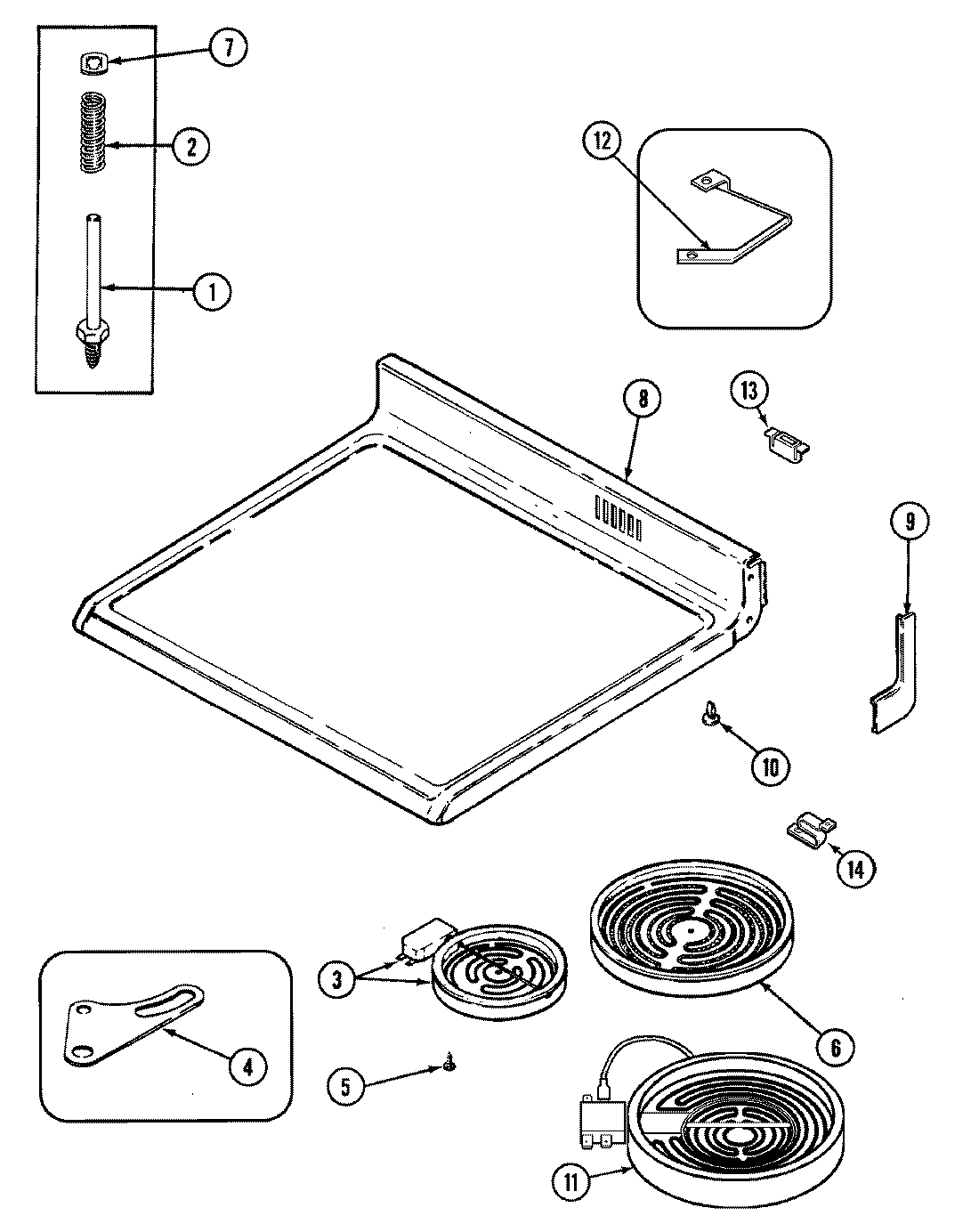

FCE30611WC 05 – TOP ASSEMBLY

Products

PositionProduct
3W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
5SCREW
6MAY 74002652
6W10823707 Whirlpool Range Radiant Surface Element 8"
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8MAY 74003101
8MAY 74002148
8SCREW
9WP3195558 Whirlpool Nut
9MAY 7746P033-60
9MAY 7746P032-60
10MAY 74001428
11W10823703 Whirlpool Surface Element
11MAY 74002667
13MAY 74003053
148004P093-60 Whirlpool Support C
15MAY 8308P002-60
15WA906B Whirlpool Cooktop Glass Scraper
