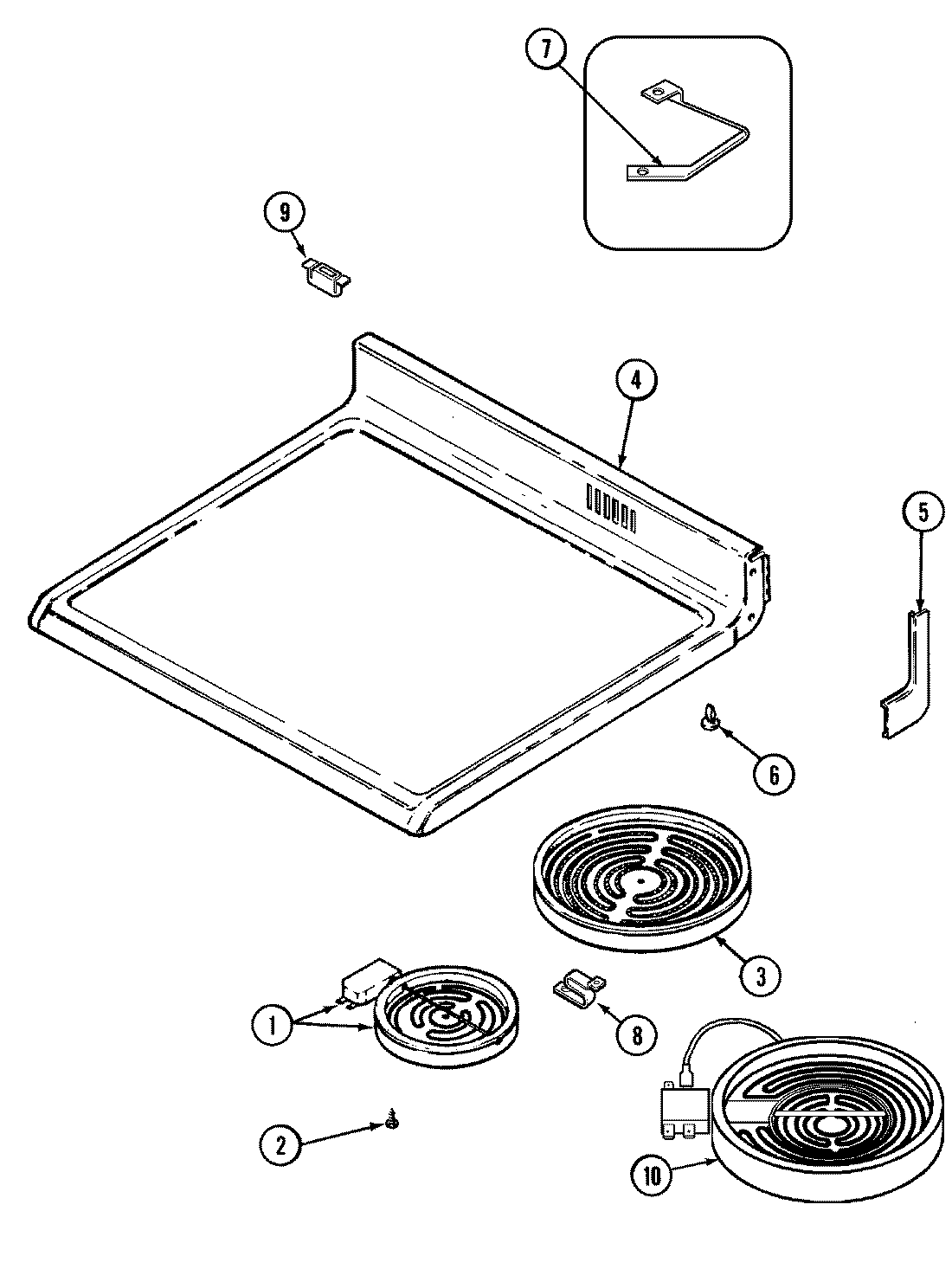

FCE70610B 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
1MAY Y04000064
2SCREW
3MAY 74002652
3W10823707 Whirlpool Range Radiant Surface Element 8"
3MAY Y04000063
4MAY 74002150
4MAY 74003100
4SCREW
5MAY 7746P031-60
5MAY 7746P030-60
5WP3195558 Whirlpool Nut
6MAY 74001428
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7MAY 74001437
88004P093-60 Whirlpool Support C
9MAY 74003053
10MAY 74002176
10W10823703 Whirlpool Surface Element
10MAY 74002667
11WA906B Whirlpool Cooktop Glass Scraper
11MAY 8308P002-60
