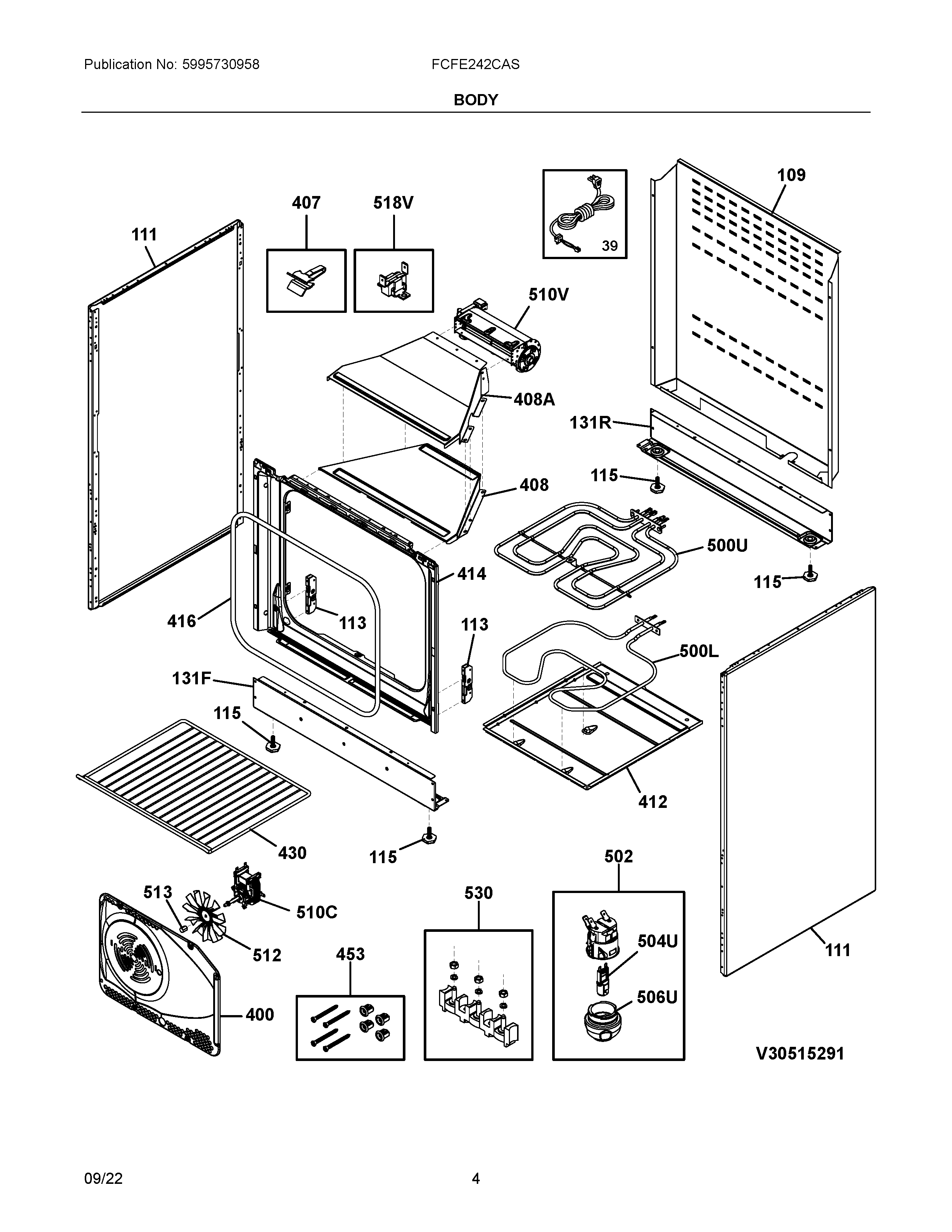

FCFE242CAS 03 – BODY

Products

Position	Product
NI	PROTECTOR, EDGE
NI	WEIGHT, COUNTER
NI	SUPPORT, CORNER
39	WCI 318113111
109	PANEL, OVEN BACK, WHITE
111	A02114903 Frigidaire Panel
113	A05102101 Frigidaire Receptacle
115	A02244101 Frigidaire Oven Foot
131F	TOE PLATE, FRONT, BLACK
131R	A02827004 Frigidaire Panel
400	PANEL, BACK, CONVECTION FAN
407	CLIP, BULB, OVEN THERMOSTAT
408A	COVER, AIR CHANNEL
408	AIR CHANNEL, LOWER
412	COVER, LOWER ELEMENT
414	342397603 Frigidaire Frame
416	357732201 Frigidaire SEAL
430	354659502 Frigidaire RACK
453	KIT, BUSHING, (4 PCS), W/SCREWS
500U	A04164101 Frigidaire Element Assembly
500L	A04163901 Frigidaire Element
502	LAMP ASSEMBLY, OVEN, W/BULB
504U	318946500 Frigidaire Oven Light Bulb Range/Wall
506U	LENS, OVEN LAMP
510C	MOTOR, CONVECTION FAN
510V	808962602 Frigidaire Blower Assembly
512	BLADE, CONVECTION FAN
513	NUT, FAN BLADE, CONVECTION
518V	330208111 Frigidaire Thermostat
530	405538919 Frigidaire KIT
