FCFE3062ABC 04 – TOP/DRAWER

FCFE3062ABC 04 – TOP/DRAWER

Written by

in

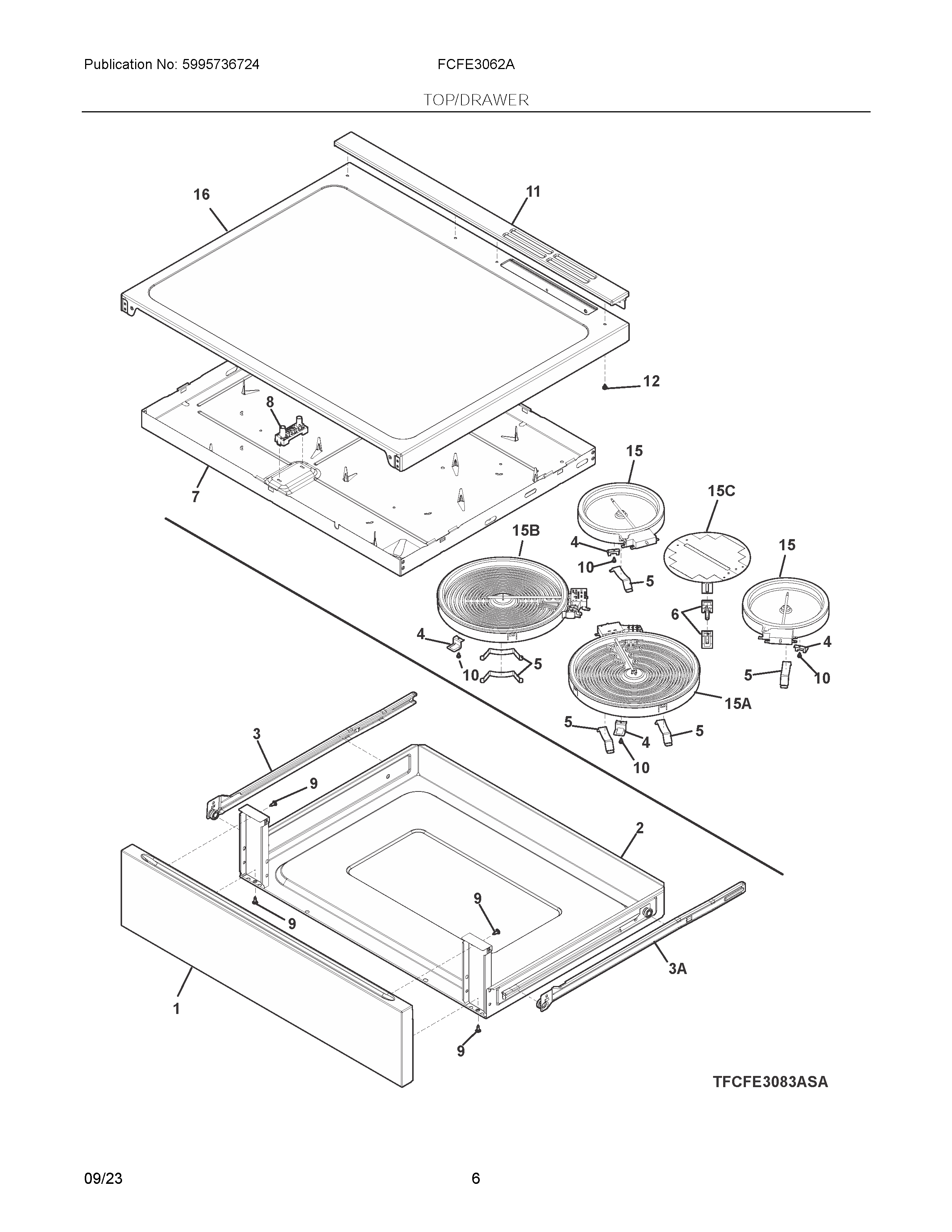

FCFE3062ABC 04 – TOP/DRAWER

Products

PositionProduct
NI5304529019 Frigidaire Harness
NI387856311 Frigidaire Screw
15304526302 Frigidaire Panel
25304526448 Frigidaire Drawer Assembly
3A5304526307 Frigidaire Glide
35304526306 Frigidaire Glide
4387683300 Frigidaire Bracket
5SPRING, ELEMENT SUPPORT
6CLIP, SPRING, ELEMENT
7BURNER BOX, SMOOTHTOP
8INDICATOR-LIGHT 250
95304526533 Frigidaire Screw
10SCREW
115304528290 Frigidaire Trim
12SCREW, M4.2X7X1.06, BLACK
15A316530001 Frigidaire Oven Element
15B5304533520 Frigidaire Element
15CELEMENT,RADIANT,100W,WARMER
15318178110 Frigidaire Oven Range 6" Surface Element
165304528230 Frigidaire Smoothtop Assembly
