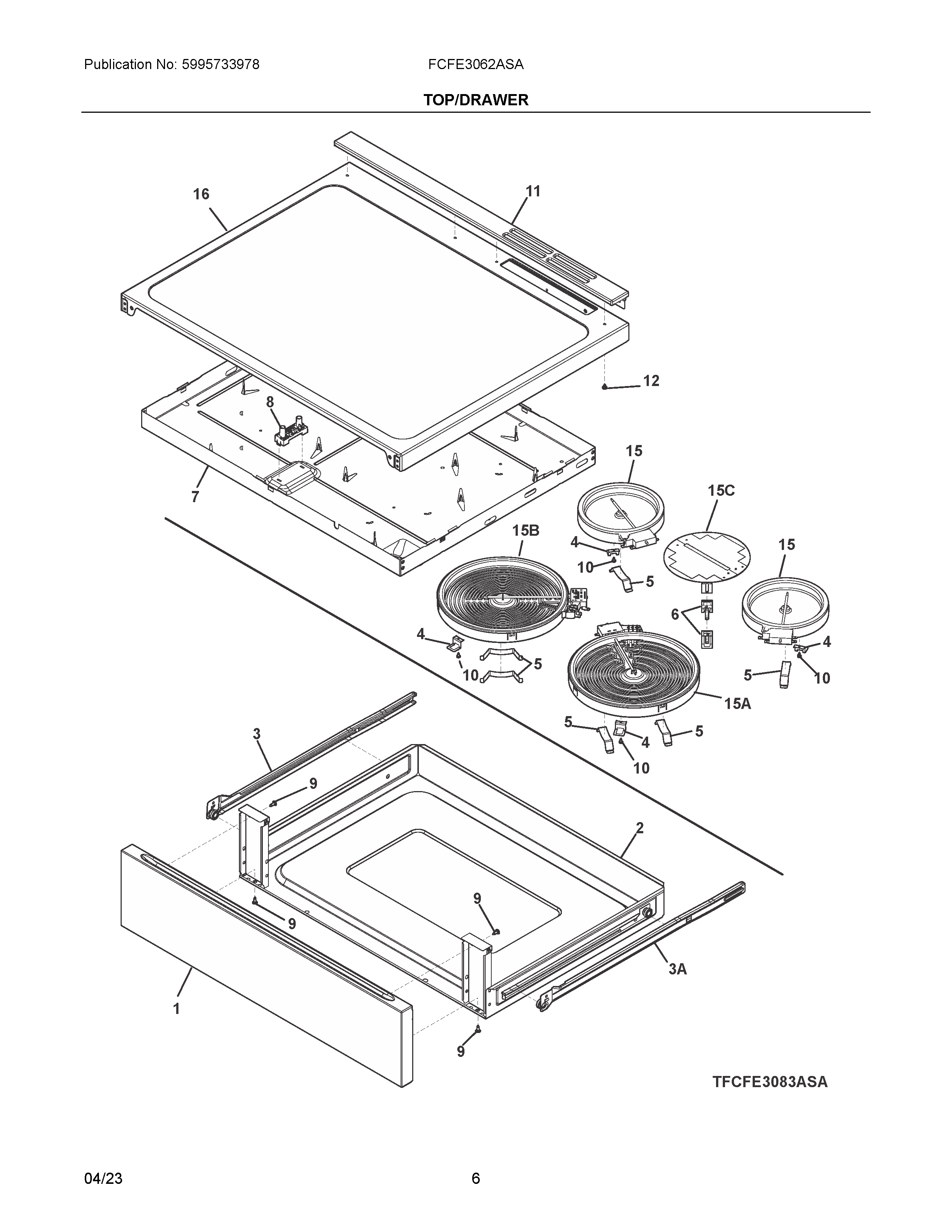

FCFE3062ASA 04 – TOP/DRAWER

Products

Position	Product
NI	5304529019 Frigidaire Harness
NI	5304526496 Frigidaire Harness
NI	387856311 Frigidaire Screw
1	5304526300 Frigidaire Panel
2	5304526448 Frigidaire Drawer Assembly
3A	5304526307 Frigidaire Glide
3	5304526306 Frigidaire Glide
4	387683300 Frigidaire Bracket
5	SPRING, ELEMENT SUPPORT
6	CLIP, SPRING, ELEMENT
7	BURNER BOX, SMOOTHTOP
8	INDICATOR-LIGHT 250
9	5304526533 Frigidaire Screw
10	SCREW
11	5304528290 Frigidaire Trim
12	SCREW, M4.2X7X1.06, BLACK
15A	316530001 Frigidaire Oven Element
15C	ELEMENT,RADIANT,100W,WARMER
15B	5304533520 Frigidaire Element
15	318178110 Frigidaire Oven Range 6" Surface Element
16	5304528230 Frigidaire Smoothtop Assembly
