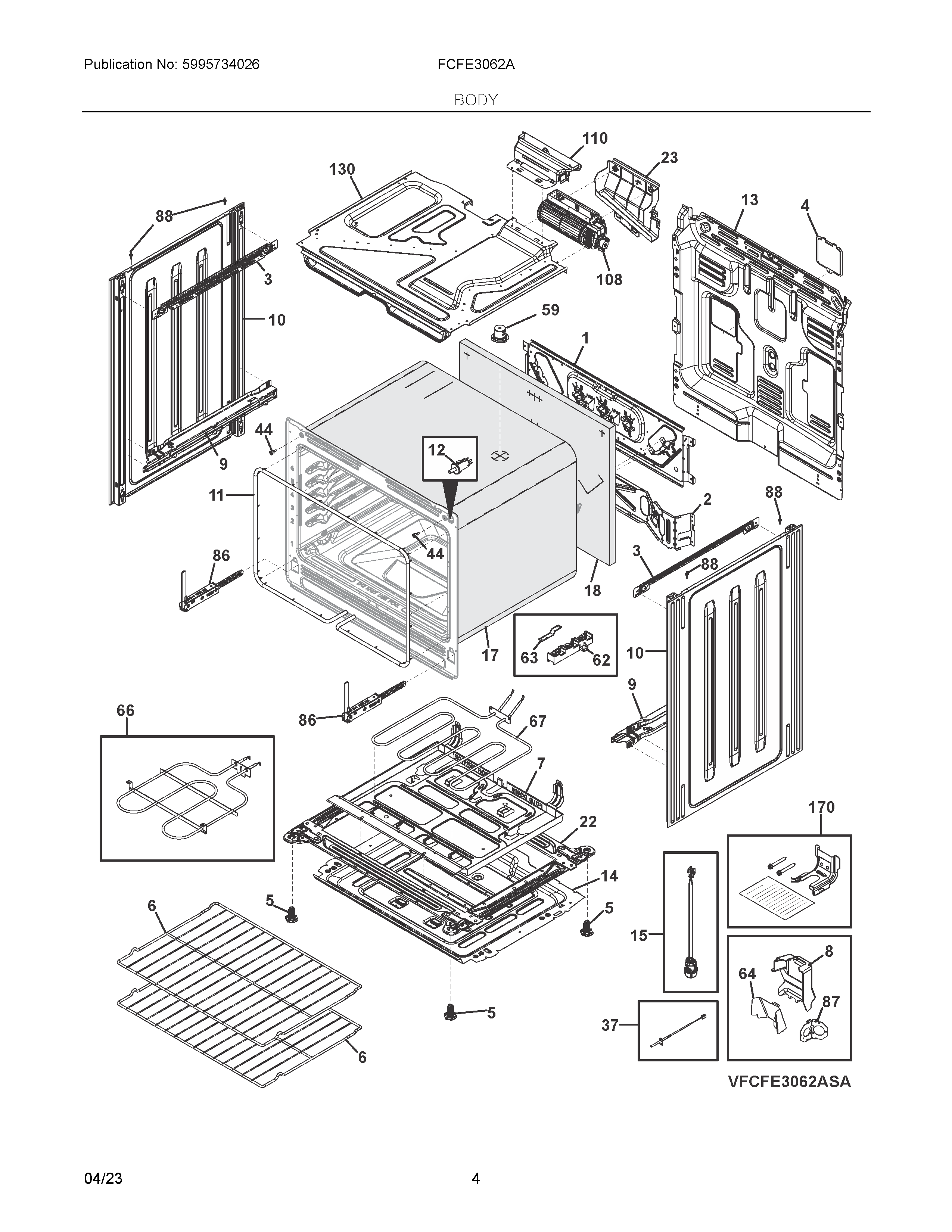

FCFE3062AWB 03 – BODY

Products

Position	Product
NI	HARNESS, WIRING, MAIN
NI	SCREW, SELF DRILL, M3.5 X 9.5
NIA	5304526532 Frigidaire Screw
NI	STANDOFF, HARNESS, PLASTIC
NI	387856311 Frigidaire Screw
NI	SCREW, T20,
NI	WCI 387872717
NI	HARNESS, WIRING, LOW VOLTAGE
NI	WCI 5304533472
NIA	316001017 Frigidaire Screw
NIA	WCI 5304533495
NIB	316205500 Frigidaire Oven Nut
1	BRACKET
2	BRACKET, COMPONENTS, LOWER
3	5304526493 Frigidaire Bracket
4	5304528328 Frigidaire Cover
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	5304531722 Frigidaire Rack
7	TRAY, HIDDEN BAKE
8	5304528549 Frigidaire Cover
9	5304528546 Frigidaire Receptacle
10	5304526333 Frigidaire Panel Assembly
11	5304526243 Frigidaire Seal
12	808136601 Frigidaire Oven Switch
13	SHIELD
14	SHIELD, INSULATION, LOWER
15	5304533411 Frigidaire Lamp Assembly
17	INSULATION, WRAPPER, OVEN
18	INSULATION, OVEN BACK
22	BASE RAIL, ASSEMBLY
23	5304533976 Frigidaire Guard
37	5304533448 Frigidaire Probe
44	316517600 Frigidaire Oven Spacer
59	TUBE, OVEN VENT
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
64	5304528550 Frigidaire Shield
66	ELEMENT
67	5304535239 Frigidaire Element-Hidden Bk 2
86	5304526279 Frigidaire Hinge
87	BRACKET, POWER CORD
88	PIN, GUIDE
108	MOTOR BLOWER ASMY
110	DUCT ASSEMBLY
130	DUCT ASSEMBLY
170	316112010 Frigidaire Anti Tip Kit
