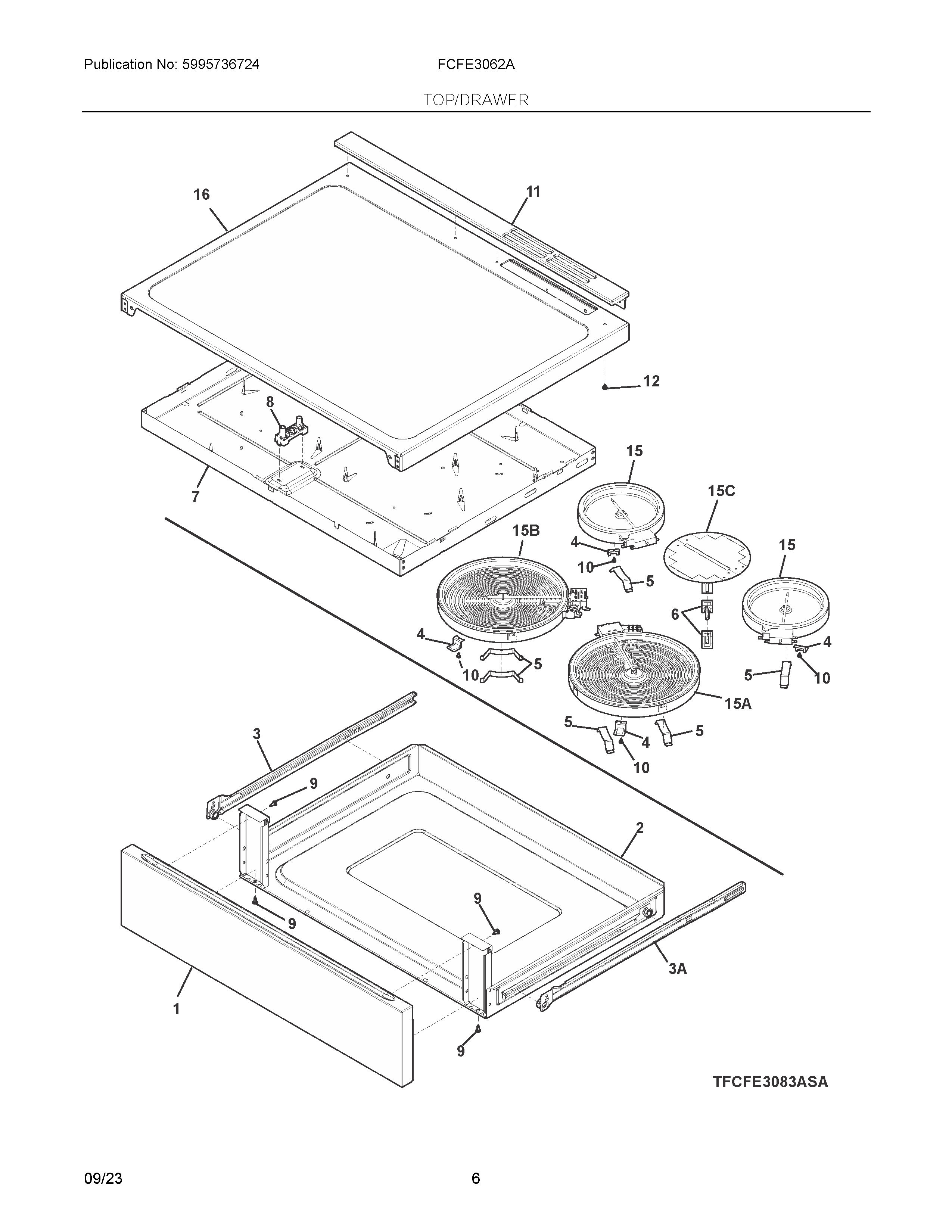

FCFE3062AWC 04 – TOP/DRAWERadmin2025-04-26T08:54:51+00:00FCFE3062AWC 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| NI | 387856311 Frigidaire Screw |
| NI | 5304529019 Frigidaire Harness |
| 1 | 5304526301 Frigidaire Panel |
| 2 | 5304526448 Frigidaire Drawer Assembly |
| 3A | 5304526307 Frigidaire Glide |
| 3 | 5304526306 Frigidaire Glide |
| 4 | 387683300 Frigidaire Bracket |
| 5 | SPRING, ELEMENT SUPPORT |
| 6 | CLIP, SPRING, ELEMENT |
| 7 | BURNER BOX, SMOOTHTOP |
| 8 | INDICATOR-LIGHT 250 |
| 9 | 5304526533 Frigidaire Screw |
| 10 | SCREW |
| 11 | TRIM, VENT, WHITE |
| 12 | SCREW, M4.2X7X1.06, BLACK |
| 15 | 318178110 Frigidaire Oven Range 6" Surface Element |
| 15A | 316530001 Frigidaire Oven Element |
| 15C | ELEMENT,RADIANT,100W,WARMER |
| 15B | 5304533520 Frigidaire Element |
| 16 | 5304528620 Frigidaire Smoothtop |
