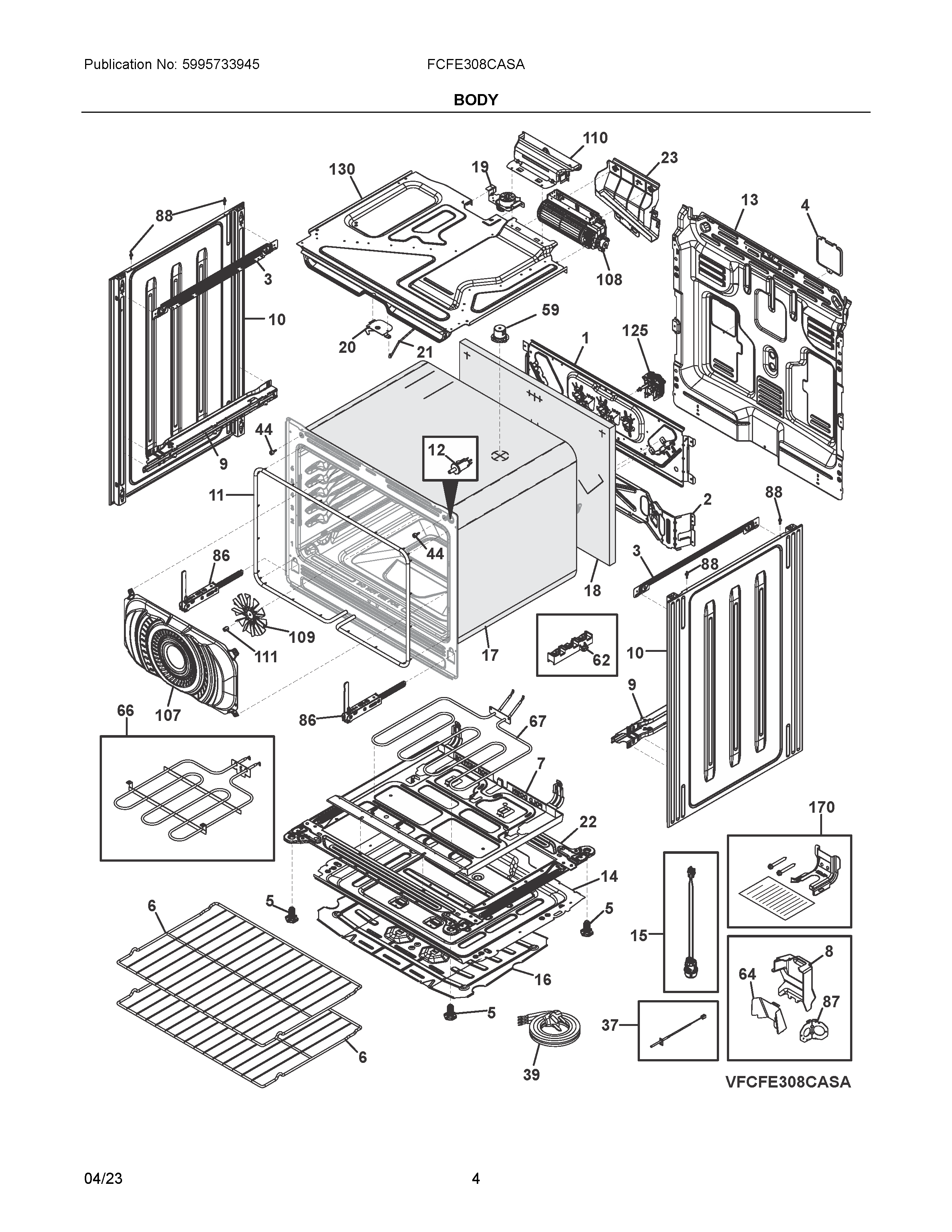

FCFE308CASA 03 – BODY

FCFE308CASA 03 – BODY

Written by

in

FCFE308CASA 03 – BODY

Products

PositionProduct
NISTANDOFF, HARNESS, PLASTIC
NI387856311 Frigidaire Screw
NIAWCI 5304533495
NIWCI 387872717
NI5304533454 Frigidaire Harness Assembly
NIWCI 5304533472
NISCREW, T20,
NIB316001017 Frigidaire Screw
NI5304533450 Frigidaire Harness
NIA316205500 Frigidaire Oven Nut
NIA5304526532 Frigidaire Screw
1BRACKET
2BRACKET, COMPONENTS, LOWER
35304526493 Frigidaire Bracket
45304528328 Frigidaire Cover
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
65304531722 Frigidaire Rack
7TRAY, HIDDEN BAKE
85304528549 Frigidaire Cover
95304528546 Frigidaire Receptacle
105304526334 Frigidaire Panel
115304526243 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD
14SHIELD, INSULATION, LOWER
155304533411 Frigidaire Lamp Assembly
16SHIELD, DRAWER STORAGE, FULL
17INSULATION, OVEN WRAPPER
18INSULATION, OVEN BACK
195304528260 Frigidaire Motor
205304528257 Frigidaire Latch Assembly
21ROD
22BASE RAIL, ASSEMBLY
235304533976 Frigidaire Guard
375304533448 Frigidaire Probe
39POWER CORD, ELECTRIC SERVC
44316517600 Frigidaire Oven Spacer
59TUBE, OVEN VENT
625303935271 Frigidaire Oven Terminal Block
645304528550 Frigidaire Shield
66ELEMENT BROIL
675304535239 Frigidaire Element-Hidden Bk 2
865304528099 Frigidaire Hinge
87BRACKET, POWER CORD
88PIN, GUIDE
1075304526365 Frigidaire Cover
1085304528167 Frigidaire Blower Assembly
1095304525455 Frigidaire Blade
110DUCT ASSEMBLY
111561231207 Frigidaire Nut
1255304528166 Frigidaire Motor
130DUCT ASSEMBLY
170316112010 Frigidaire Anti Tip Kit
