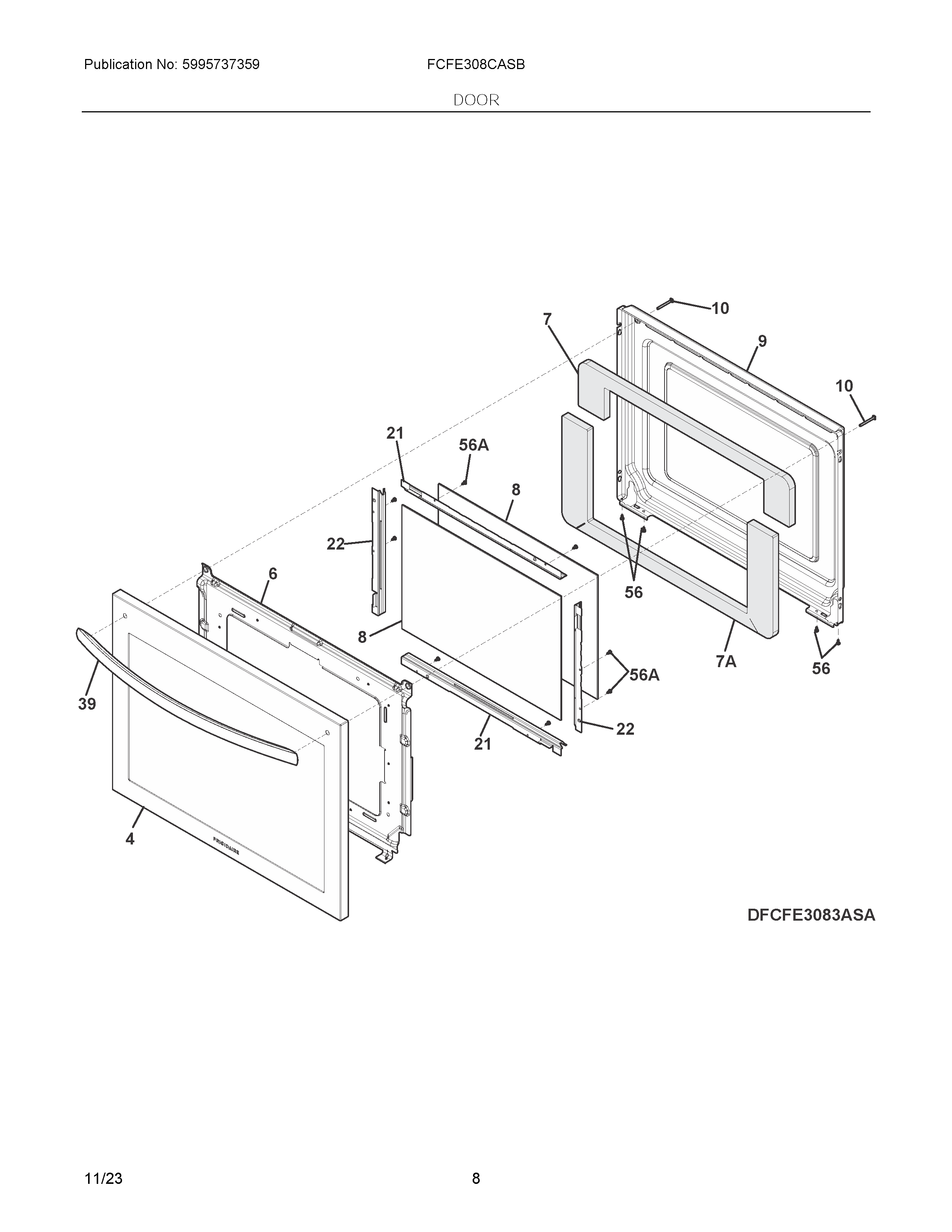

| NI | 316483102 Frigidaire Oven Label |
| 4 | 5304528492 Frigidaire Door Assembly |
| 6 | SHIELD |
| 7A | INSULATION |
| 7 | INSULATION |
| 8 | GLASS |
| 9 | 5304533466 Frigidaire Liner |
| 10 | SCREW, TRUS T20, 10-44 X 1.870, BLACK, HANDLE MTG. |
| 21 | 5304528104 Frigidaire Bracket Assembly |
| 22 | BRACKET |
| 39 | HANDLE-DOOR SS 30IN |
| 56A | 5304526532 Frigidaire Screw |
| 56 | 5304526234 Frigidaire Screw |
