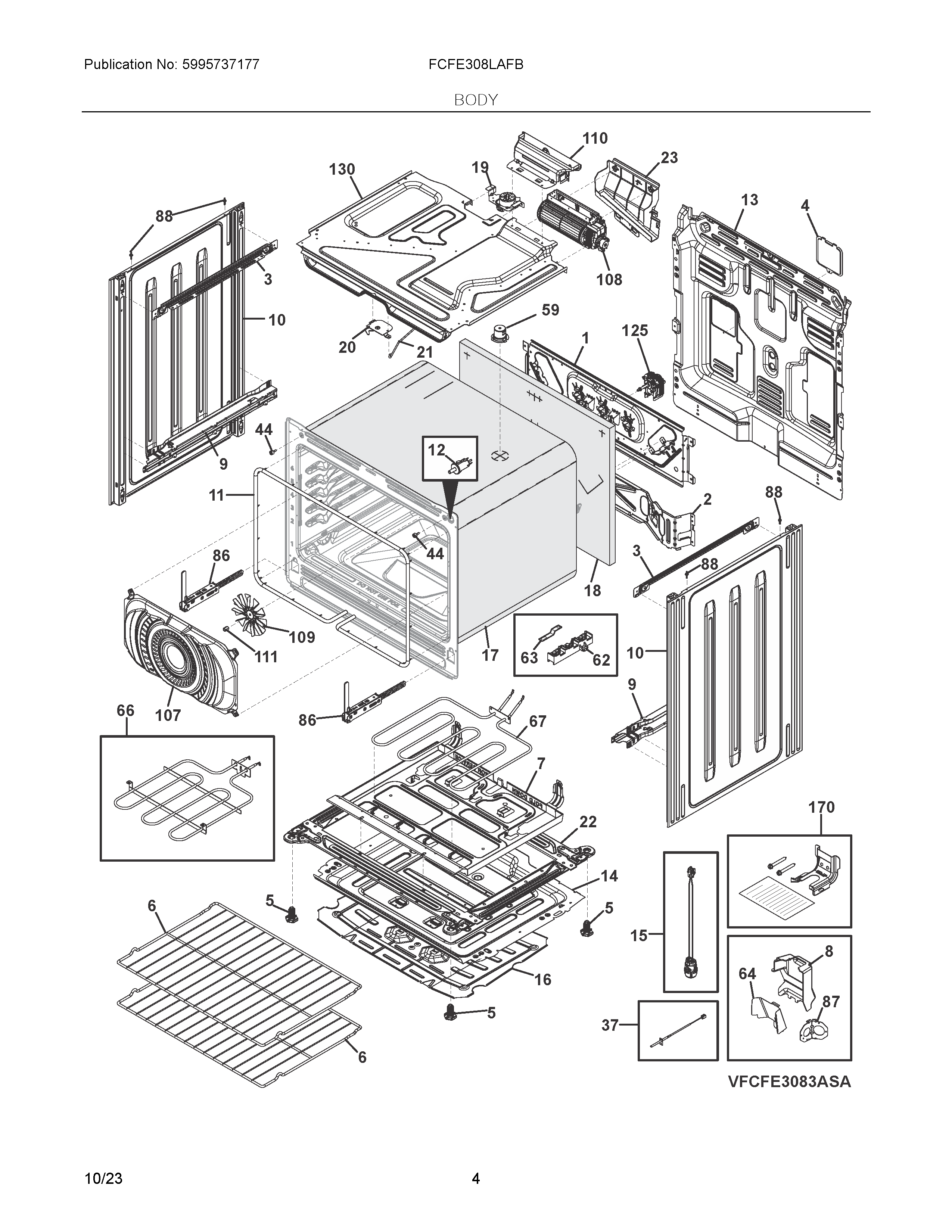

FCFE308LAFB 03 – BODY

Products

Position	Product
NI	SCREW, T20,
NI	STANDOFF, HARNESS, PLASTIC
NI	WCI 387872717
NIA	5304526532 Frigidaire Screw
NI	5304533454 Frigidaire Harness Assembly
NI	WCI 5304533472
NIA	WCI 5304533495
NIA	316001017 Frigidaire Screw
NI	5304533450 Frigidaire Harness
NIB	316205500 Frigidaire Oven Nut
NI	387856311 Frigidaire Screw
1	BRACKET
2	BRACKET, COMPONENTS, LOWER
3	5304526493 Frigidaire Bracket
4	5304528328 Frigidaire Cover
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	5304531722 Frigidaire Rack
7	TRAY, HIDDEN BAKE
8	5304528549 Frigidaire Cover
9	5304528546 Frigidaire Receptacle
10	5304526334 Frigidaire Panel
11	5304526243 Frigidaire Seal
12	808136601 Frigidaire Oven Switch
13	SHIELD
14	SHIELD, INSULATION, LOWER
15	5304533411 Frigidaire Lamp Assembly
16	SHIELD, DRAWER STORAGE, FULL
17	INSULATION, OVEN WRAPPER
18	INSULATION, OVEN BACK
19	5304528260 Frigidaire Motor
20	5304528257 Frigidaire Latch Assembly
21	ROD
22	BASE RAIL, ASSEMBLY
23	5304533976 Frigidaire Guard
37	5304533448 Frigidaire Probe
44	316517600 Frigidaire Oven Spacer
59	TUBE, OVEN VENT
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
64	5304528550 Frigidaire Shield
66	ELEMENT BROIL
67	5304535239 Frigidaire Element-Hidden Bk 2
86	5304528099 Frigidaire Hinge
87	BRACKET, POWER CORD
88	PIN, GUIDE
107	5304526365 Frigidaire Cover
108	5304528167 Frigidaire Blower Assembly
109	5304525455 Frigidaire Blade
110	DUCT ASSEMBLY
111	561231207 Frigidaire Nut
125	5304528166 Frigidaire Motor
130	DUCT ASSEMBLY
170	316112010 Frigidaire Anti Tip Kit
