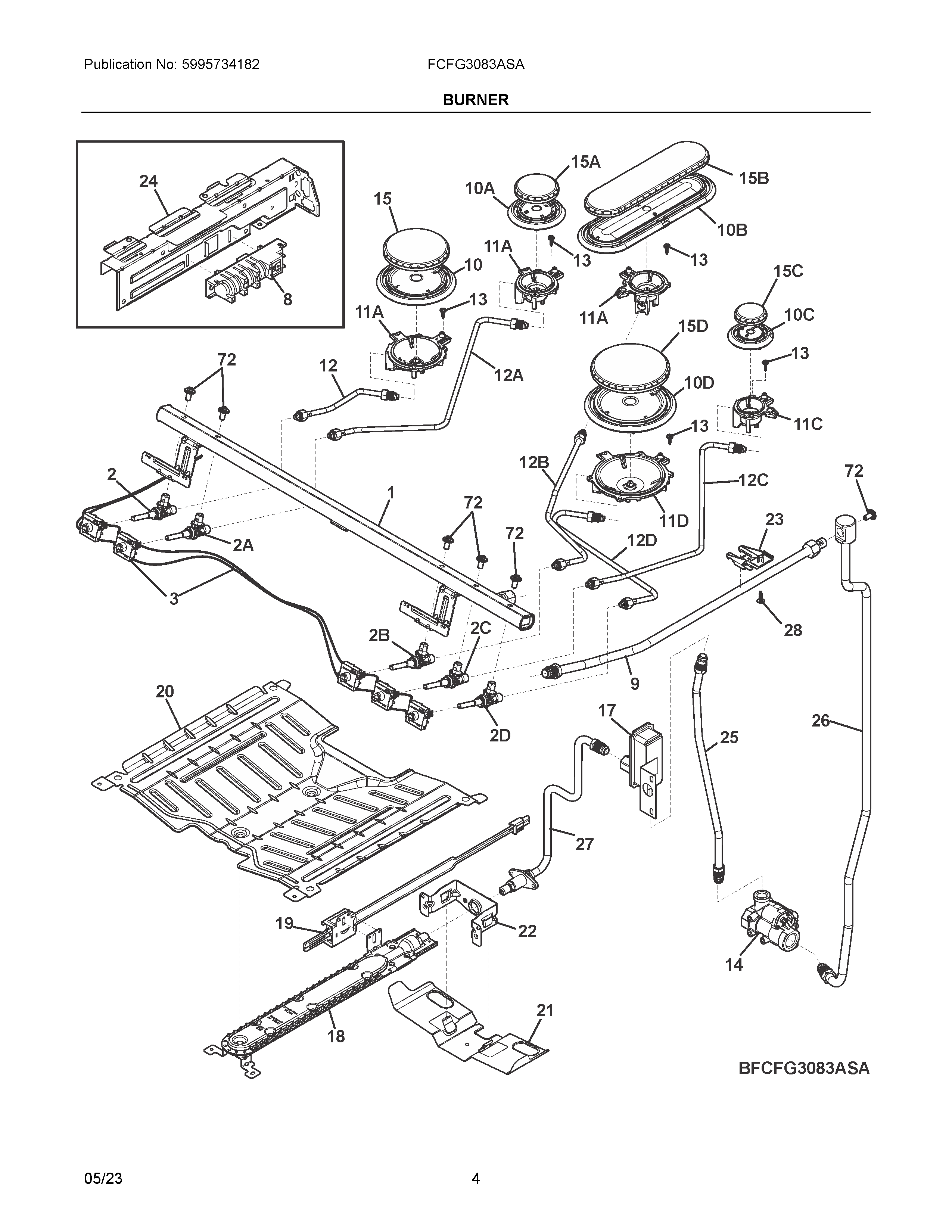

FCFG3083ASA 03 – BURNER

Products

Position	Product
NIA	316001017 Frigidaire Screw
NI	GRLP5 Frigidaire Range Natural Gas to LP Propane Conversion Kit
NIA	WCI 349098702
NIA	5304526533 Frigidaire Screw
NI	387856311 Frigidaire Screw
NIA	WCI 5304528293
1	MANIFOLD, TUBE
2D	5304507282 Frigidaire Oven Gas Valve
2B	5304506551 Frigidaire Oven Valve
2C	5304506547 Frigidaire Oven Valve
2	5304506549 Frigidaire Oven Valve
2A	5304506548 Frigidaire Oven Valve
3	5304534084 Frigidaire Harness Assembly
8	SPARK MODULE
9	5304534682 Frigidaire Tube
10A	5304533593 Frigidaire Range Crown
10B	BURNER CROWN 10K OVAL
10D	CROWN,BURNER,XTRA LARGE
10	5304533618 Frigidaire Range Crown
10C	5304533592 Frigidaire Range Crown
11	5304533857 Frigidaire Igniter/Orifice
11A	5304533853 Frigidaire Igniter/Orifice
11D	5304533611 Frigidaire Igniter/Orifice Assembly
11C	5304533582 Frigidaire Igniter/Orifice
12	5304534678 Frigidaire Tube
12D	5304534677 Frigidaire Tube
12B	5304534681 Frigidaire Tube Assembly
12C	5304534679 Frigidaire Tube
12A	5304534680 Frigidaire Tube
13	BOLT, 9X13MM T10
14	316091711 Frigidaire Regulator Assembly
15D	5304533597 Frigidaire Range Cap Assembly
15C	5304533595 Frigidaire Range Cap Assembly
15	5304533619 Frigidaire Range Cap
15B	5304534690 Frigidaire Cap
15A	5304533596 Frigidaire Range Cap
17	5304533805 Frigidaire Valve
18	5304533840 Frigidaire Burner Assembly
19	5304534663 Frigidaire Igniter
20	BAFFLE
21	SHIELD, BAKE BRACKET
22	5304535280 Frigidaire Bracket
23	BRACKET, TUBING
24	BRACKET, HARNESS
25	5304534667 Frigidaire Tube
26	5304534673 Frigidaire Tube
27	5304534665 Frigidaire Tube Assembly
28	WCI 5304534684
72	SCREW
