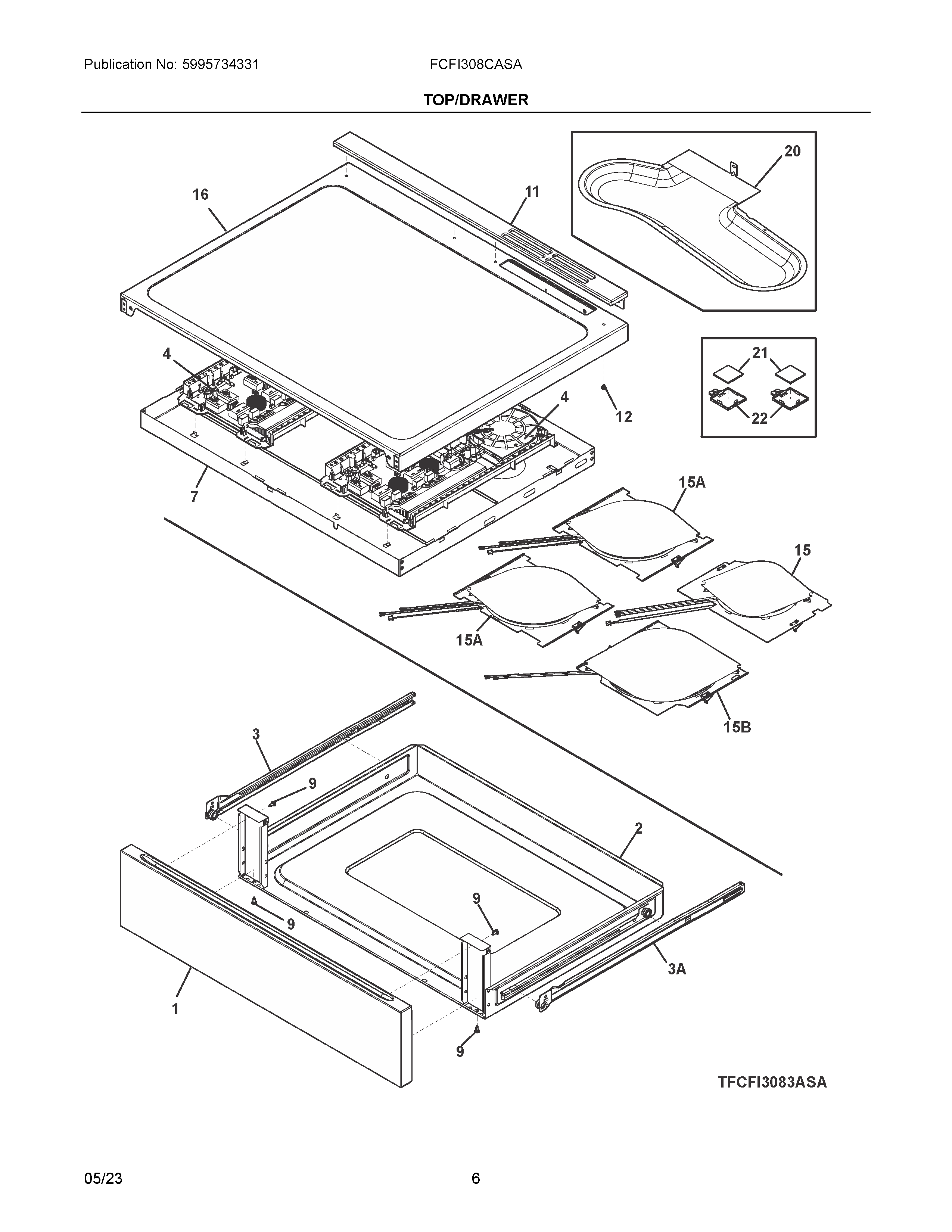

FCFI308CASA 04 – TOP/DRAWER

FCFI308CASA 04 – TOP/DRAWER

Written by

in

FCFI308CASA 04 – TOP/DRAWER

Products

PositionProduct
NIHARNESS, WIRING, COOKTOP, POWER
NIHARNESS, WIRING, INDUCTION POWER
NIHARNESS, WIRING, FERRITE GROUND
NI387856311 Frigidaire Screw
15304526300 Frigidaire Panel
25304526448 Frigidaire Drawer Assembly
35304526306 Frigidaire Glide
3A5304526307 Frigidaire Glide
4CONTROL MODULE
7BURNER BOX, SMOOTHTOP
95304526533 Frigidaire Screw
115304528290 Frigidaire Trim
12SCREW, M4.2X7X1.06, BLACK
15A387404870 Frigidaire Range Element Assembly
15B387761249 Frigidaire Range Element Assembly
15387404760 Frigidaire Range Element Assembly
165304528621 Frigidaire Smoothtop
20DUCT, AIR INTAKE, INDUCTION
21SHIELDING, FERRITE BAR
22BRACKET, FERRITE SHIELD
