FCG20002A 03 – DOOR/DRAWER

FCG20002A 03 – DOOR/DRAWER

Written by

in

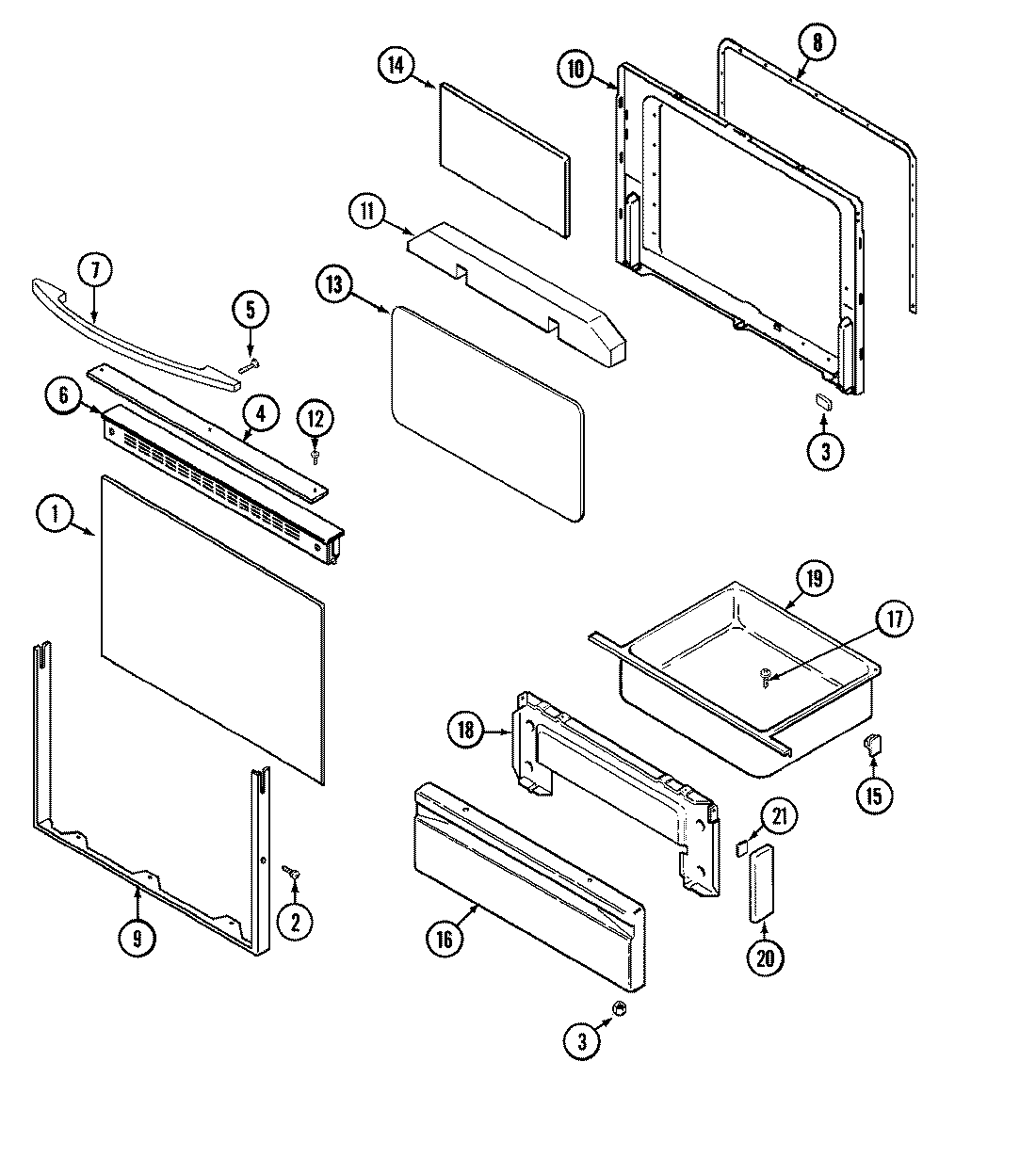

FCG20002A 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74002056
2WP74009541 Whirlpool Screw Assembly
3WPW10131078 Whirlpool Nut Assembly
4MAY 7728P095-60
5WP98008544 Whirlpool Screw Assembly
6MAY 74002064
7MAY 74002060
8WP7212P043-60 Whirlpool Oven Door Seal Gasket
9MAY 7706P311-60
10MAY 74002785
10NUT, SNAP (ROUND-WHT)
11MAY 74002458
12MAY 7101P370-60
13MAY 74002461
13MAY 7101P209-60
14MAY 74002459
15MAY 8016P011-60
16MAY 74001478
17SCREW
18MAY 2404F044-80
19MAY 3405F018-80
20MAY 7744P091-60
21TAPE
