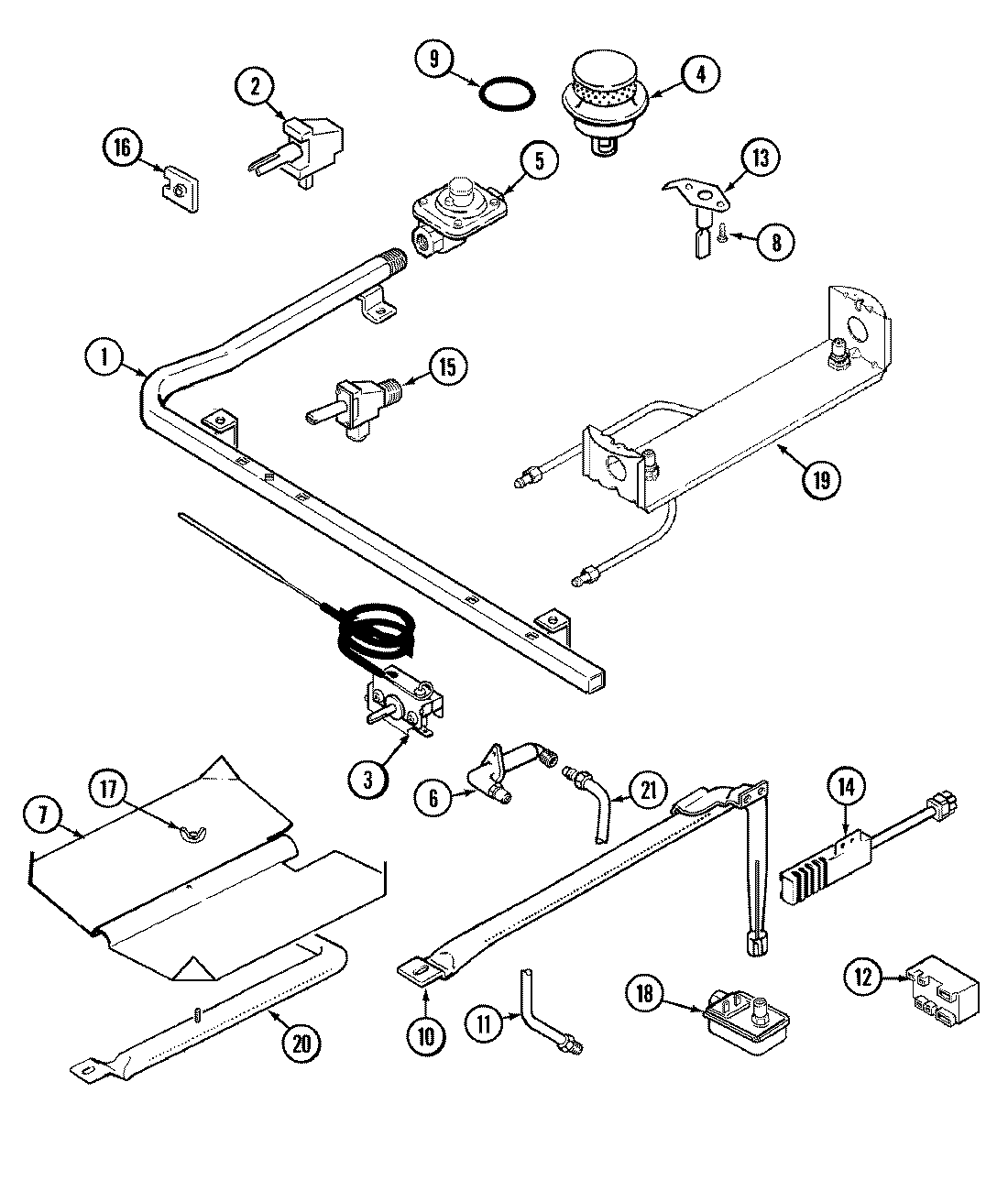

FCG20002A 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002531
2	MAY 74002532
2	WP8273096 Whirlpool Screw
2	MAY 7502P252-60
3	MAY 7101P280-60
3	MAY 74002788
4	MAY 3412D018-08
5	MAY 7510P049-60
6	MAY 7507P088-60
6	WP3387230 Whirlpool Screw
6	MAY 3605F186-45
7	MAY 3601F217-45
8	MAY Y707113
9	MAY 7201P050-60
10	SCREW
10	MAY 3403D043-45
11	MAY 1555251
12	MAY 7431P027-60
13	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 7432P076-60
14	WP3351614 Whirlpool Screw
15	MAY 7101P044-60
15	12002280 Whirlpool Oven Valve Kit and Screw
16	MAY 74002533
16	WP7403P287-60 Whirlpool Igniter Switch
17	NUT, WING
18	MAY 74002387
19	MAY 74002534
19	MAY 74002535
20	MAY 3403D024-45
21	MAY 3414F102-44
