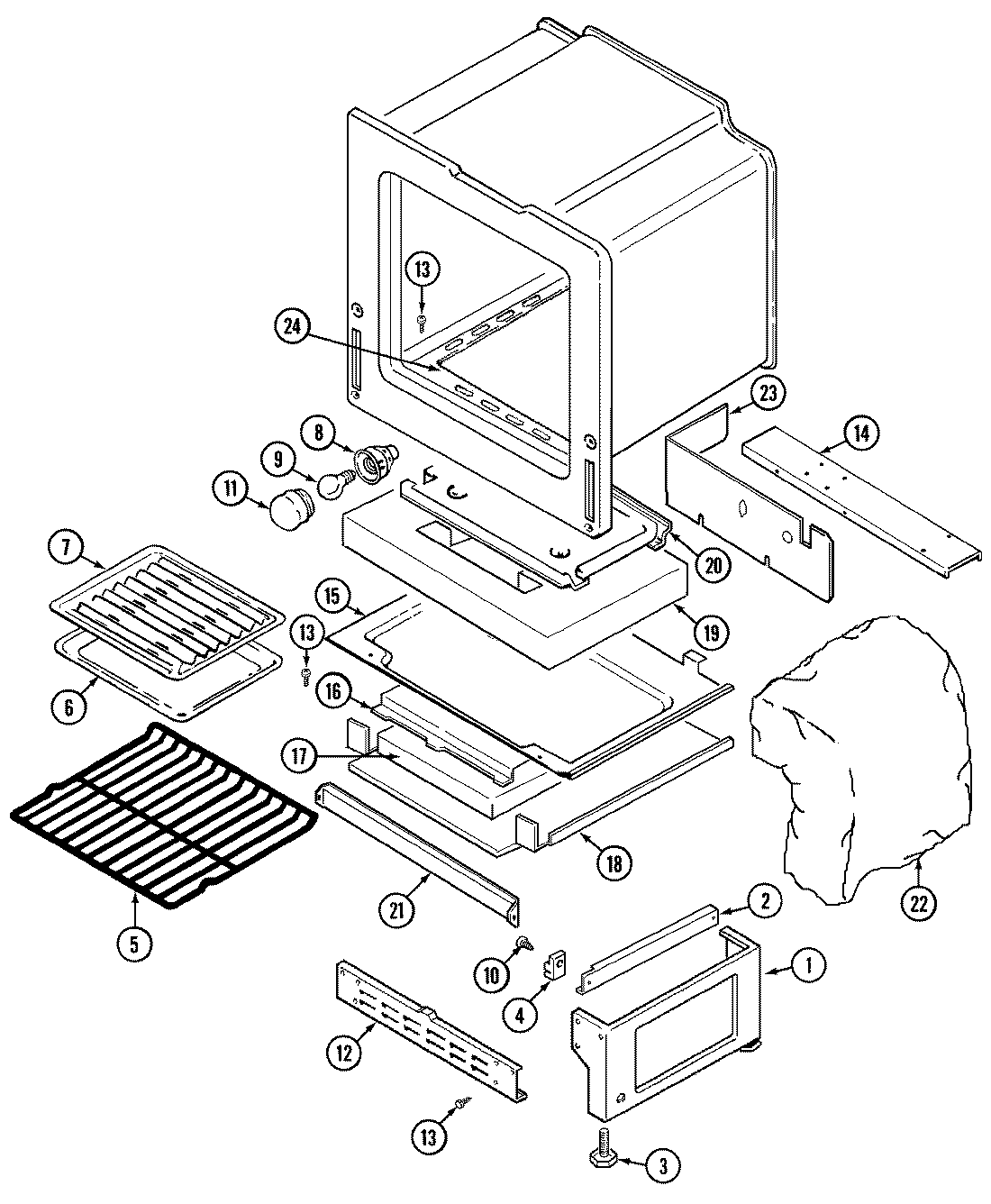

FCG20100T 05 – OVEN/BASE

FCG20100T 05 – OVEN/BASE

Written by

in

FCG20100T 05 – OVEN/BASE

Products

PositionProduct
1MAY 74001705
2MAY 3406F028-51
3MAY 74001311
4WP8004P026-60 Whirlpool Support
5MAY 7801P047-60
6MAY Y3401F02019
7MAY Y3413F01619
8WP7407P182-60 Whirlpool Lamp
8MAY 74003125
9RANGE ONLY 40W 120V APPL BULB
10SCREW
11WP9781049 Whirlpool Light Lens
12MAY 4020F001-80
14MAY 3807F476-51
15MAY 3804F112-51
16MAY 3604F204-51
17INSULATION, DRAWER & SHIELD
18MAY 3604F205-51
19MAY 4804F014-60
20MAY 74001651
21BAFFLE, OVEN FRONT
22MAY 4804F036-60
22MAY 74001800
23MAY 4005F429-51
24MAY 7101P290-60
24MAY 5504M004-19
24MAY 3601F229-45
