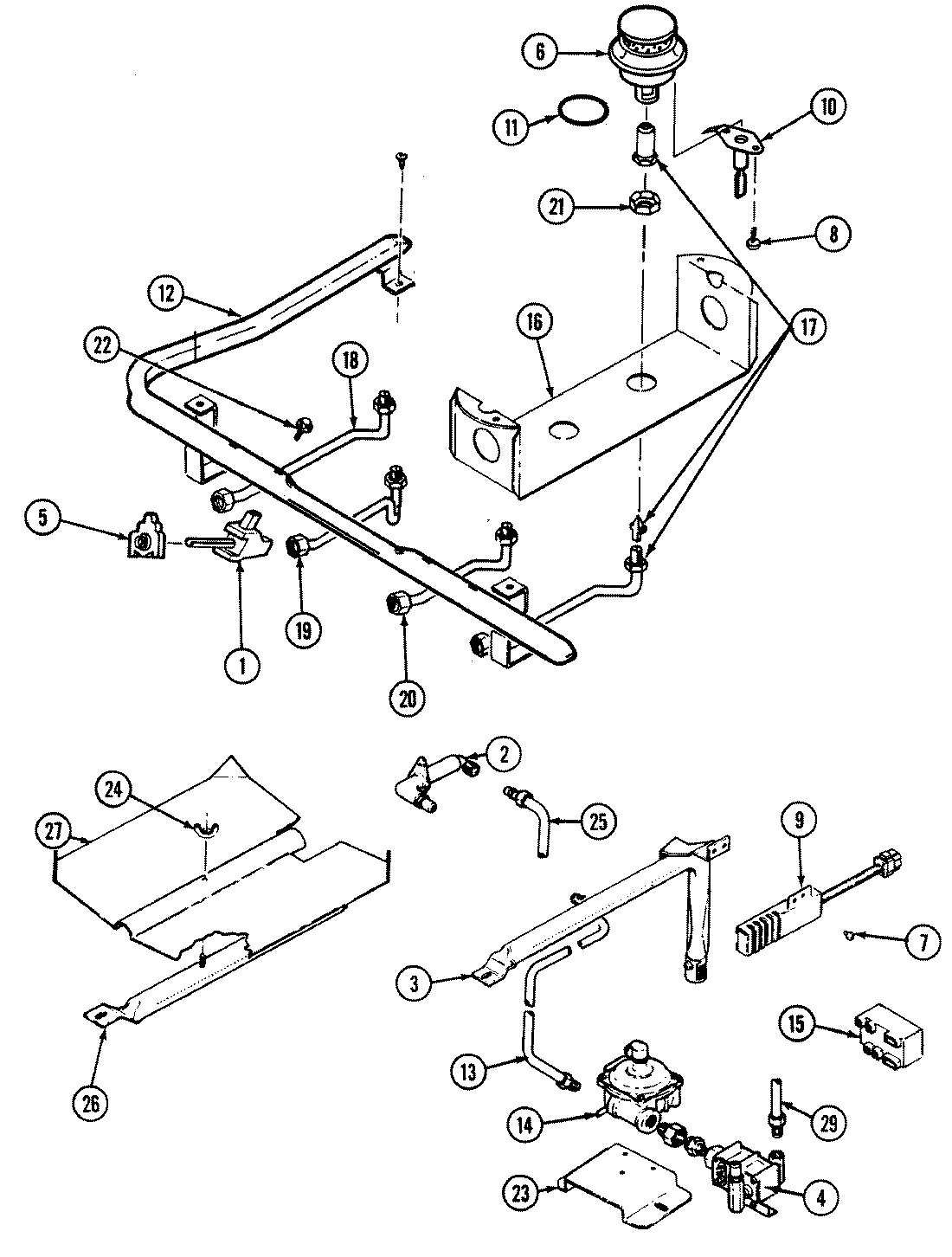

FCG2041B 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P251-60
2	MAY 3605F186-45
2	MAY 7507P088-60
3	MAY 3807F446-45
3	MAY 3403D043-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
7	SCREW (10-24X5/16-NI)
8	MAY 7101P315-60
9	MAY 4005F421-45
9	MAY 7432P076-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7201P050-60
12	MAY 7513P120-60
13	MAY 3414F103-44
13	MAY 7103P130-60
14	MAY 7510P050-60
15	MAY 7118P015-60
15	MAY 7431P027-60
16	MAY 3807F451-45
17	MAY 7507P113-60
18	MAY 7507P085-60
19	MAY 7507P084-60
20	MAY 7507P091-60
21	MAY 7103P119-60
22	MAY 7101P044-60
23	MAY 8020P007-60
23	MAY 7101P290-60
24	NUT, WING
25	MAY 3414F102-44
26	MAY 3403D024-45
27	MAY 3601F217-45
28	MAY 5140D035-60
28	MAY 5125A357-60
28	MAY 5120D019-60
