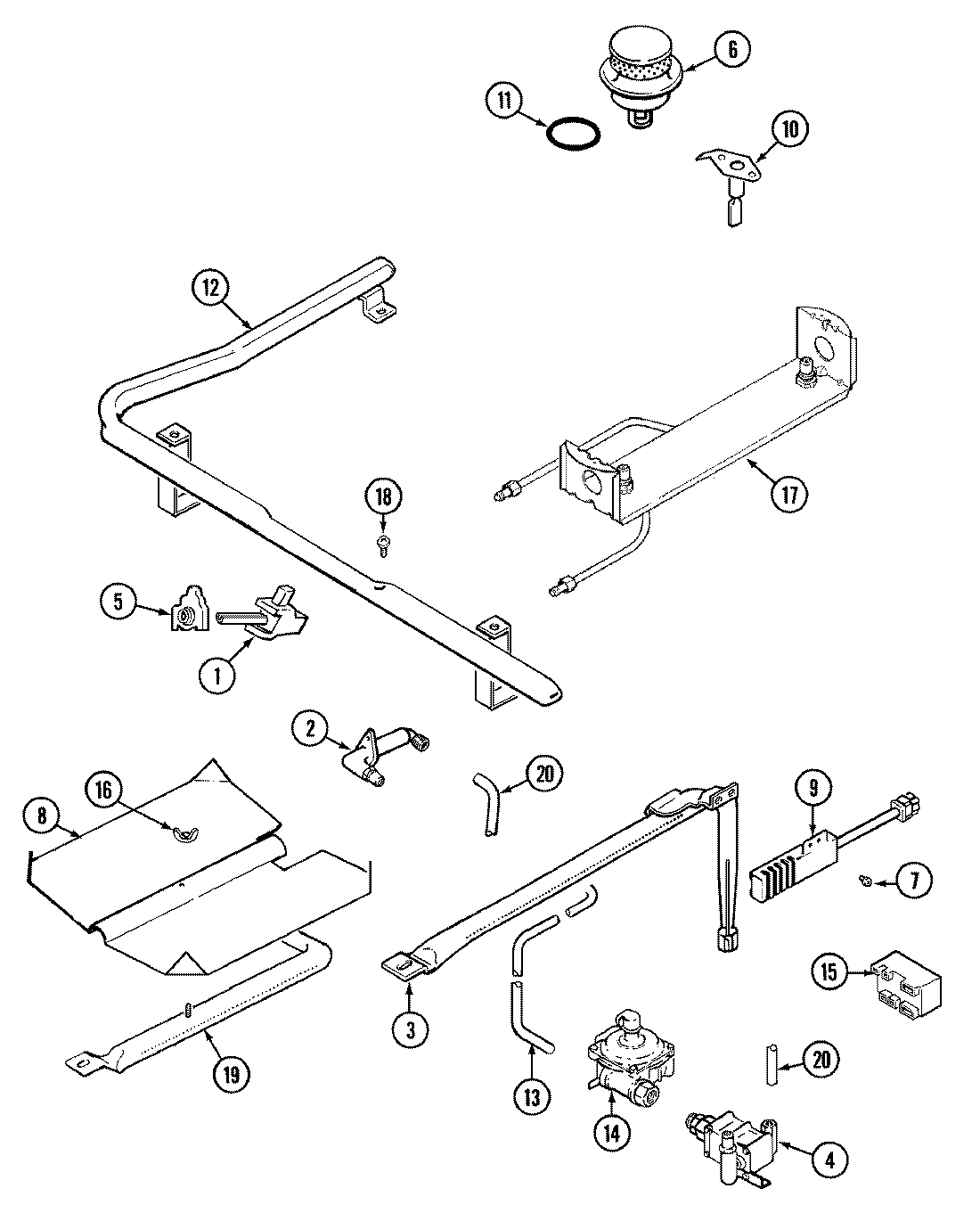

FCG2042B 03 – CONTROL SYSTEM

Products

Position	Product
1	MAY 7502P251-60
2	MAY 7507P088-60
2	MAY 3605F186-45
3	MAY 3403D043-45
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
7	SCREW (10-24X5/16-NI)
8	MAY 3601F217-45
9	MAY 7432P076-60
9	MAY 4005F421-45
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7201P050-60
12	MAY 7513P120-60
13	MAY 7103P130-60
13	MAY 3414F103-44
14	WP74006429 Whirlpool Regulator
15	MAY 7431P027-60
15	SCREW
16	NUT, WING
17	MAY 5187D035-60
17	MAY 5187D034-60
18	MAY 7101P044-60
19	MAY 3403D024-45
20	MAY 3414F102-44
21	MAY 5140D035-60
21	MAY 5120D019-60
21	MAY 5125A357-60
