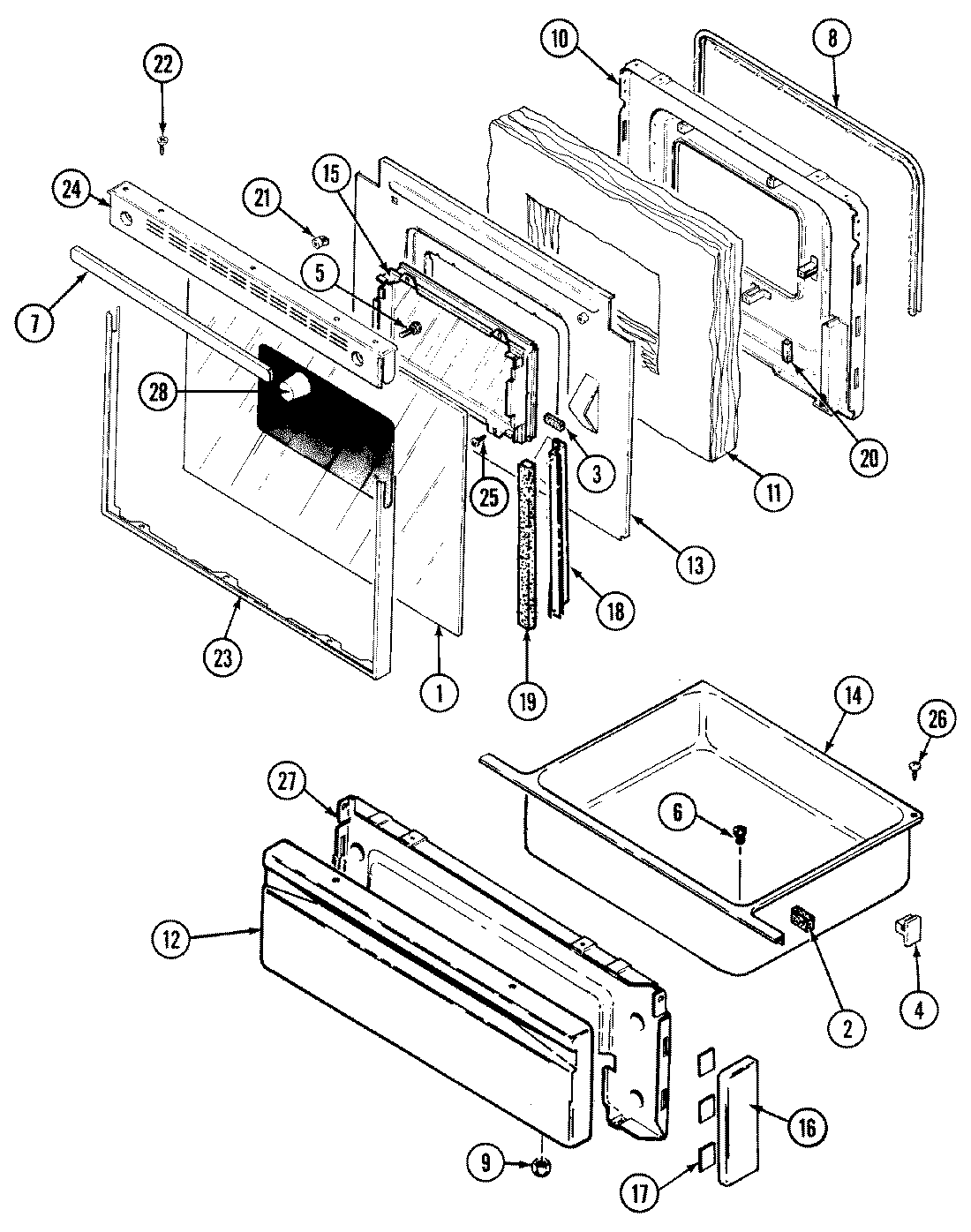

FCG2042B 04 – DOOR/DRAWER – Aparts

FCG2042B 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P384-60
1	TAPE, FOIL (3`` WIDE)
2	MAY 8010P086-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	MAY 7101P353-60
6	WP4159193 Whirlpool Screw
7	MAY 7701P138-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W202-19
10	MAY 7103P136-60
11	MAY 4804F034-60
12	MAY 2416F047-70
13	MAY 3601F232-45
14	MAY 3405F017-80
15	MAY 7907P021-60
15	MAY 3805F002-34
16	MAY 7744P087-60
17	TAPE
18	MAY 3818F052-51
19	MAY 7208P002-60
20	MAY 7208P011-60
21	MAY 7103P045-60
22	WP98008545 Whirlpool Screw
23	MAY 7706P294-60
24	MAY 7744P088-60
25	MAY 7101P290-60
26	MAY 7101P329-60
27	MAY 2404F038-80
28	CAP, END (BLK)
