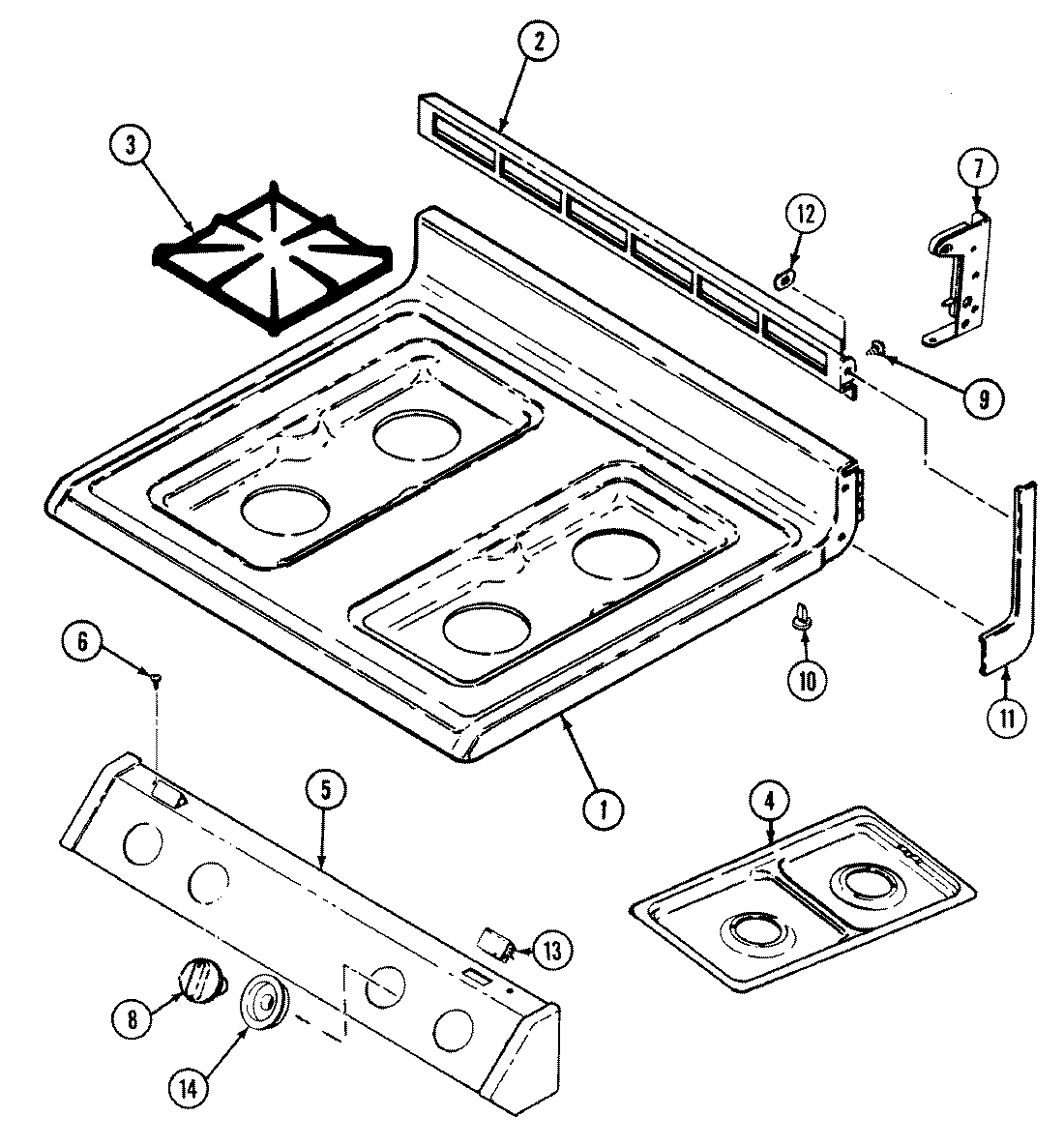

FCG2042B 06 – TOP ASSEMBLY

FCG2042B 06 – TOP ASSEMBLY

Written by

in

FCG2042B 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001531
2MAY 3608F042-09
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P173-60
6MAY 7118P015-60
7MAY 3807F454-51
7MAY 3807F453-51
7MAY 8114P348-60
8MAY 7733P094-60
9SCREW (10ABX1/4P TR ZN)
10MAY 8016P013-60
11MAY 8270P095-60
11MAY 7746P031-60
11MAY 7746P030-60
12MAY 7103P129-60
13MAY 7112P087-60
14MAY 7740P057-60
