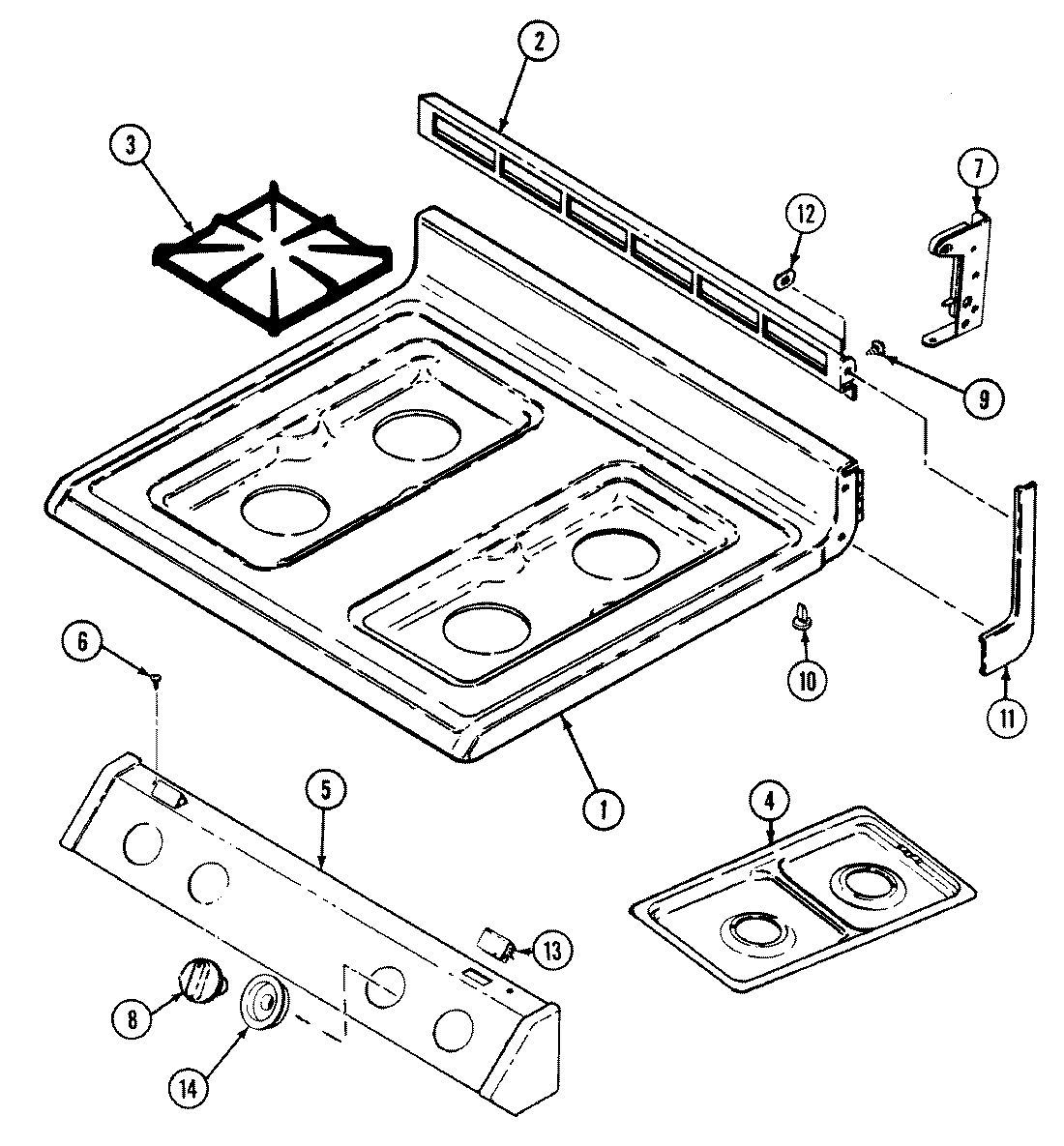

FCG20510W 06 – TOP ASSEMBLY

FCG20510W 06 – TOP ASSEMBLY

Written by

in

FCG20510W 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001532
2MAY 3608F042-26
3MAY 7518P026-60
4MAY 5401A452-60
5MAY 74002047
6MAY 7118P015-60
7W10856847 Whirlpool Knob Bezel
8WP74003769 Whirlpool Valve Knob
9SCREW (10ABX1/4P TR ZN)
10MAY 8016P015-60
11MAY 7746P033-60
11MAY 8270P095-60
11MAY 7746P032-60
12WP3195558 Whirlpool Nut
13MAY 7112P087-60
