FCG20600B 03 – DOOR/DRAWER – Aparts

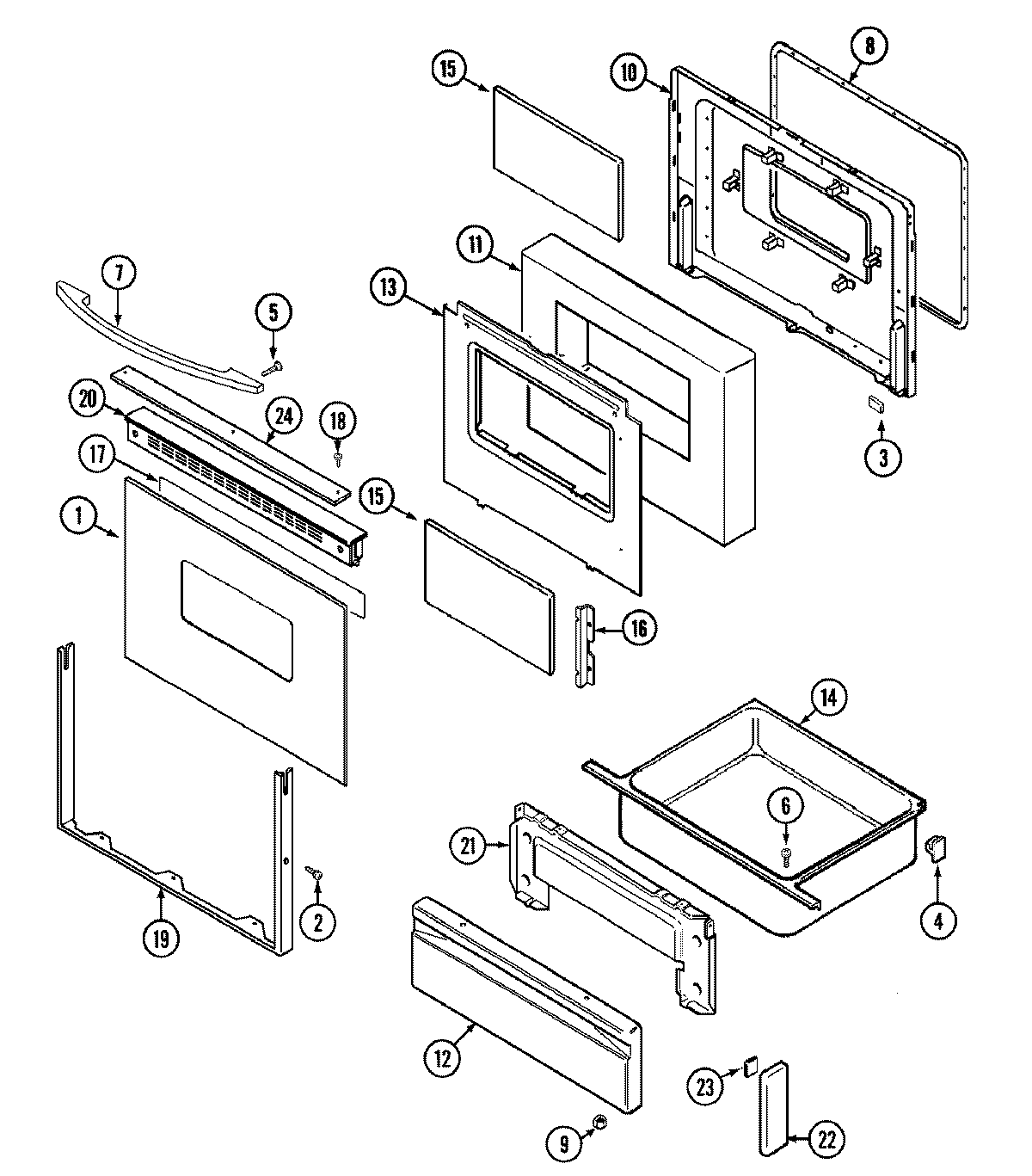

FCG20600B 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74002058
2	SCREW (8ABX1/2``-BLK)
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	WP179051 Whirlpool Screw
7	MAY 74002061
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7103P136-60
10	NUT, SNAP (ROUND-WHT)
10	MAY 2402W209-19
10	WP7103P114-60 Whirlpool Snap Nut
11	MAY 74001842
12	MAY 7101P290-60
12	MAY 2416W002-70
13	MAY 74001843
14	MAY 3405F018-80
15	MAY 74001841
16	MAY 74001844
17	TAPE, FOIL (3`` WIDE)
19	MAY 7706P309-60
20	MAY 74002065
20	SCREW
21	MAY 2404F044-80
22	MAY 7744P087-60
23	TAPE
