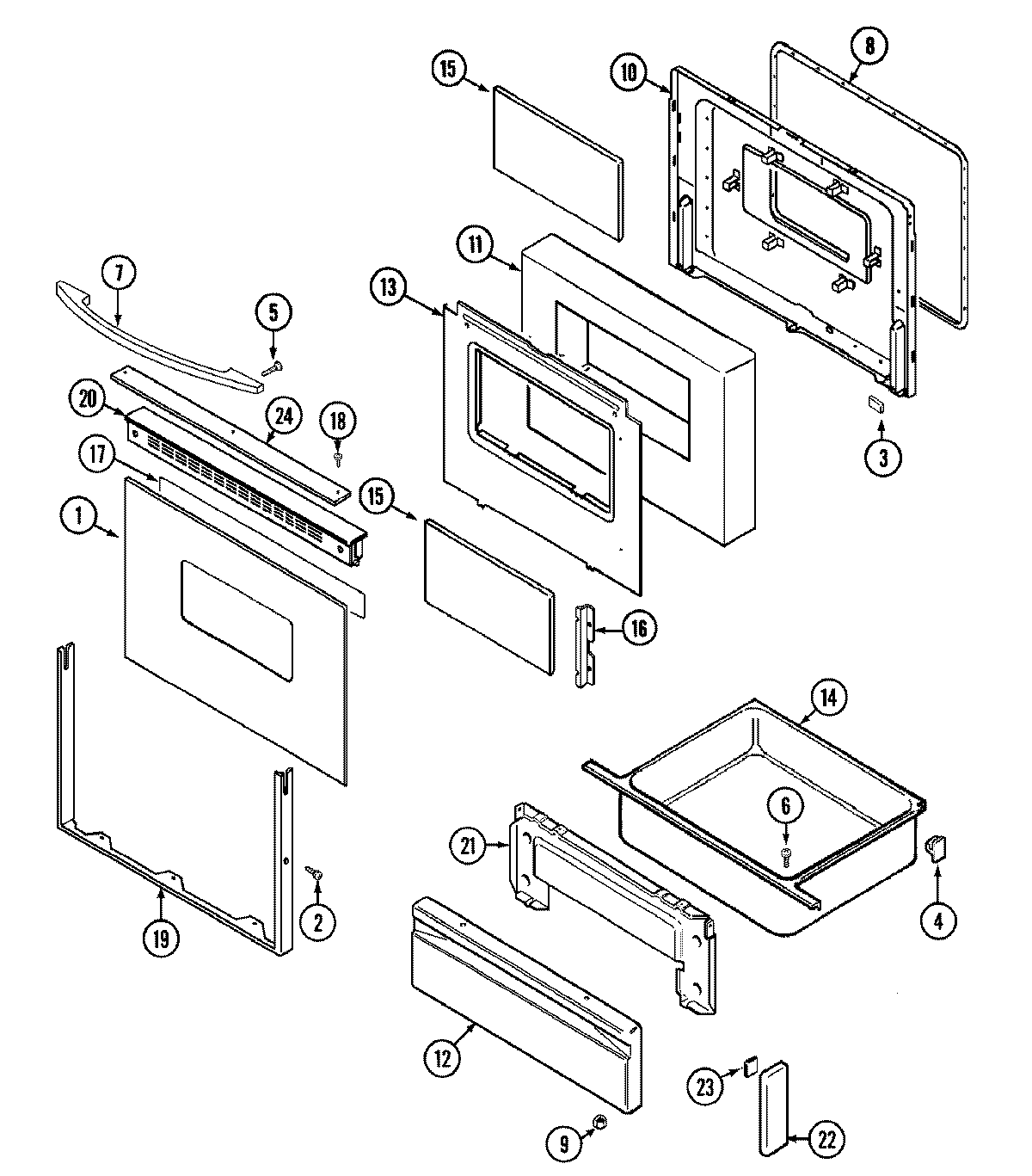

FCG20600W 03 – DOOR/DRAWER

FCG20600W 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74002057
2WP98008544 Whirlpool Screw Assembly
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5WP179051 Whirlpool Screw
7MAY 74002062
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 7103P136-60
10WP7103P114-60 Whirlpool Snap Nut
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
11MAY 74001842
12MAY 2416W002-71
12MAY 7101P290-60
13MAY 74001843
14MAY 3405F018-80
15MAY 74001841
16MAY 74001844
17TAPE, FOIL (3`` WIDE)
18MAY 74001278
19MAY 7706P310-60
20MAY 74002066
20SCREW
21MAY 2404F044-80
22MAY 7744P090-60
23TAPE
24MAY 7728P094-60
