FCG20610A 03 – DOOR/DRAWER – Aparts

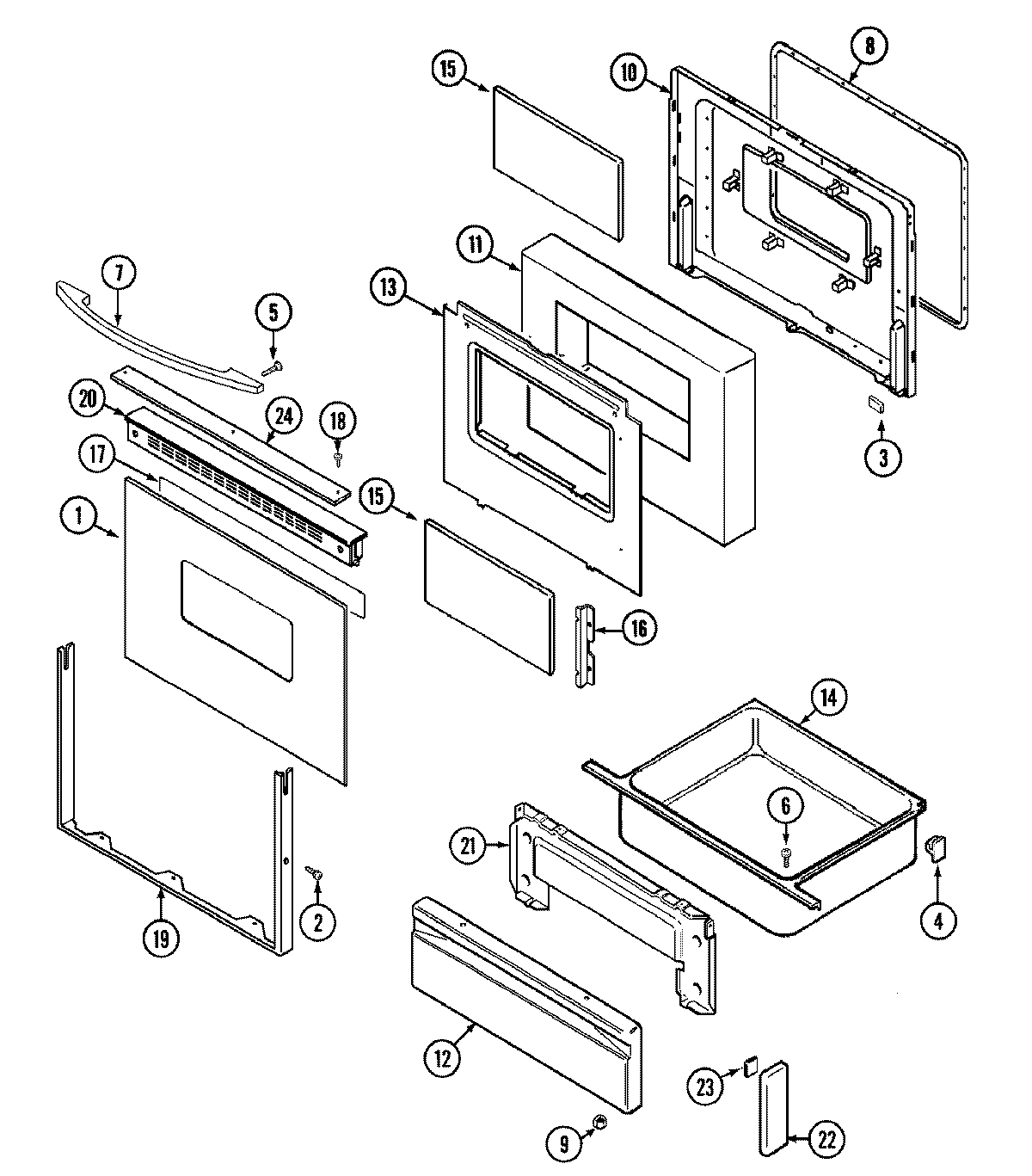

FCG20610A 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74002056
2	WP74009541 Whirlpool Screw Assembly
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
4	MAY 74003566
5	WP179051 Whirlpool Screw
7	MAY 74002060
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 74003244
10	MAY 7103P136-60
10	WP7103P114-60 Whirlpool Snap Nut
10	MAY 2402W209-19
10	NUT, SNAP (ROUND-WHT)
11	MAY 74001842
12	MAY 2416W002-74
12	MAY 74001478
12	MAY 7101P290-60
13	MAY 74001843
14	MAY 71003042
14	MAY 3405F018-80
15	MAY 74001841
16	MAY 74001844
17	TAPE, FOIL (3`` WIDE)
18	MAY 7101P370-60
19	MAY 7706P311-60
20	SCREW
20	MAY 74002064
21	MAY 2404F044-80
22	MAY 7744P091-60
23	TAPE
24	MAY 7728P095-60
