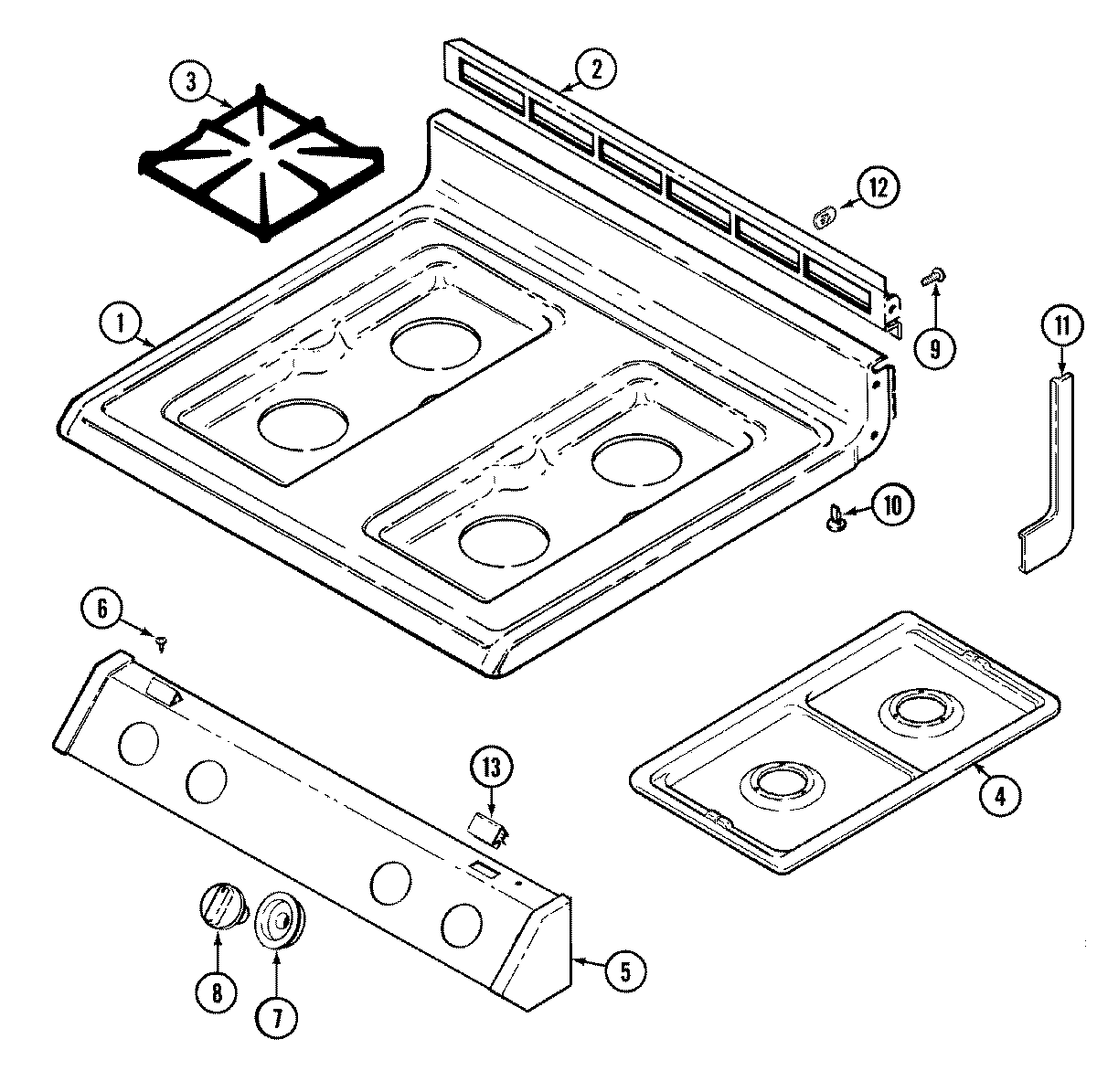

FCG20610B 06 – TOP ASSEMBLY

FCG20610B 06 – TOP ASSEMBLY

Written by

in

FCG20610B 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001531
2MAY 3608F042-09
3MAY 74001769
4MAY 5401A452-60
5MAY 74002046
6MAY 7118P015-60
7MAY 74002052
8WP74003781 Whirlpool Valve Knob
9SCREW (10ABX1/4P TR ZN)
10MAY 8016P015-60
11MAY 7746P030-60
11MAY 8270P095-60
11MAY 7746P031-60
12WP3195558 Whirlpool Nut
13MAY 7112P087-60
