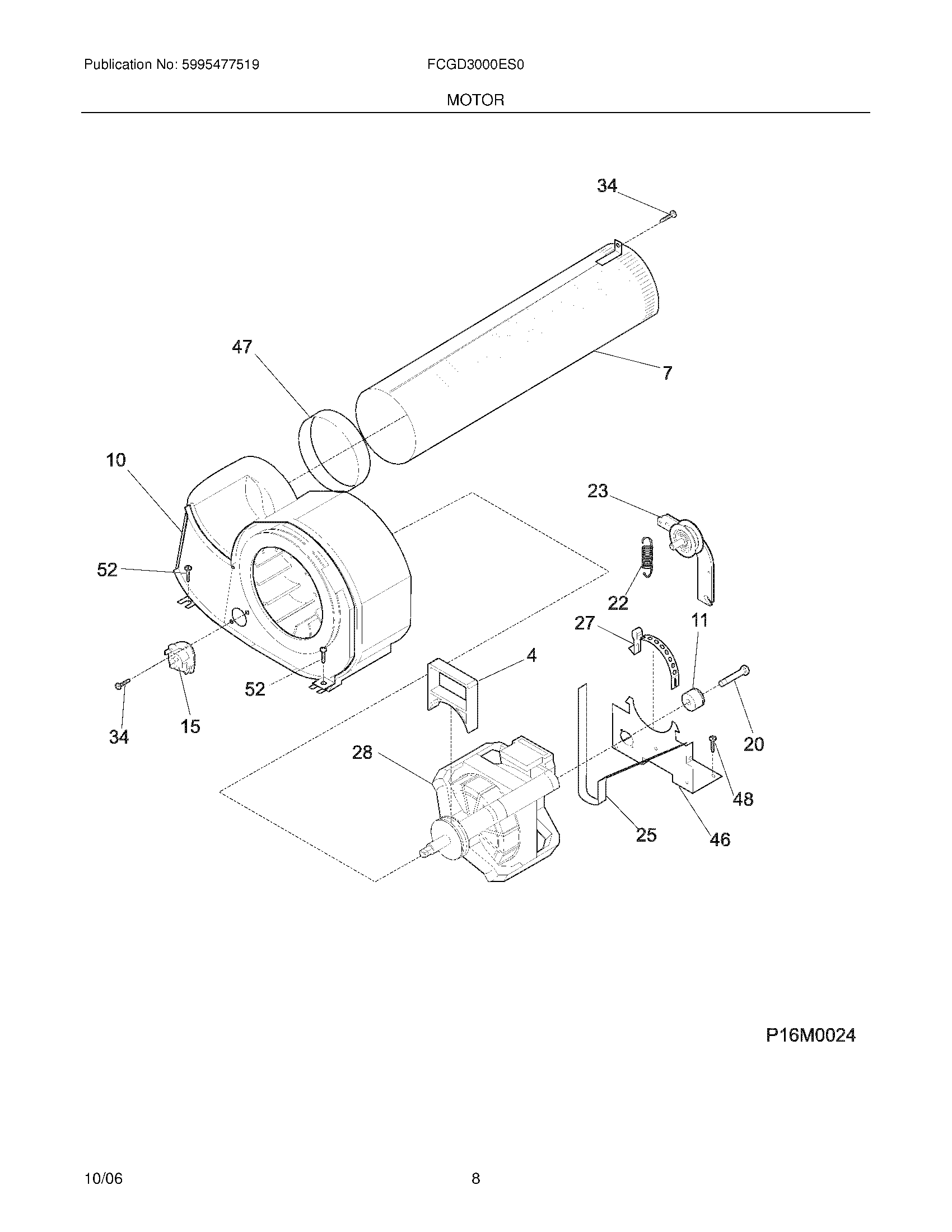

FCGD3000ES0 09 – MOTOR

Products

Position	Product
NI	Tube,exhaust ,side/bottom ,Optional Kit
4	131435200 Frigidaire Fan Housing Lock
7	Tube,exhaust ,rear ,w/mtg bracket
10	ASMY-BLWR HSG/COV/W
11	131749800 Frigidaire Spacer
15	WCI 131298400
20	131017900 Frigidaire Screw
22	131601000 Frigidaire Idler Spring Assembly
23	WCI 131863005
25	134503600 Frigidaire Dryer Belt
27	134242400 Frigidaire Washer Clamp Assembly
28	131560100 Frigidaire Dryer Drive Motor with Pulley
34	131243700 Frigidaire Screw
46	WCI 134203400
47	WCI 131633300
48	131168200 Frigidaire Dryer Screw
52	131202300 Frigidaire Screw
