FCM15RAWH FREEZER

FCM15RAWH FREEZER

Written by

in

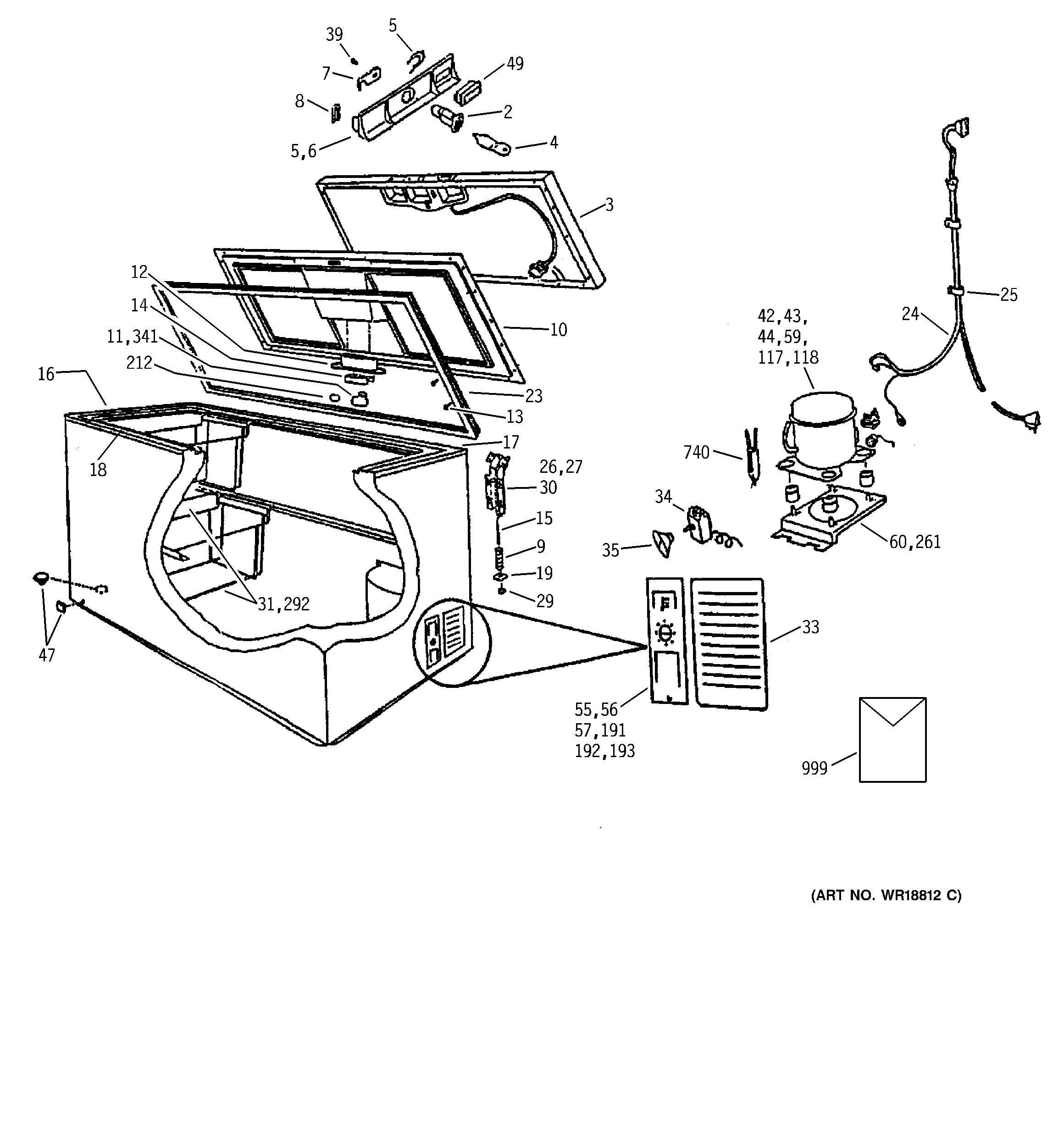

FCM15RAWH FREEZER

Products

Position	Product
2	GEN WR17X10873
3	OUTER LID PANEL/CLIPS
4	GEN WR17X10874
5	GEN WR12X10422
6	NAMEPLATE GE
7	GEN WR05X10003
8	GEN WR12X10423
9	GEN WR01X10229
10	GEN WR14X10087
10	WIRING HARNESS
11	GEN WR23X10195
12	GEN WR02X9549
13	GEN WR01X10222
14	GEN WR23X10197
15	GEN WR01X10223
16	GEN WR40X1771
17	GEN WR40X1772
18	GEN WR40X1773
19	GEN WR13X10153
23	GEN WR14X10086
24	GEN WR23X10193
25	GEN WR01X10231
26	GEN WR13X10158
27	GEN WR01X2193
29	GEN WR01X10224
30	GEN WR01X5616
31	GEN WR21X5119
33	GEN WR17X4263
34	GEN WR23X10188
35	KNOB THRMSTATTEMP CONT
39	GEN WR02X10778
42	GEN WR87X10052
43	GEN WR07X10037
44	GEN WR62X0099
47	DRAIN CAP – INR/OTR CAB
49	GEN WR23X10185
55	GEN WR23X0354
56	GEN WR09X10057
57	GEN WR23X5147
59	GEN WR01X5615
60	BASE COMPRESSOR MNT
117	GROMMET COMPRESSOR MTG.
118	COVER RELAY PROTECTOR
191	SCREW CONTROL BOX MNT
192	DECAL-CONTROL BOX MNT
193	GEN WR23X10198
212	GEN WR23X10194
261	BRACKET
292	GEN WR02X10774
341	GEN WR23X10199
740	WR86X25269 GE Refrigerator R134 Dryer
999	GEN 1-35736
999	GEN 49-60118
