FCM16SLBWW FREEZER

FCM16SLBWW FREEZER

Written by

in

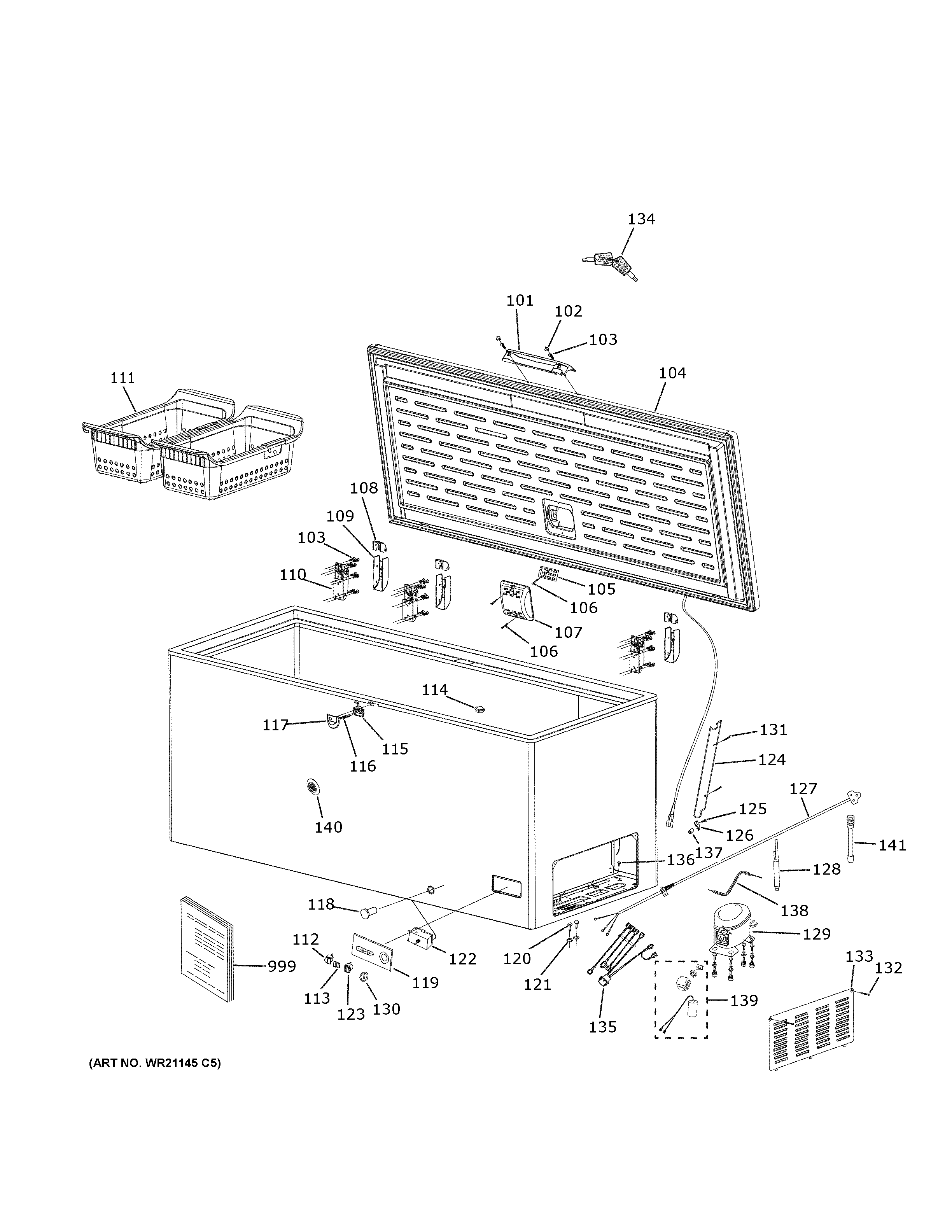

FCM16SLBWW FREEZER

Products

Position	Product
101	WR12X28041 GE Refrigerator Freezer Door Handle – White
102	WR01X28054 GE Cover Screw White
103	WR01X35245 GE Refrigerator Screw
104	WR78X36605 GE Refrigerator White Freezer Door & Gasket
105	WR55X29591 GE Refrigerator LED Board
106	WR01X28030 GE Screw St3.5 X 13
107	LED LIGHT COVER
108	WR13X28037 GE White Top Hinge Cover
109	WR13X28039 GE Bottom Cover White
110	WR13X28035 GE Refrigerator Hinge Freezer Door 16'
111	WR71X28046 GE Refrigerator Upper Freezer Basket
112	WR01X40145 GE Green Light
113	LIGHT COVER
114	WR01X28051 GE Refrigerator Interior Drain Plug
115	WR01X28052 GE Refrigerator Door Lock
116	SCREW
117	WR13X28055 GE Refrigerator Door Lock Cover
118	WR01X36306 GE Refrigerator Exterior Drain Plug
119	WR13X29589 GE Control Panel Cover
120	GROUNDING SCREW M4 X 8
121	WASHER
122	WR09X27830 GE Freezer Thermostat
123	WR01X40146 GE Red Light
124	HARNESS DOOR COVER
125	SCREW ST4.2 X 13
126	CLAMP POWER CORD
127	WR55X28031 GE Refrigerator Power Cord
128	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
129	WR87X32068 GE Refrigerator Compressor
130	THERMOSTAT KNOB
131	WR01X27789 GE Refrigerator Screw ST3.5 x 9.5
132	WR01X27843 GE Screw 3.5 x 13
133	WR14X36085 GE Refrigerator Access Cover
134	WR01X28053 GE Refrigerator Freezer Door Key
135	WR55X29596 GE Wire Harness
136	WR01X10745 GE Wire Tie
137	WR02X12194 GE Refrigerator Rubber Grommet
138	WR01X29595 GE Tube
139	WR87X32069 GE Refrigerator Compressor Electrical
140	WR04X10222 GE Refrigerator Badge Assembly
141	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
