FCM22DLCWW FREEZER

FCM22DLCWW FREEZER

Written by

in

FCM22DLCWW FREEZER

Products

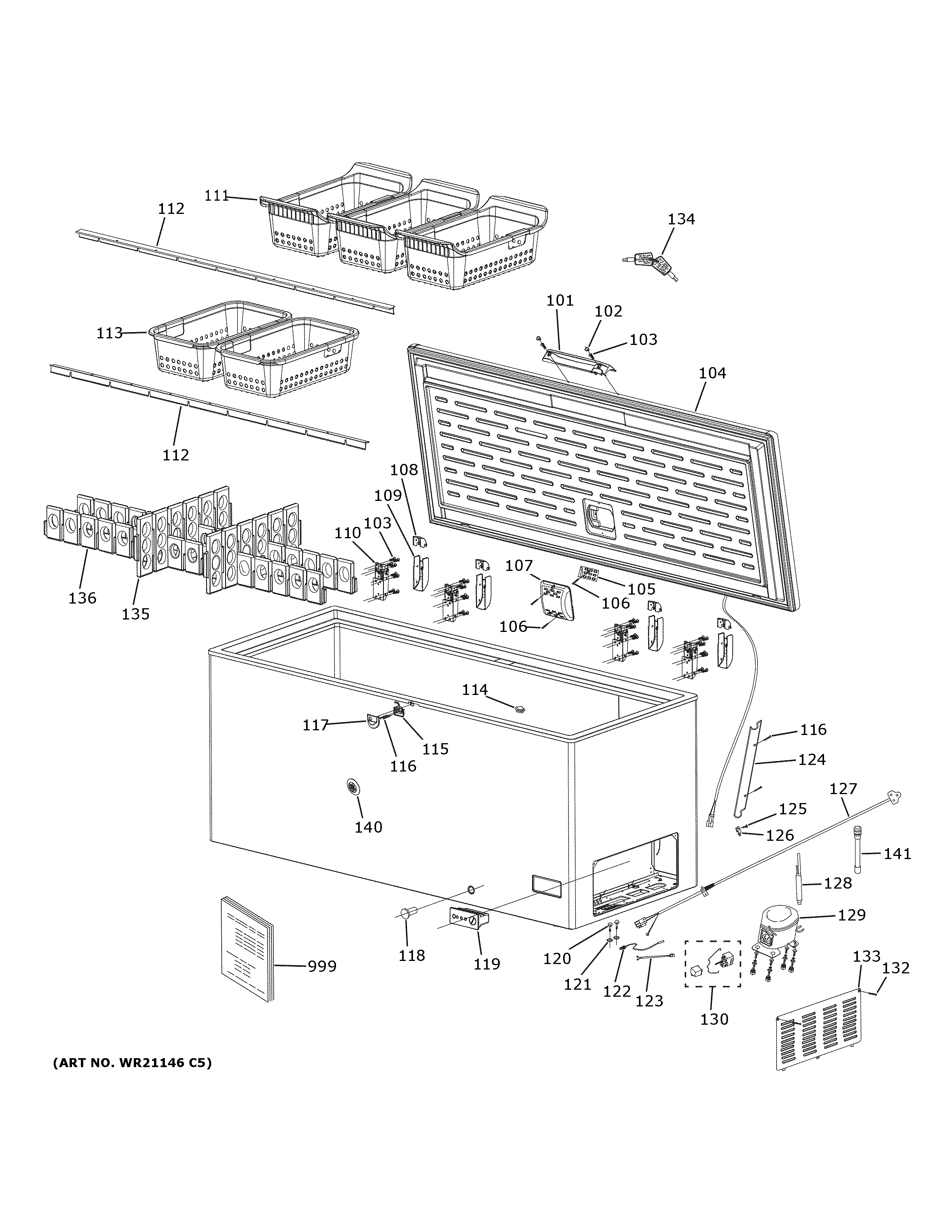

Position	Product
101	WR12X28041 GE Refrigerator Freezer Door Handle – White
102	WR01X28054 GE Cover Screw White
103	WR01X35245 GE Refrigerator Screw
104	WR78X28042 GE Refrigerator Freezer Door Gasket White
105	LED LIGHT
106	WR01X28030 GE Screw St3.5 X 13
107	LED LIGHT COVER
108	WR13X28036 GE Refrigerator Hinge Cover Top White
109	WR13X28038 GE Bottom Hinge Cover White
110	WR13X46626 GE Freezer Door
111	WR71X28047 GE Refrigerator Upper Freezer Basket
112	WR71X28028 GE Refrigerator Shelf Support
113	WR71X28049 GE Refrigerator Freezer Basket Lower
114	WR01X28051 GE Refrigerator Interior Drain Plug
115	WR01X28052 GE Refrigerator Door Lock
116	WR01X27789 GE Refrigerator Screw ST3.5 x 9.5
117	WR13X28055 GE Refrigerator Door Lock Cover
118	WR01X36306 GE Refrigerator Exterior Drain Plug
119	WR09X28056 GE Refrigerator Control Panel
120	GROUNDING SCREW M4 X 8
121	WASHER
122	WR55X28029 GE Refrigerator Sensor
123	WR55X28057 GE Compressor Harness
124	HARNESS DOOR COVER
125	SCREW ST4.2 X 13
126	CLAMP POWER CORD
127	WR55X28031 GE Refrigerator Power Cord
128	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
129	WR87X32068 GE Refrigerator Compressor
130	WR87X32069 GE Refrigerator Compressor Electrical
132	WR01X27843 GE Screw 3.5 x 13
133	WR14X36085 GE Refrigerator Access Cover
134	WR01X28053 GE Refrigerator Freezer Door Key
135	WR14X28044 GE Refrigerator Short Freezer Divider
136	WR14X28045 GE Freezer Long Divider
140	WR04X10222 GE Refrigerator Badge Assembly
141	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
