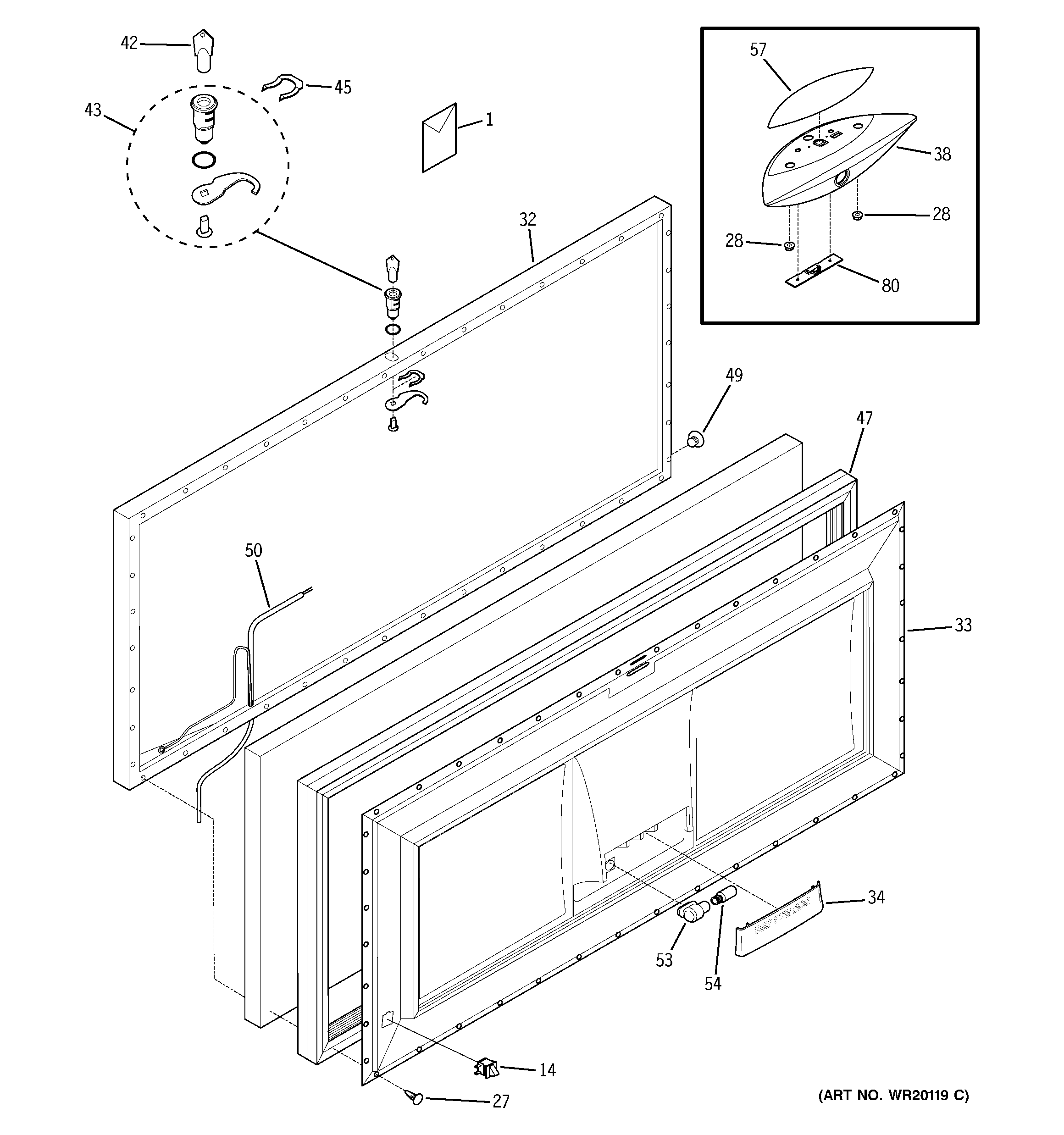

FCM25SUAWW FREEZER DOOR

Products

PositionProduct
1GEN 31-51713
1GEN 49-60504
14WR23X10303 GE Refrigerator Light Switch
27GEN WR01X1520D
28WR01X10492 GE Fastener .330" Diameter Stud
32PANEL OUTER DOOR WH
33PANEL INNER WH
34GEN WR02X12443
38HANDLE WH
42KEY
43WR05X10028 GE Refrigerator Lock Assembly
45GEN WR01X10679
47GEN WR24X10001
49WR02X11935 GE White 1/4" Plug Button
50GEN WR23X10541
53GEN WR23X10302
54GEN PURCH. LOCAL2
57OVERLAY
80SCREW#3-24 x .25
80GEN WR55X10696
