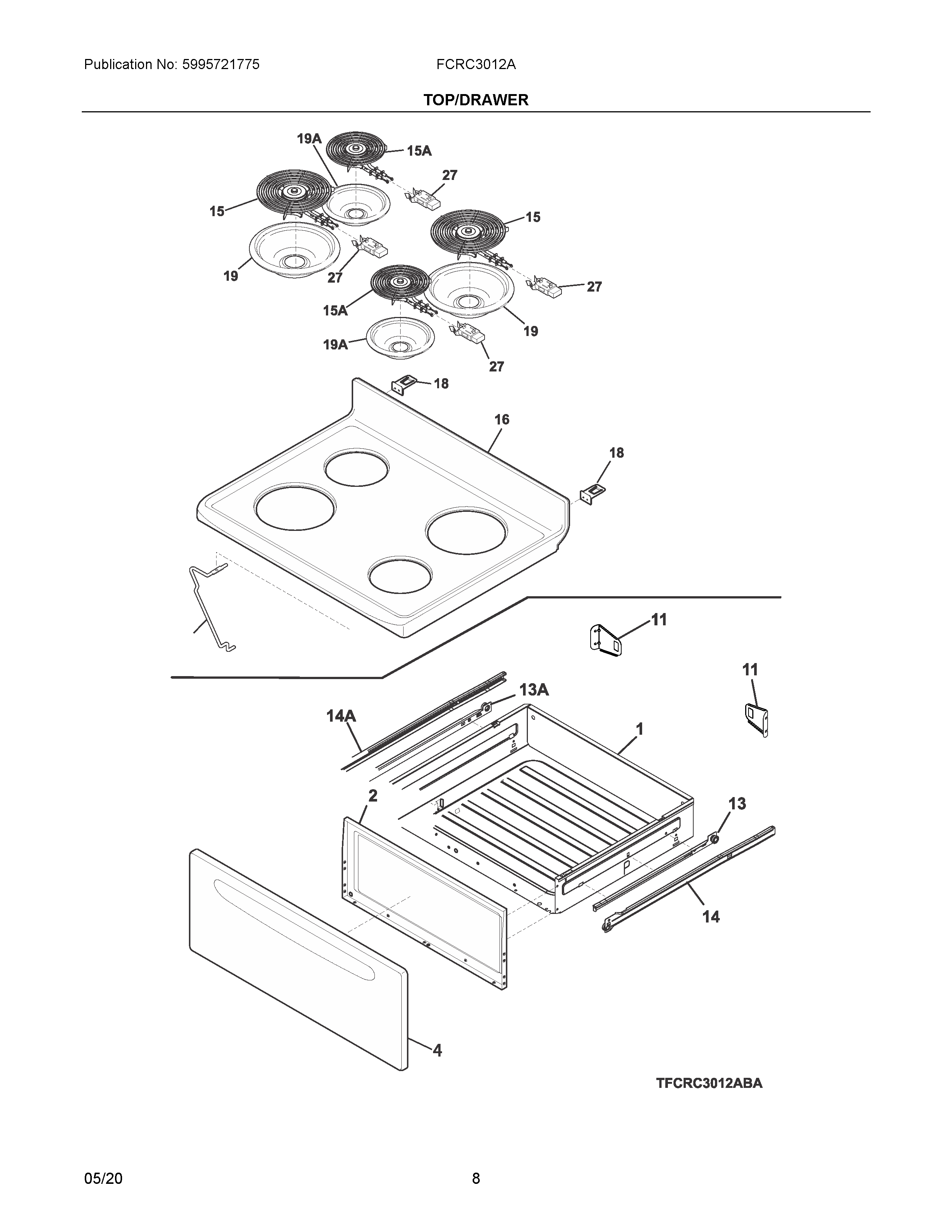

FCRC3012AWB 04 – TOP/DRAWER

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316418901 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	316021132 Frigidaire Screw
NI	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304511973 Frigidaire Oven Panel
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14A	5304517902 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15	5304516159 Frigidaire Oven Range Limiter Element 8"
15A	5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
16	5304531767 Frigidaire Maintop
17	316057601 Frigidaire Oven Rod
18	316580800 Frigidaire Hinge Bracket
19A	A316222201 Frigidaire Oven Drip Bowl Assembly
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27	5304516152 Frigidaire Oven Wiring Harness
69	5303288565 Frigidaire Screw
