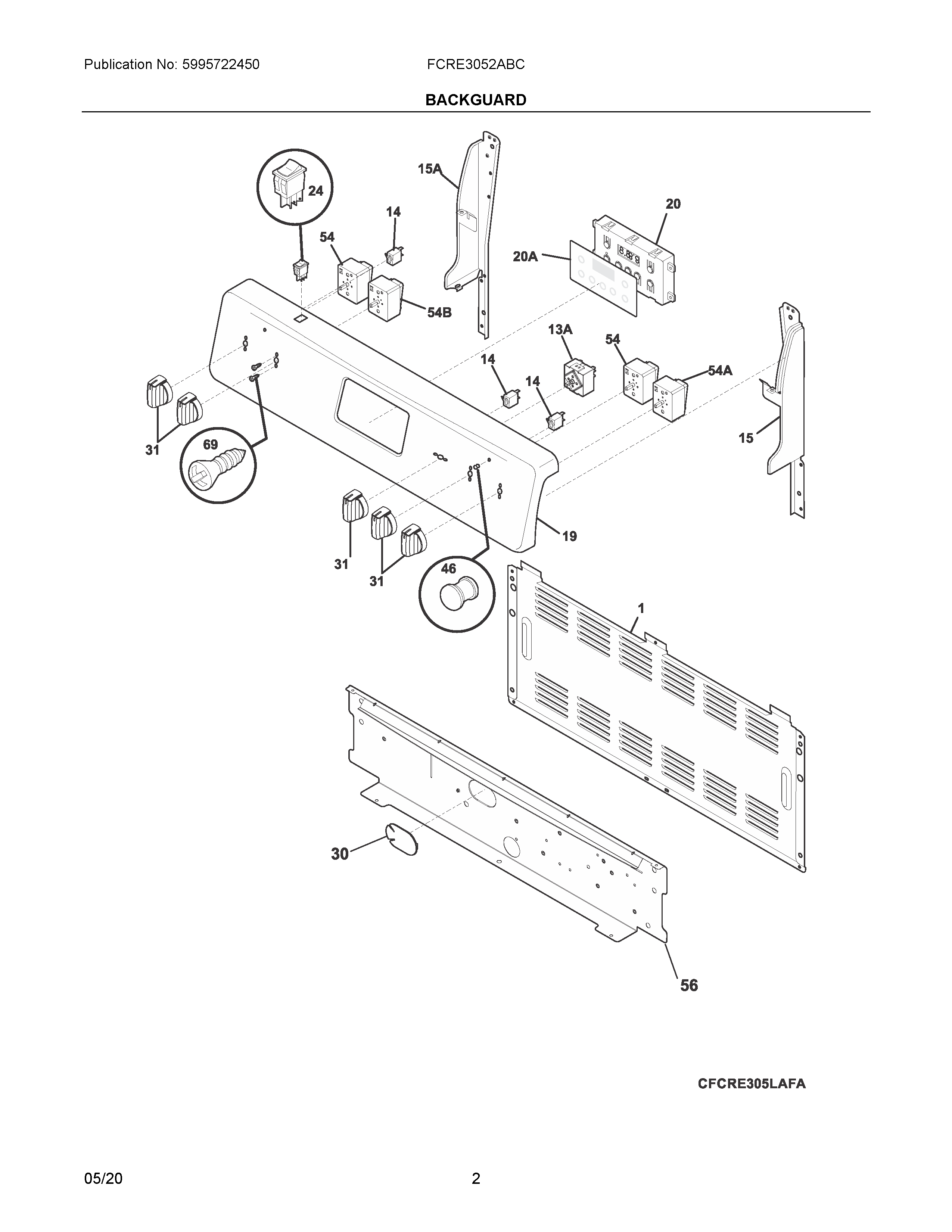

FCRE3052ABC 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5308014215 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316281802 Frigidaire Oven Shield
13A	5304522964 Frigidaire Switch
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15	5304493644 Frigidaire Oven Cap
15A	5304493646 Frigidaire Oven Cap
19	5304520702 Frigidaire Panel
20A	OVERLAY
20	CONTROL
24	5304527841 Frigidaire Oven Rocker Switch (Black)
30	316577600 Frigidaire Plug
31	5304508956 Frigidaire Oven Knob
46	316557300 Frigidaire Range Indicator Light Lens
54B	5304522918 Frigidaire Oven Surface Element Switch
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
56	316234045 Frigidaire Oven Shield
69	5303288565 Frigidaire Screw
