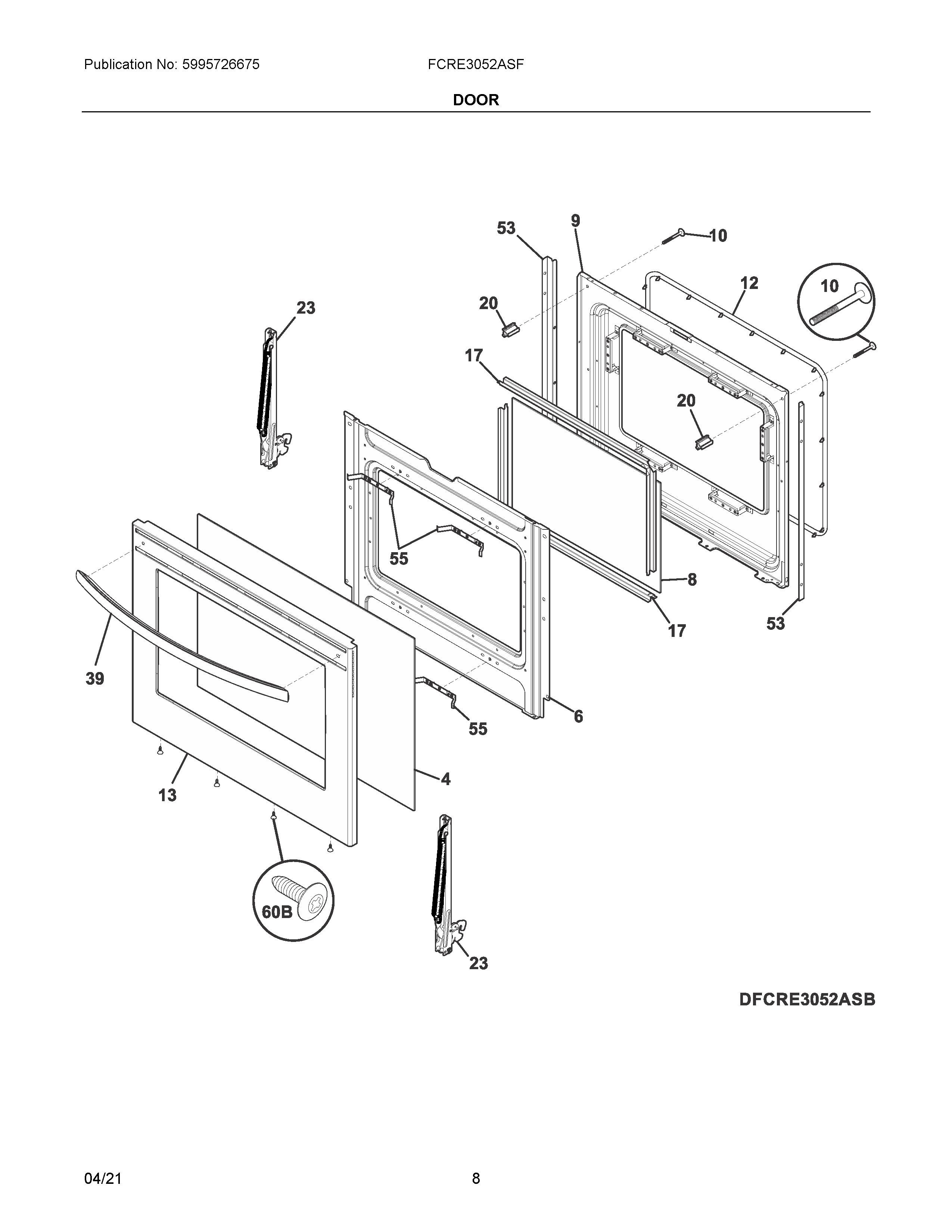

FCRE3052ASF 05 – DOOR

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NIA	316418900 Frigidaire Oven Screw
NI	316483102 Frigidaire Oven Label
NI	316021105 Frigidaire Oven Screw
4	316452758 Frigidaire Oven Outer Door Glass
6	316406328 Frigidaire Shield
8	5304503232 Frigidaire Oven Inner Door Glass
9	316423719 Frigidaire Liner
10	Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12	5304498835 Frigidaire Oven Seal
13	5304532514 Frigidaire Panel
17	5304504811 Frigidaire Glass Spacer
20	316284100 Frigidaire Oven Spacer Assembly
23	316575909 Frigidaire Range Door Hinge
39	HANDLE-DOOR SS 30IN
53	5304532042 Frigidaire Shield-Filler Door
55	316408300 Frigidaire Oven Bracket
60B	316021109 Frigidaire Oven Screw
