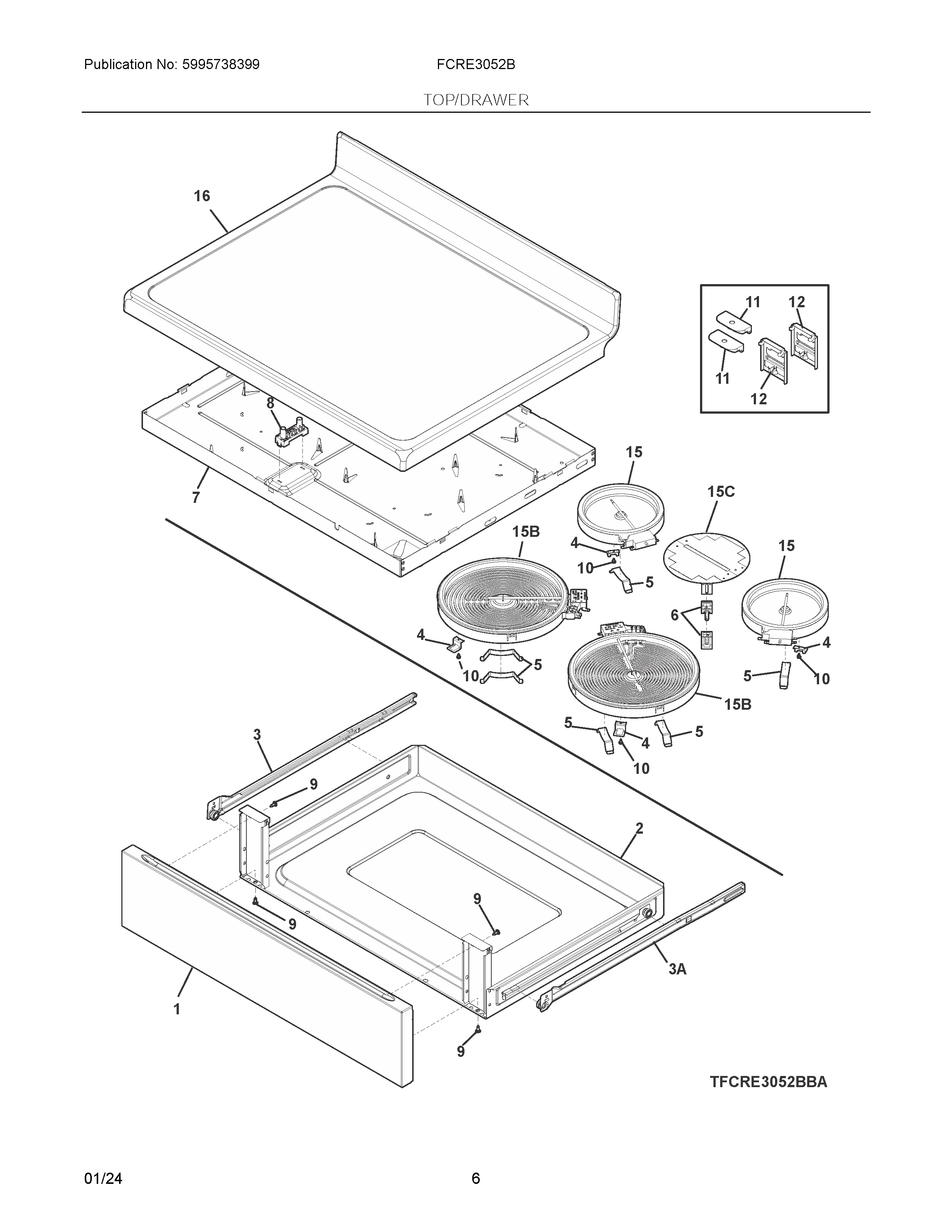

FCRE3052BBB 04 – TOP/DRAWER

Products

Position	Product
NI	HARNESS
NI	387856311 Frigidaire Screw
1	5304526302 Frigidaire Panel
2	5304526448 Frigidaire Drawer Assembly
3A	5304526307 Frigidaire Glide
3	5304526306 Frigidaire Glide
4	387683300 Frigidaire Bracket
5	SPRING, ELEMENT SUPPORT
6	CLIP, SPRING, ELEMENT
7	BURNER BOX, SMOOTHTOP
8	INDICATOR-LIGHT 250
9	5304526533 Frigidaire Screw
10	SCREW
11	CLIP, ALIGNMENT, COOKTOP
12	5304534653 Frigidaire Clip Assembly
15B	5304533520 Frigidaire Element
15C	ELEMENT,RADIANT,100W,WARMER
15	318178110 Frigidaire Oven Range 6" Surface Element
16	5304534795 Frigidaire Top
