FCRE3052BSA 02 – BACKGUARD

FCRE3052BSA 02 – BACKGUARD

Written by

in

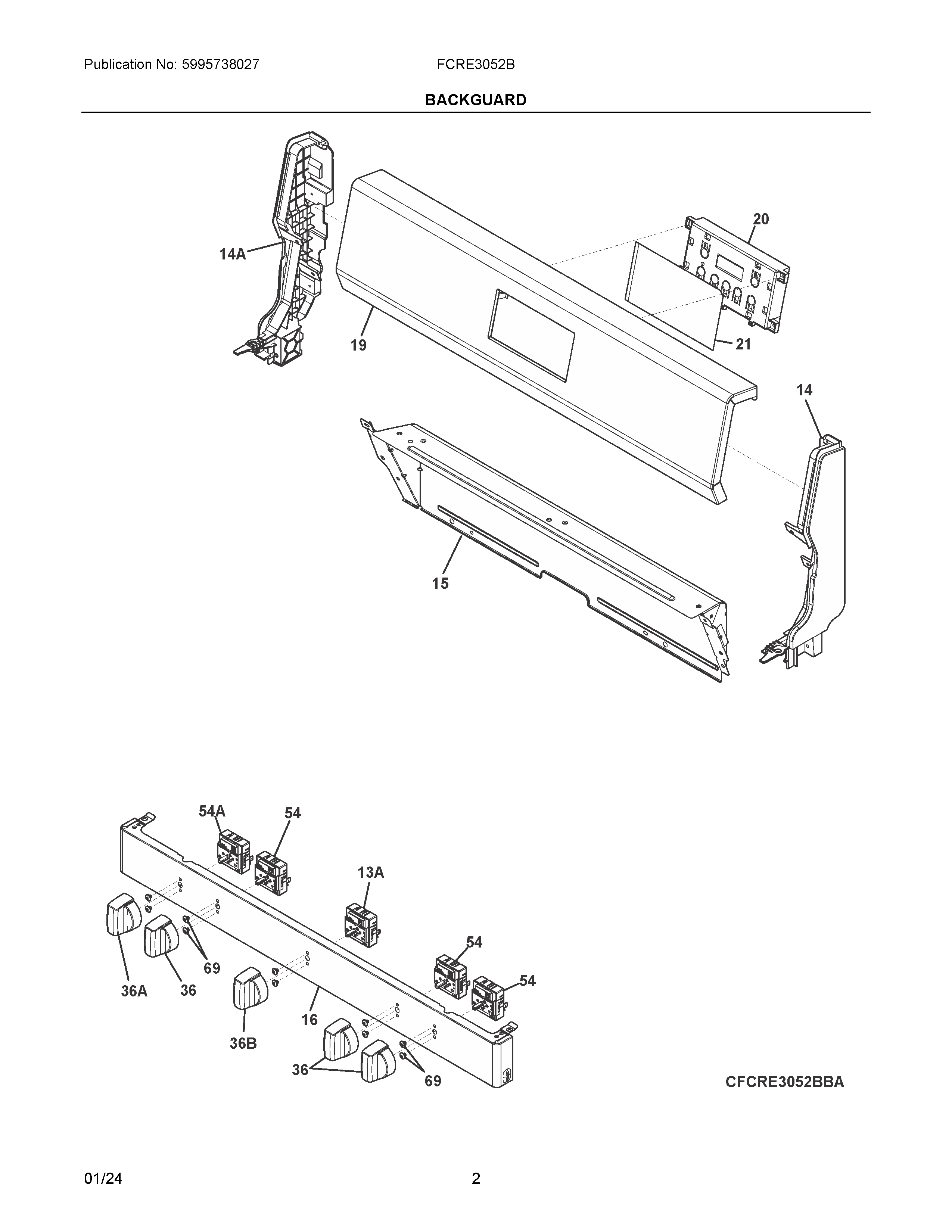

FCRE3052BSA 02 – BACKGUARD

Products

PositionProduct
NIHARNESS, WIRING, ENERGY REGULTRS
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NISCREW
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NI5304526234 Frigidaire Screw
NI5304526533 Frigidaire Screw
13A5304522964 Frigidaire Switch
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, INNER
16PANEL, MAINFOLD, STAINLESS
19CONTROL PANEL, ASSEMBLY, STEEL/GLASS, STAINLESS/BLACK, W/CNTL BRACKET
205304536331 Frigidaire Controller
215304534804 Frigidaire Overlay Assembly
36B5304521976 Frigidaire Knob
36A5304515468 Frigidaire Knob Assembly
36KNOB
545304522966 Frigidaire Switch
54A5304522918 Frigidaire Oven Surface Element Switch
695304526494 Frigidaire Screw
