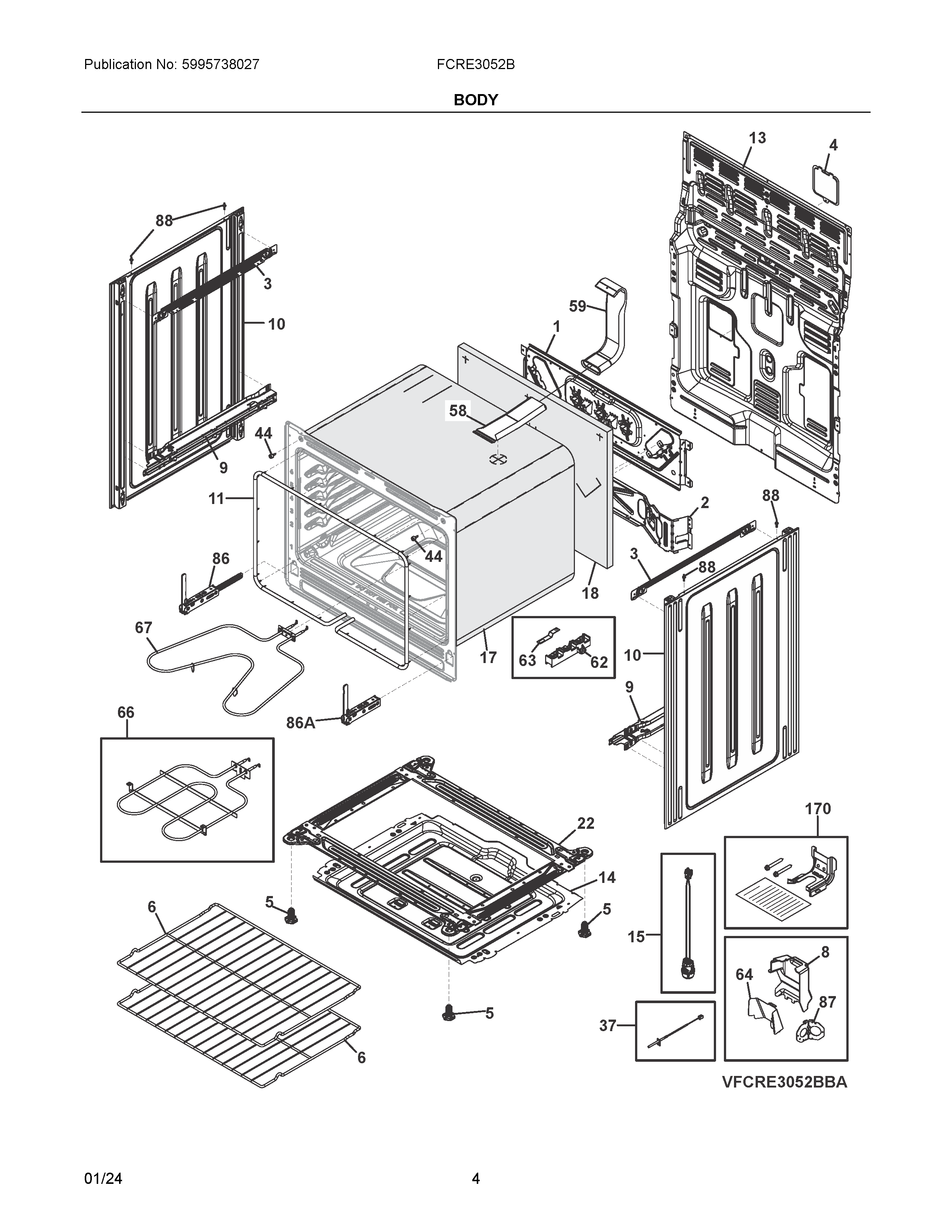

FCRE3052BSA 03 – BODY

FCRE3052BSA 03 – BODY

Written by

in

FCRE3052BSA 03 – BODY

Products

PositionProduct
NI5304526533 Frigidaire Screw
NISCREW, SELF DRILL, M3.5 X 9.5
NIA5304526234 Frigidaire Screw
NIA5304526532 Frigidaire Screw
NISTANDOFF, HARNESS, PLASTIC
NISCREW, T20,
NI387856311 Frigidaire Screw
NIAWCI 5304533472
NIAWCI 387872717
NIB316205500 Frigidaire Oven Nut
NISCREW
NIA316001017 Frigidaire Screw
NIAWCI 5304533495
NIHARNESS, WIRING, MAIN
NICWCI 5304528293
1BRACKET
2BRACKET, COMPONENTS, LOWER
35304526493 Frigidaire Bracket
45304528328 Frigidaire Cover
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
65304531722 Frigidaire Rack
85304528549 Frigidaire Cover
95304528546 Frigidaire Receptacle
105304526334 Frigidaire Panel
115304526243 Frigidaire Seal
13SHIELD, REAR WIRE
14SHIELD, INSULATION, LOWER
155304533411 Frigidaire Lamp Assembly
17INSULATION, OVEN WRAPPER
18INSULATION, OVEN BACK
22BASE RAIL, ASSEMBLY
245304534653 Frigidaire Clip Assembly
375304526310 Frigidaire Probe
44316517600 Frigidaire Oven Spacer
58TUBE, VENT, LOWER
59VENT TUBE, ASSEMBLY, UPPER
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
645304528550 Frigidaire Shield
66ELEMENT
67ELEMENT, BAKE, 2600W
865304534789 Frigidaire Hinge
86A5304534790 Frigidaire Hinge
87BRACKET, POWER CORD
88PIN, GUIDE
170316112010 Frigidaire Anti Tip Kit
