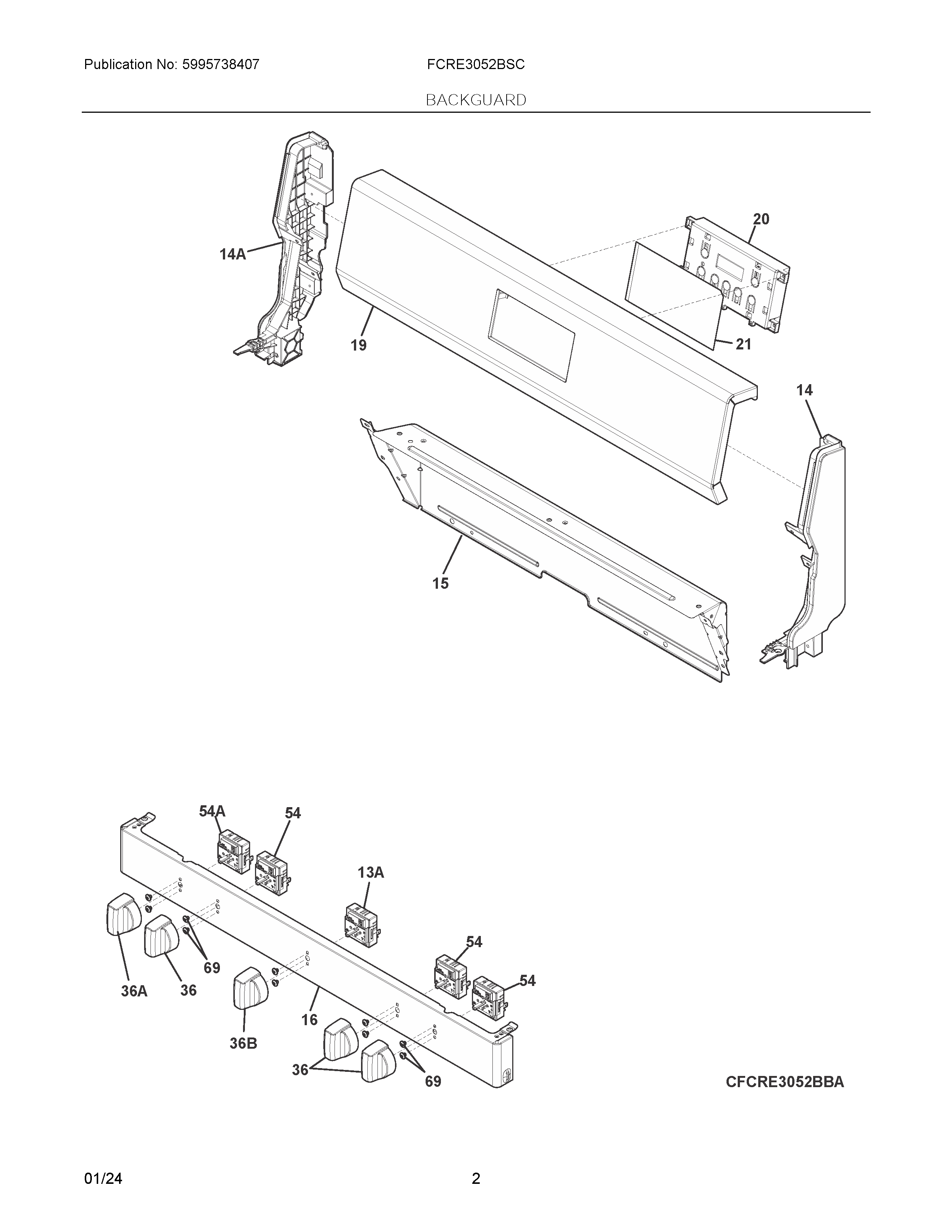

FCRE3052BSC 02 – BACKGUARDadmin2025-04-26T10:52:13+00:00FCRE3052BSC 02 – BACKGUARD
Products
| Position | Product |
|---|
| NI | SCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED |
| NI | HARNESS-ENERGY REGULATOR 5S |
| NI | 5304526533 Frigidaire Screw |
| NI | 5304526234 Frigidaire Screw |
| NI | SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED |
| NI | SCREW |
| 13A | 5304522964 Frigidaire Switch |
| 14 | END CAP |
| 14A | END CAP |
| 15 | SHIELD, BACKGUARD, INNER |
| 16 | PANEL, MAINFOLD, STAINLESS |
| 19 | CONTROL PANEL, ASSEMBLY, STEEL/GLASS, STAINLESS/BLACK, W/CNTL BRACKET |
| 20 | 5304536331 Frigidaire Controller |
| 21 | 5304534804 Frigidaire Overlay Assembly |
| 36B | 5304521976 Frigidaire Knob |
| 36A | 5304515468 Frigidaire Knob Assembly |
| 36 | KNOB |
| 54 | 5304522966 Frigidaire Switch |
| 54A | 5304522918 Frigidaire Oven Surface Element Switch |
| 69 | 5304526494 Frigidaire Screw |
