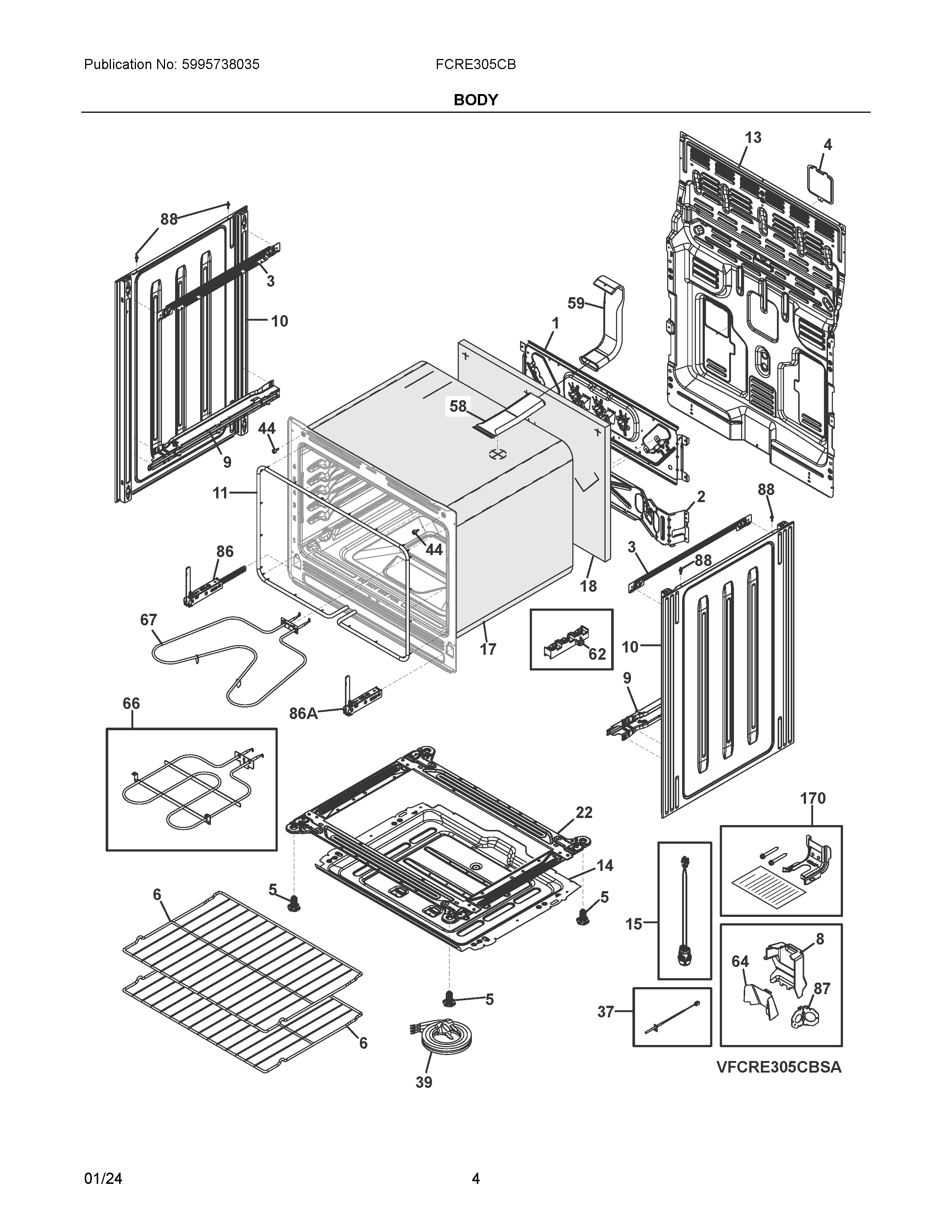

FCRE305CBSA 03 – BODY

Products

Position	Product
NIC	WCI 5304528293
NI	STANDOFF, HARNESS, PLASTIC
NI	SCREW, SELF DRILL, M3.5 X 9.5
NIA	5304526234 Frigidaire Screw
NI	5304526532 Frigidaire Screw
NI	SCREW, T20,
NI	5304526533 Frigidaire Screw
NI	387856311 Frigidaire Screw
NIA	WCI 5304533472
NIA	WCI 387872717
NI	HARNESS, WIRING, MAIN
NIA	WCI 5304533495
NIA	316001017 Frigidaire Screw
NI	SCREW
NIB	316205500 Frigidaire Oven Nut
1	BRACKET
2	BRACKET, COMPONENTS, LOWER
3	5304526493 Frigidaire Bracket
4	5304528328 Frigidaire Cover
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	5304531722 Frigidaire Rack
8	5304528549 Frigidaire Cover
9	5304528546 Frigidaire Receptacle
10	5304526334 Frigidaire Panel
11	5304526243 Frigidaire Seal
13	SHIELD, REAR WIRE
14	SHIELD, INSULATION, LOWER
15	5304533411 Frigidaire Lamp Assembly
17	INSULATION, OVEN WRAPPER
18	INSULATION, OVEN BACK
22	BASE RAIL, ASSEMBLY
24	5304534653 Frigidaire Clip Assembly
37	5304526310 Frigidaire Probe
39	POWER CORD, ELECTRIC SERVC
44	316517600 Frigidaire Oven Spacer
58	TUBE, VENT, LOWER
59	VENT TUBE, ASSEMBLY, UPPER
62	5303935271 Frigidaire Oven Terminal Block
64	5304528550 Frigidaire Shield
66	ELEMENT
67	ELEMENT, BAKE, 2600W
86	5304534789 Frigidaire Hinge
86A	5304534790 Frigidaire Hinge
87	BRACKET, POWER CORD
88	PIN, GUIDE
170	316112010 Frigidaire Anti Tip Kit
