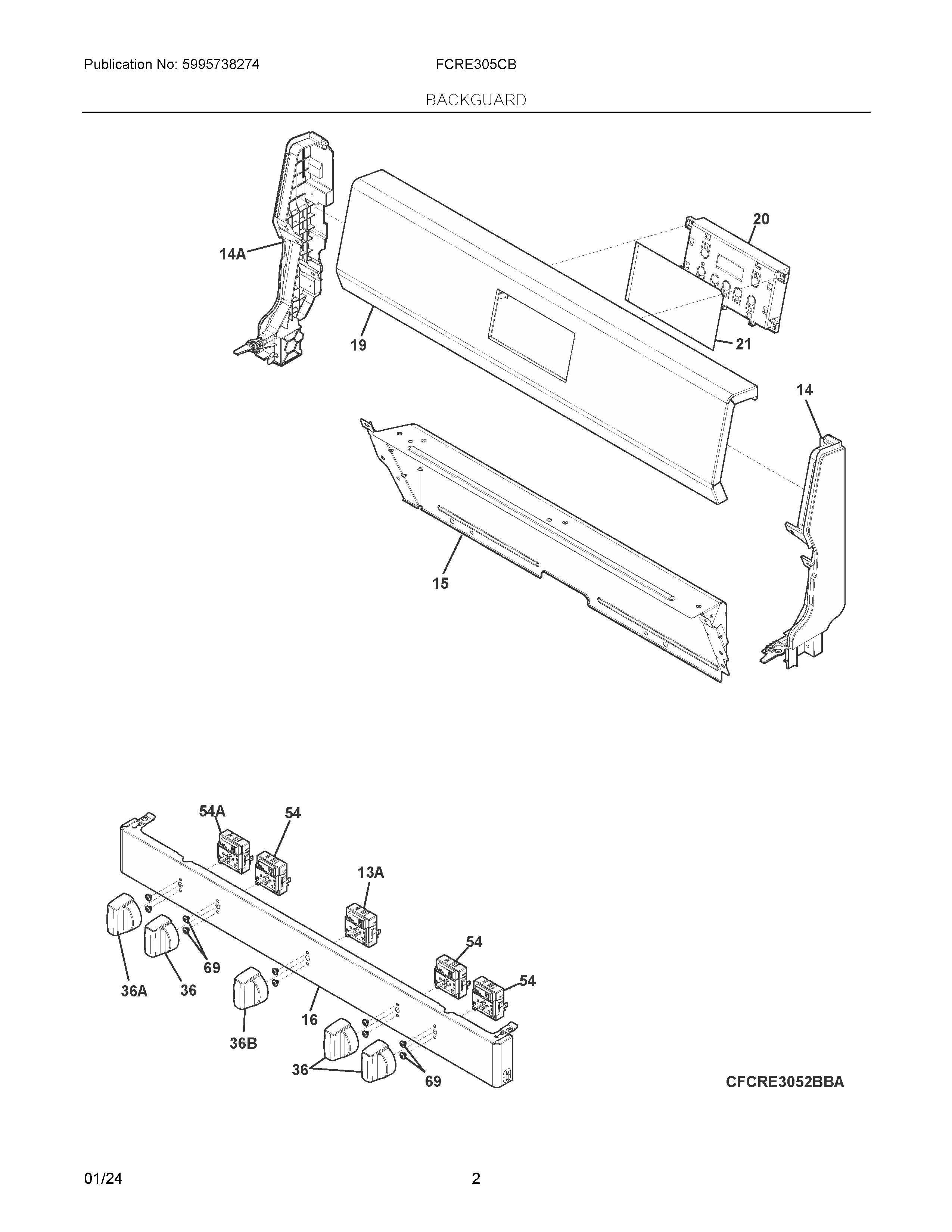

FCRE305CBWB 02 – BACKGUARD

FCRE305CBWB 02 – BACKGUARD

Written by

in

FCRE305CBWB 02 – BACKGUARD

Products

PositionProduct
NISCREW
NIHARNESS-ENERGY REGULATOR 5S
NI5304526533 Frigidaire Screw
NI5304526234 Frigidaire Screw
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
13A5304522964 Frigidaire Switch
14A5304534818 Frigidaire End Cap Assembly
145304534817 Frigidaire End Cap
15SHIELD, BACKGUARD, INNER
16PANEL
19CONTROL PANEL, ASSEMBLY, STEEL/GLASS, WHITE/BLACK, W/CNTL BRACKET
205304536331 Frigidaire Controller
215304534804 Frigidaire Overlay Assembly
36A5304515469 Frigidaire Knob-Infinite Switch
36B5304521977 Frigidaire Knob Assembly
365304526250 Frigidaire Knob
54A5304522918 Frigidaire Oven Surface Element Switch
545304522966 Frigidaire Switch
695304526494 Frigidaire Screw
