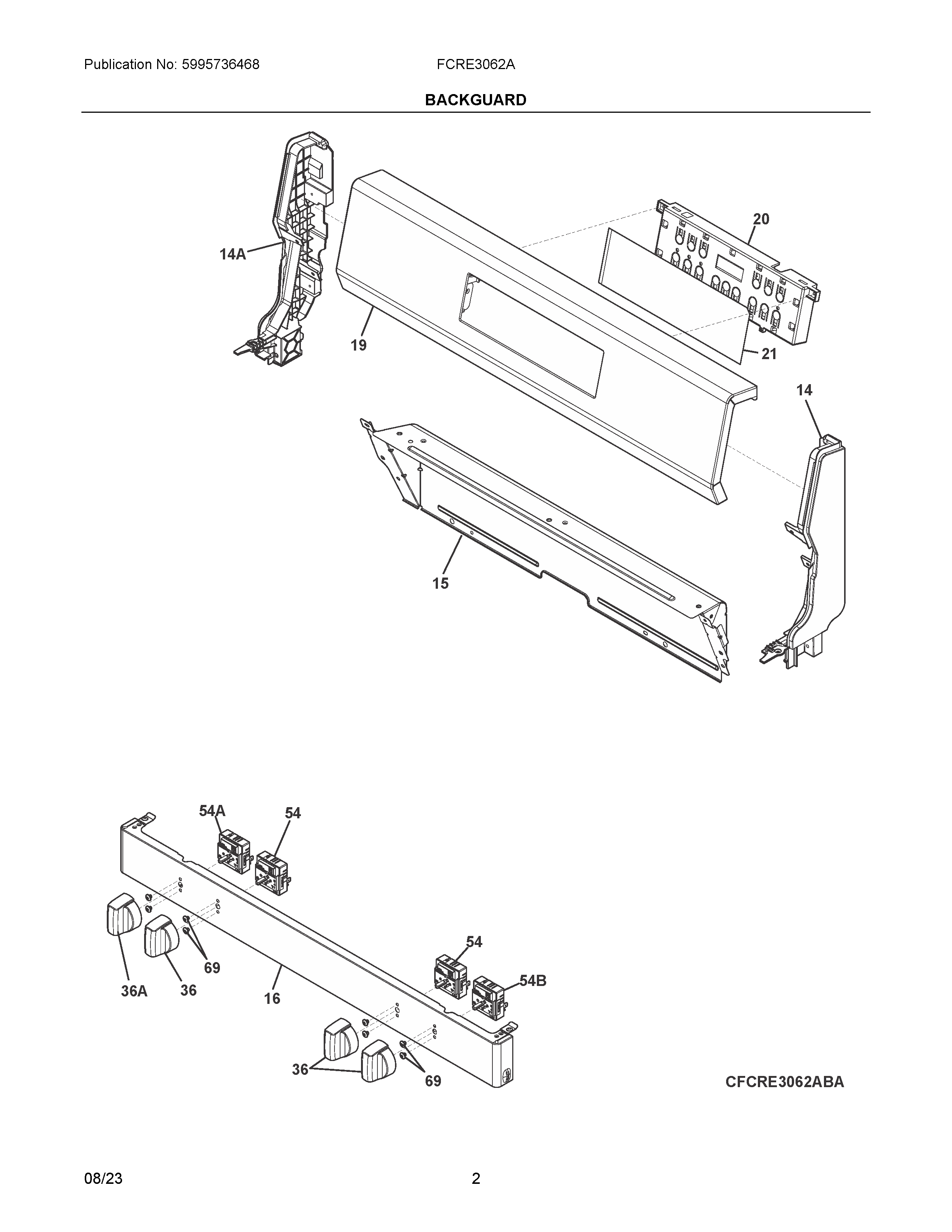

FCRE3062ABA 02 – BACKGUARD

FCRE3062ABA 02 – BACKGUARD

Written by

in

FCRE3062ABA 02 – BACKGUARD

Products

PositionProduct
NISCREW
NIHARNESS, WIRING, SWITCHES
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NI5304526234 Frigidaire Screw
NI5304526533 Frigidaire Screw
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, INNER
16MANIFOLD PANEL, BLACK
19PANEL, BACKGUARD, BLACK
205304536671 Frigidaire Control-Elec Oven
215304534821 Frigidaire Overlay
36A5304515468 Frigidaire Knob Assembly
36KNOB
54B5304522965 Frigidaire Switch Assembly
545304522966 Frigidaire Switch
54A5304522918 Frigidaire Oven Surface Element Switch
695304526494 Frigidaire Screw
