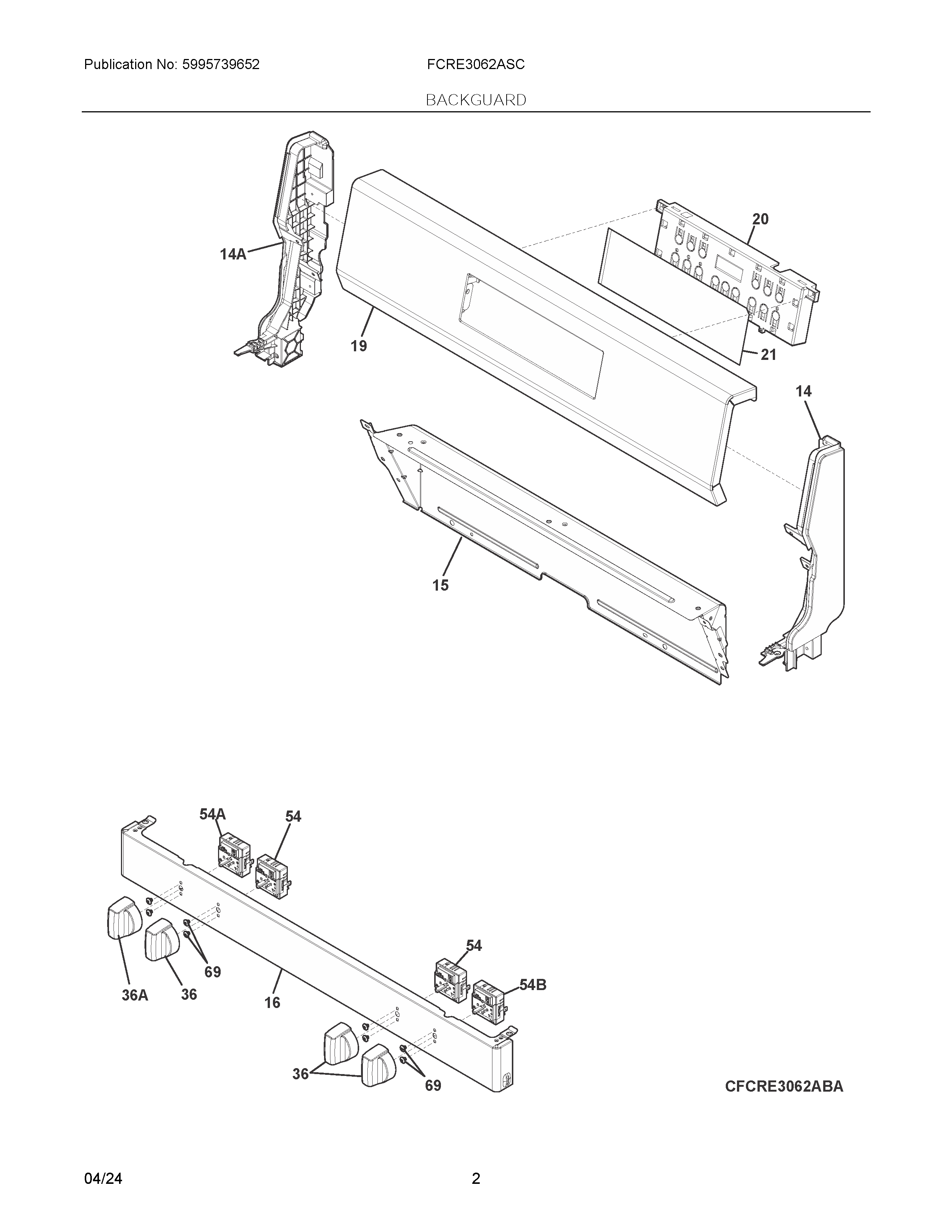

FCRE3062ASC 02 – BACKGUARD

FCRE3062ASC 02 – BACKGUARD

Written by

in

FCRE3062ASC 02 – BACKGUARD

Products

PositionProduct
NISCREW
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NIHARNESS, WIRING, SWITCHES
NI5304526234 Frigidaire Screw
NI5304526533 Frigidaire Screw
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, INNER
16MANIFOLD PANEL
195304535793 Frigidaire Panel
205304536671 Frigidaire Control-Elec Oven
215304534821 Frigidaire Overlay
365304528072 Frigidaire Knob Assembly
36A5304514117 Frigidaire Oven Control Knob
54B5304522965 Frigidaire Switch Assembly
545304522966 Frigidaire Switch
54A5304522918 Frigidaire Oven Surface Element Switch
695304526494 Frigidaire Screw
