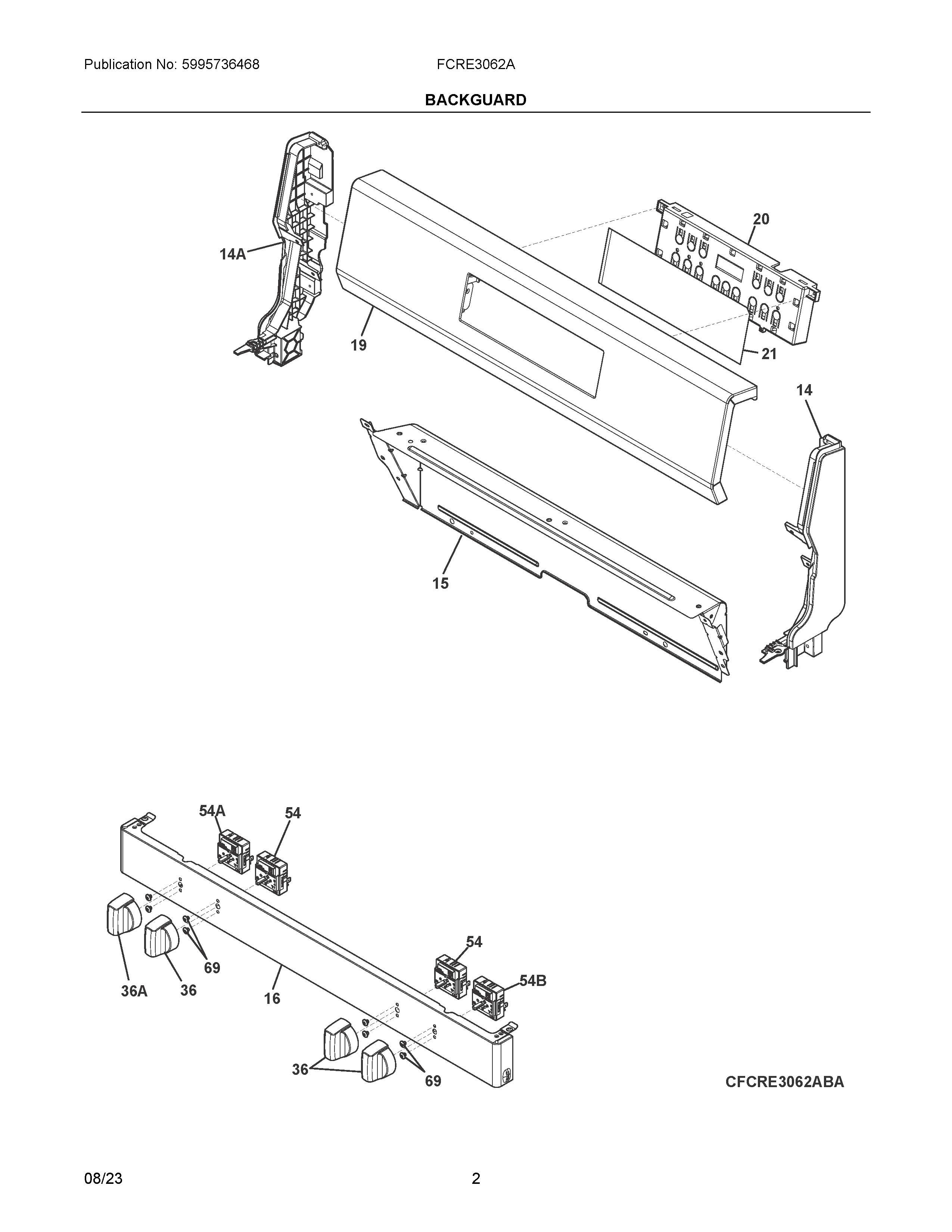

FCRE3062AWA 02 – BACKGUARD

FCRE3062AWA 02 – BACKGUARD

Written by

in

FCRE3062AWA 02 – BACKGUARD

Products

PositionProduct
NISCREW
NIHARNESS, WIRING, SWITCHES
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NI5304526234 Frigidaire Screw
NI5304526533 Frigidaire Screw
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
14A5304534818 Frigidaire End Cap Assembly
145304534817 Frigidaire End Cap
15SHIELD, BACKGUARD, INNER
16MANIFOLD PANEL
19PANEL, BACKGUARD, WHITE
205304536671 Frigidaire Control-Elec Oven
215304534821 Frigidaire Overlay
365304526250 Frigidaire Knob
36A5304515469 Frigidaire Knob-Infinite Switch
54B5304522965 Frigidaire Switch Assembly
545304522966 Frigidaire Switch
54A5304522918 Frigidaire Oven Surface Element Switch
695304526494 Frigidaire Screw
